Summary of Contents for Alcatel adixen ASD 2001

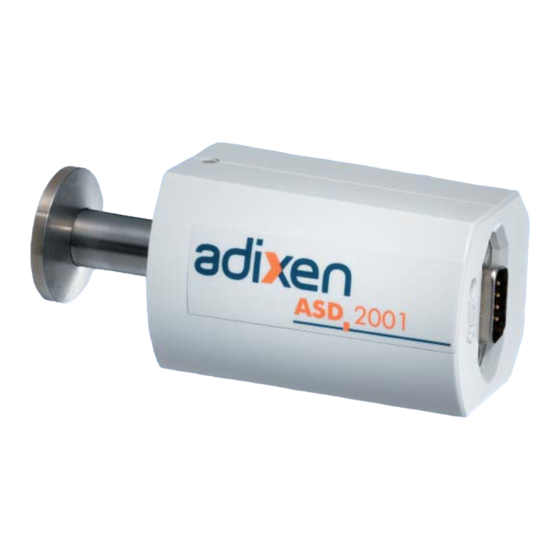

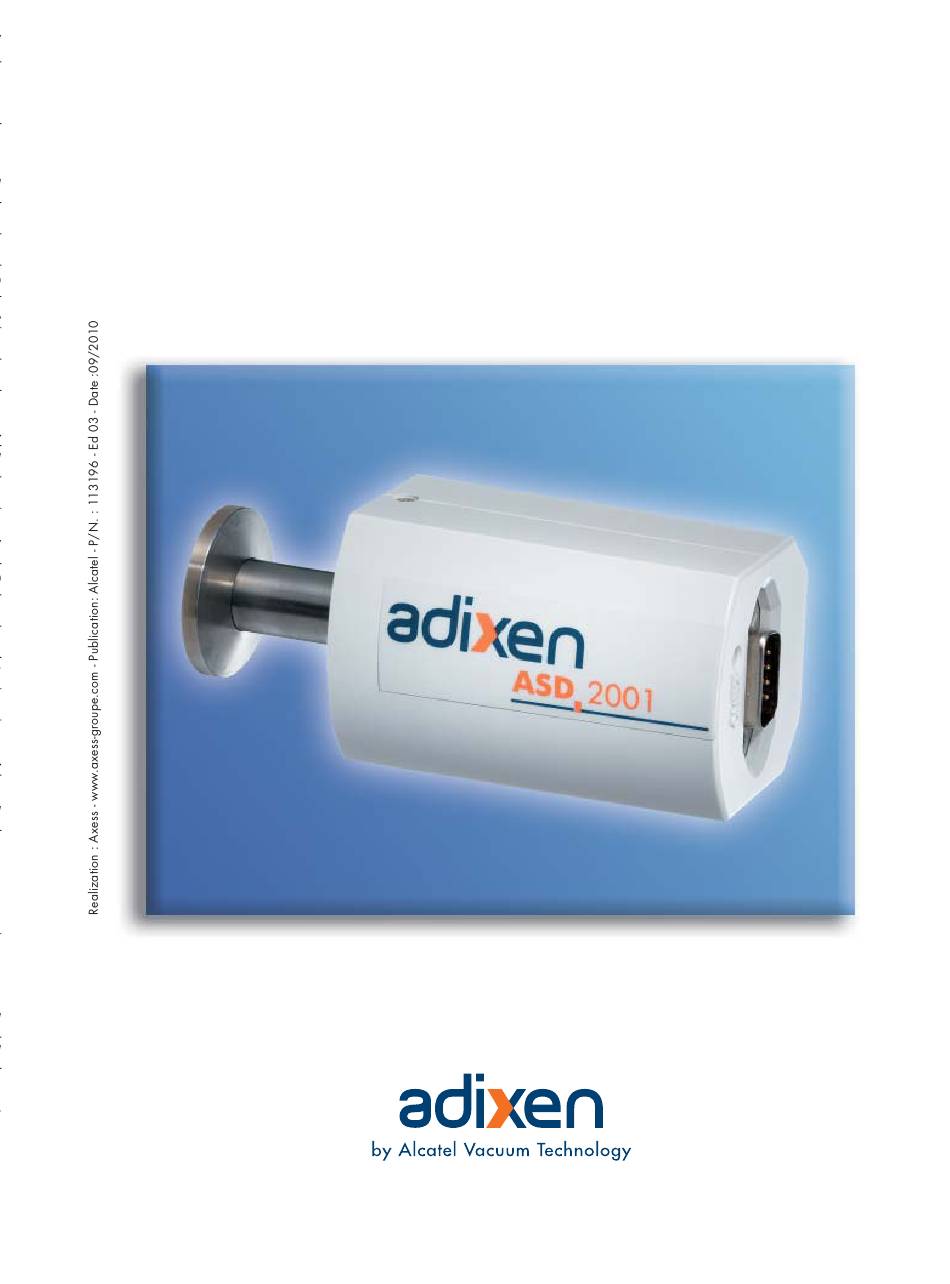

- Page 1 ASD 2003, ASD 2004 User’s Manual Alcatel Vacuum Technology France - 98, avenue de Brogny - BP 2069 - 74009 Annecy cedex - FRANCE Tel. (33) 4 50 65 77 77 - Fax. (33) 4 50 65 77 89 Web site: www.adixen.com...
-
Page 2: Table Of Contents
This type of warning is used to indicate an imminent risk that can cause serious injury or death if instructions are not followed. Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 1/15... -
Page 3: Safety
Do not use this gauge with corrosive gases and take special care with toxic gases, which can lead to gas leakage and cause injury. In case of doubt contact Adixen application support for recommendations. Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 2/15... -
Page 4: Responsibility And Warranty
- modifies this product in any way whatsoever, - uses the product with accessories not listed in the product documentation, Gauge failures due to contamination, as well as expendable parts (filament), are not covered by the warranty. Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 3/15... -
Page 5: Accessories
- Accessories Description 112752 Gauge cable length (5 m) Gauge cable length (10 m) 112753 Gauge cable length (20 m) 112754 114848 “D-Sub“ 9P (female) connector (for custom equipment connections) Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 4/15... -
Page 6: Technical Data
2.5 cm Recevable maximum pressure (DN16 ISOKF) 2 bars Materials exposed with vacuum SUS304, SUS316L, Glass, FPM, (ASD2001, 2002, 2003) SiO (ASD2004) (1) VCR is a trade mark of Swagelock Company Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 5/15... - Page 7 Install a circuit breaker on the power source. Disregarding these instructions can cause damage and/or injury. (1) ”D-Sub” 9P (female) connector is available to allow the gauge to be connected directly to customer equipment. ( 3 p. 4). Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 6/15...
-
Page 8: Gauge Installation
Install this gauge away from vibration. High vibration can cause the gauge to malfunction. Install this gauge away from drastic temperature changes (away from any heat sources or fans) for higher accuracy. Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 7/15... -
Page 9: Operation
Fault (see error catalog) zero adjustment faultl ( 6 p. 11) ZERO push button “k” zero adjustment LED status: ON - Slow blink - Quick fl ashing Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 8/15... - Page 10 1.333 Pressure P/FS Analog Signal U (V) When the gauge is powered on, it is necessary to wait at least 30 minutes to have a stable analog output signal. Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 9/15...
- Page 11 Press Release and hold Release the ZERO push button when the orange LED is still lit. If the switch is released when the LED is not orange, repeat the adjustment. Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 10/15...
-
Page 12: Gauge Removal
- Place a protective cap on the fitting to prevent foreign substances from entering the gauge. - If the gauge must be stored, we advise to keep it away from heat, moisture an dust ( 4 p. 5). Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 11/15... -
Page 13: Maintenance
V ≤ - 0.5 V able message gauge (*) =minor errors; degraded gauge performance Controller messages are just given as examples, they can be different depending on the given situation. Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 12/15... -
Page 14: Returning The Products
Products that are not clearly declared as “free of harmful substances“ are decontaminated at the expense of the customer. Products not accompanied by a duly completed “Safety Questionnaire“ are returned to the sender at his own expense. Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 13/15... -
Page 15: Decontamination And Product Recycling
Other components Such components must be separated according to their materials and recycled. Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 14/15... -
Page 16: Declaration Of Conformity
- Declaration of Conformity Alcatel Vacuum Technology France - User’s Manual ASD 2001/2002/2003/2004 15/15...
