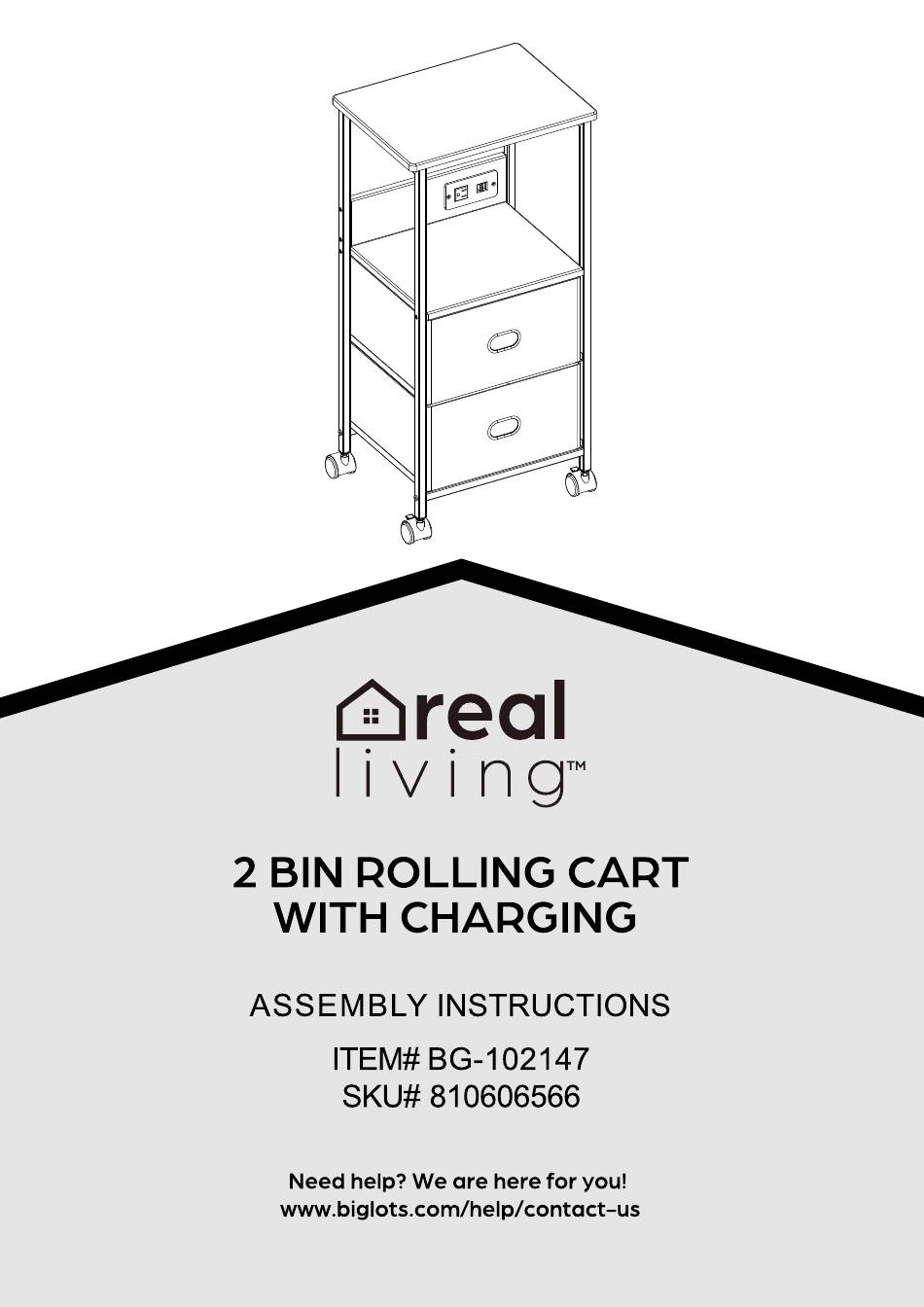

real living BG-102147 Assembly Instructions Manual

2 bin rolling cart with charging
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-102147 and is the answer not in the manual?

Questions and answers

Related Manuals for real living BG-102147

Summary of Contents for real living BG-102147

  • Page 2: Maintenance

    GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instruc�ons before star�ng Clear a flat covered space to assemble We recommend two people for assembly Note that hardware required is provided for every step Pay a�en�on to orienta�on Le�er of the part corresponds to a s�cker on the product Number of the hardware corresponds to its number in the package Helpful hints provided along the way MAINTENANCE:...

  • Page 3: Parts List

    PARTS LIST Left Frame Right Frame Cross Bar Top Panel Shelf Back Panel Charging Basket Basket Bottom HARDWARE LIST Allen Bolt Phillips Screw Phillips Screw Caster Caster with Brake Spring Washer Washer Phillips head screw Driver Allen Wrench Wrench...

  • Page 4: Helpful Hints

    HELPFUL HINTS • Separate parts before starting STEP 1 Attach Shelf (E) and Back Panel (F) to Left Frame (A) with Phillips Screw (2). Attach Cross Bar (C) to Left Frame (A) with Allen Bolt (1). Assembled View:...
  • Page 5 STEP 2 Attach Shelf (E) and Back Panel (F) to Right Frame (B) with Phillips Screw (2). Attach Cross Bar (C) to Right Frame (B) with Allen Bolt (1). Assembled View: STEP 3 Attach Left Frame (A) and Right Frame (B) to Top Panel (D) with Allen Bolt (1). Fully tighten all bolts and screws from steps 1 thru 3.
  • Page 6 STEP 4 Insert Caster (4), Spring Washer (6) and Washer (7) and Caster with Break (5), Spring Washer (6) and Washer (7) as shown into Left Frame (A) and Right Frame (B). Fully tighten Casters. Assembled View: STEP 5 Attach Charging (G) to Back Panel (F) with Phillips Screw (3). Fully tighten. Assembled View:...
  • Page 7 STEP 6 Unfold Basket (H) and place Basket Bottom (I) in. 2PCS Assembled View: STEP 7 Slide Assembled Baskets into Left Frame (A) and Right Frame (B). Assembly is now complete. Assembled View:...
  • Page 8 USB CHARGING STATION INSTALLATION INSTRUCTIONS Standards/Approval: UL/CUL cer�ficate// UL/CUL spill test//Commercial grade Voltage: AC 125V, 60Hz Current: 12 Amp Max USB Charging: DC 5V, 2.1A Cable Length: 6.73FT Cable Size: 3X16AWG Dimension(LXWXH): 4.33”X2.17”X1.57” CAUTION: To prevent the risk of fire and electric shock, please be sure to read all instruc�ons before installing or using this unit.
