Summary of Contents for iPort CONNECT PRO 72101

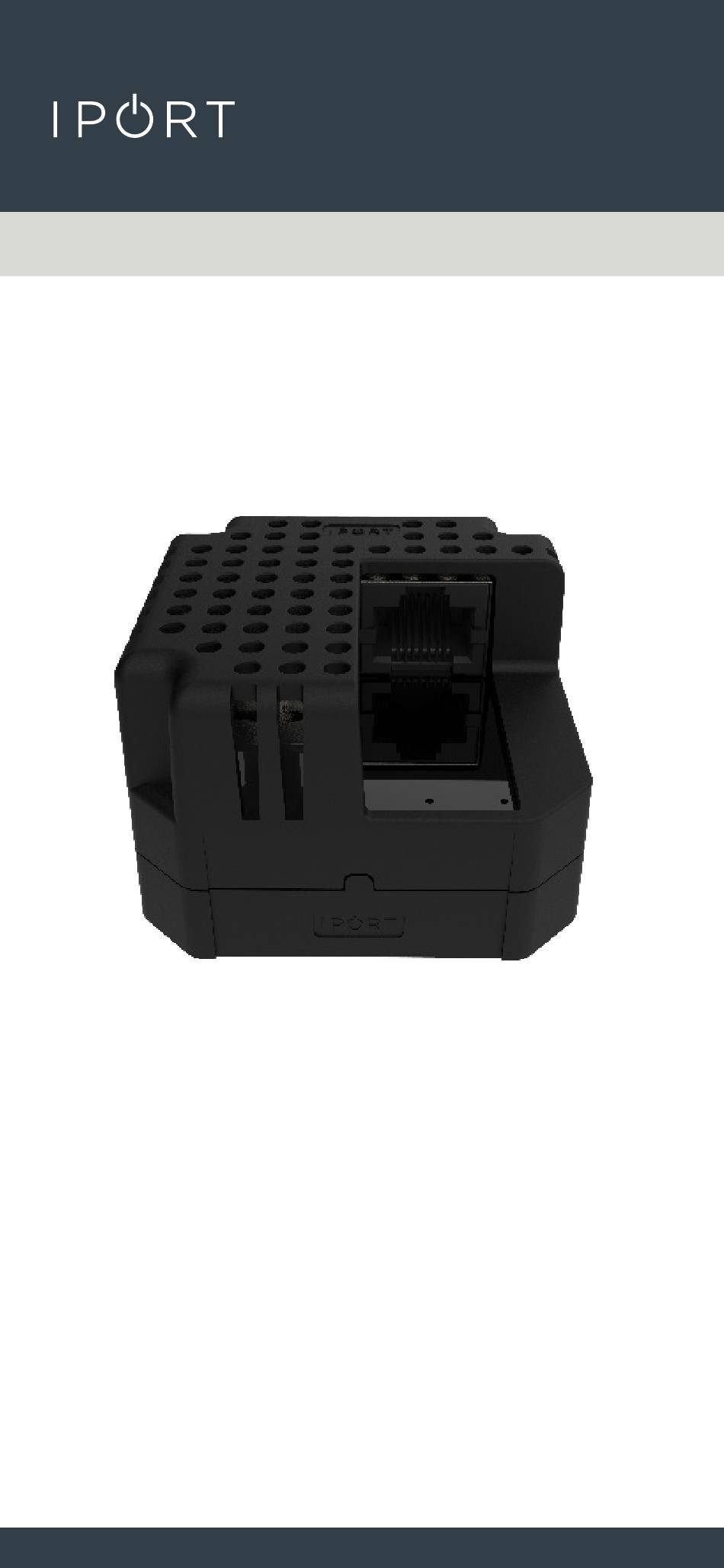

- Page 1 CONNECT NE TWO RK ADA PT ER 72101 - CONNECT Network Adapter...
- Page 2 NE TWO RK ADA PT ER IPORT CONNECT PRO BaseStation Install Manual Thank you for purchasing the all new IPORT CONNECT Platform. We hope you enjoy this revolutionary new system and if at any time you need more assistance please contact IPORT Tech Support via Online chat or through our help desk online.
- Page 3 NE TWO RK ADA PT ER Upgrading CONNECT PRO BaseStation Remove IPORT Network Adapter from the box and place on a table. Insert the IPORT Security Tool into the small holes in the back of the BaseStation foot. Rotate the tool counterclockwise until it stops.
- Page 4 CONNECT NE TWO RK ADA PT ER Tilt the BaseStation forward to allow the BaseStation weight to come out of the bottom of the BaseStation. Use caution as the BaseStation weight is very heavy.
- Page 5 CONNECT NE TWO RK ADA PT ER Disconnect the DC Barrel cable if installed and pop out the BaseStation Cable Housing cover.
- Page 6 CONNECT NE TWO RK ADA PT ER Lift the DC Board out of the BaseStation and flip over exposing the Molex connection cable.
- Page 7 CONNECT NE TWO RK ADA PT ER Gently remove the Molex connect from the DC board and set the DC board aside.
- Page 8 CONNECT NE TWO RK ADA PT ER Gently reinsert the Molex connector from the BaseStation into the Network Adapter.
- Page 9 CONNECT NE TWO RK ADA PT ER Insert your Cat 5 or 6 Cable into the Network adapter before installing the Network Adapter into the BaseStation.
- Page 10 CONNECT NE TWO RK ADA PT ER Install the PoE+ Network adapter insuring the Category cable is facing the back of the BaseStation...
- Page 11 CONNECT NE TWO RK ADA PT ER 10. Run your category Cable through the cable housing and attach the cable housing to the BaseStation..
- Page 12 CONNECT NE TWO RK ADA PT ER 11. Run the category cable in the cable retention channel and rotate the cable retention clip over the category Cable.
- Page 13 NE TWO RK ADA PT ER 12. Reassemble the BaseStation back onto the BaseStation Weight and tighten the Security Screws rotating clockwise. 13. Connect the other end of the Cat 5 Cable to a PoE+ Switch or an IPORT PoE Injector 72106 (sold separate).
- Page 14 CONNECT NE TWO RK ADA PT ER Upgrading CONNECT PRO WallStation Remove IPORT Network Adapter from the box and place on a table. Remove the WallStation from the packaging, firmly pull the DC Board, one side at a time, to detach the DC from the back of the Wall Station.
- Page 15 CONNECT NE TWO RK ADA PT ER Flip over the DC Board exposing the Molex connection cable. Gently re move the Molex connect from the DC board and set the DC board aside.
- Page 16 CONNECT NE TWO RK ADA PT ER Gently reinsert the Molex connector from the WallStation into the Network Adapter.
- Page 17 Cat 5 or 6 cable powered by a PoE+ Switch or an IPORT PoE+ Injector (72106) at the head end of the category cable Refer to the install manual of the IPORT CONNECT PRO WallStation for further WallStation installation instructions. www.iportproducts.com...
