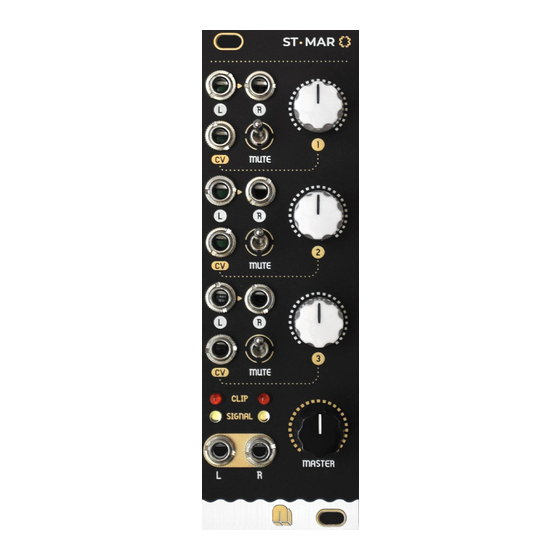

Summary of Contents for NANO ST-MAR
- Page 1 ST·MAR Quick guide...
- Page 2 Once you have checked all the connections, you can turn on your modular system. If you notice any anomalies, turn your system off right away and check again your connections. ST·MAR NANO Modules - València 2023 ©...
- Page 3 Stereo mixers are particularly valuable when working with Eurorack setups that feature stereo sound sources, like effects processors or stereo filters. ST·MAR NANO Modules - València 2023 ©...
- Page 4 Mute Selector Level Indicators Shows the strength of the output signals (L and R) and whether clipping occurs. Master Control Stereo Outputs Adjust the overall volume of the sum of the 3 channels. ST·MAR NANO Modules - València 2023 ©...
- Page 5 • Control Voltage Adjust the Volume externally using the CV input. Fig.4 Detail of CV Input Envelopes, LFOs, random voltages… throw whatever you want into it. 0V = -inf gain 5V = max gain (0dB) ST·MAR NANO Modules - València 2023 ©...
- Page 6 Watch in real time how the output voltages are behaving before the master volume control in the built-in LEDs CLIP shows whether clipping occurs. SIGNAL shows the strength of the output signals (L and R). Fig.7 Detail of LED Indicators ST·MAR NANO Modules - València 2023 ©...
- Page 7 EN 61000-3-3. Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems. • EN 62311. Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields. • RoHS2: 2011/65/EU • WEEE: 2012/19/EU ST·MAR NANO Modules - València 2023 ©...
- Page 8 • This guarantee covers Any defect in the manufacturing of this product. Replacement or repair, as decided by NANO Modules. • This guarantee does not cover Any damage or malfunction caused by incorrect use , such as, but not limited to: Power cables connected backwards.
