WIS4200/WIS4300 (WIS4x00) Quick Start Guide

Location

For optimal performance with a particular access point, the WIS4x00 should be located
between 3-6 feet from the access point. The unit
may be mounted on a wall, ceiling or above the
ceiling.

Wall Mounting

Download a full-size printable version of the
template and instructions from
http://support.wyebot.com/help/Wyebot-WIS4x00-
wallmount-template.pdf

Suspended Ceiling Mount

Select the pair of ceiling rail clips which match the
width of your ceilings T-bar rails. The provided
clips support both 9/16" and 15/16" ceiling rails.
Using the two 8mm lock screws provided, attach the respective clips to the bottom of the

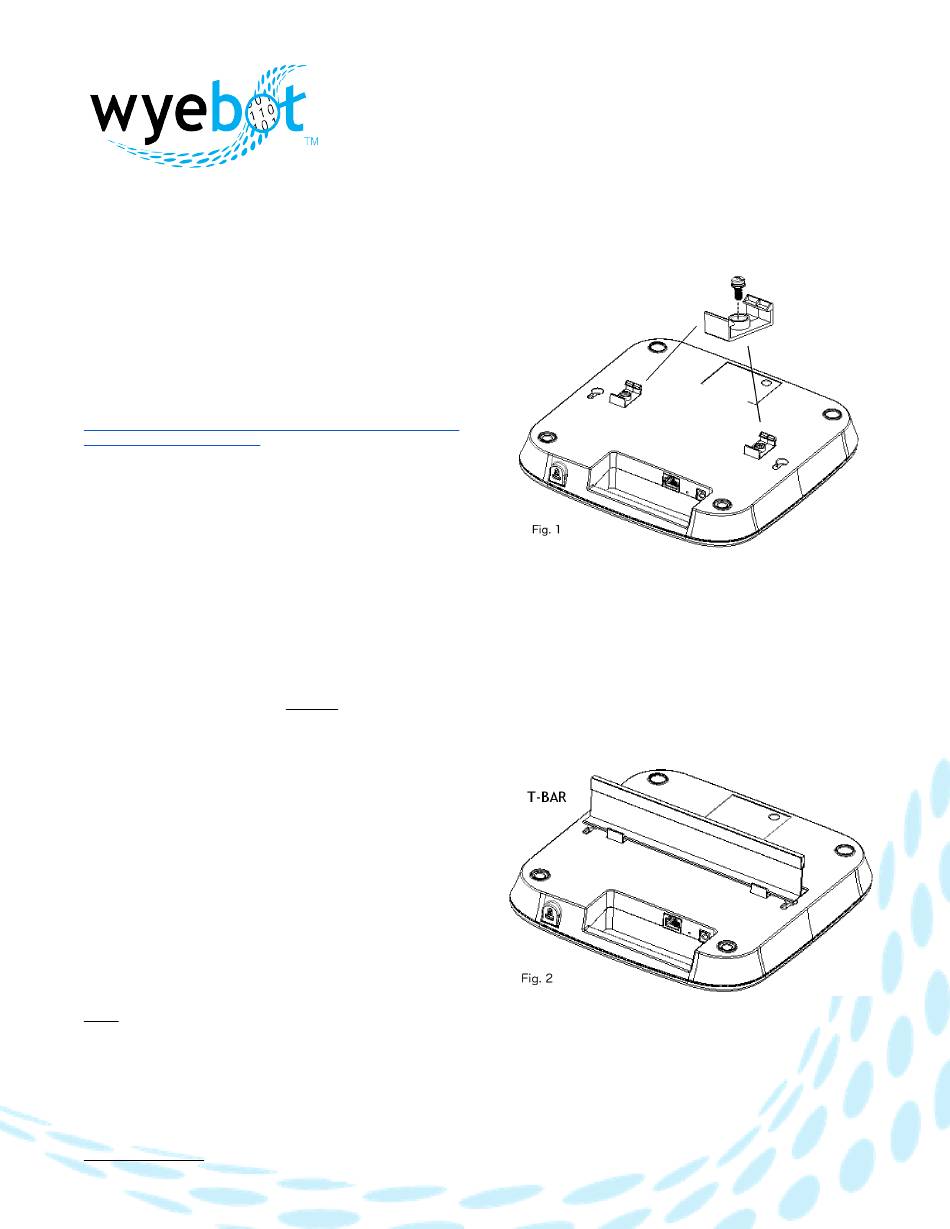

WIS4x00. Ensure clips are aligned with the indented areas on the bottom of the WIS4x00 (See
Fig. 1).
Attach the WIS4x00 to a secure ceiling rail by attaching one clip at a time to the rail (See Fig. 2).
Verify the WIS4x00 fits securely on the ceiling tile rail for the most secure mounting.
NOTE: the included wall anchors are NOT
suitable for use in a drywall ceiling. Toggle
bolts or other anchors intended for ceilings
and capable of supporting 5lbs or more should
be purchased separately.

Above Ceiling (Plenum Space)

The WIS4x00 is suitable for use in
environmental air space in accordance with
Section 300-22(C) of the National Electrical
Code. Use above a suspended ceiling is
permitted in a horizontal mounting position
only. The optimal orientation of the unit is with
the top cover (logo) facing down toward the floor. Avoid placing the unit near electrical wiring
or ductwork in order to reduce the impact these items may have on RF signals.
