Summary of Contents for DB Research OKUR E5 HLC6

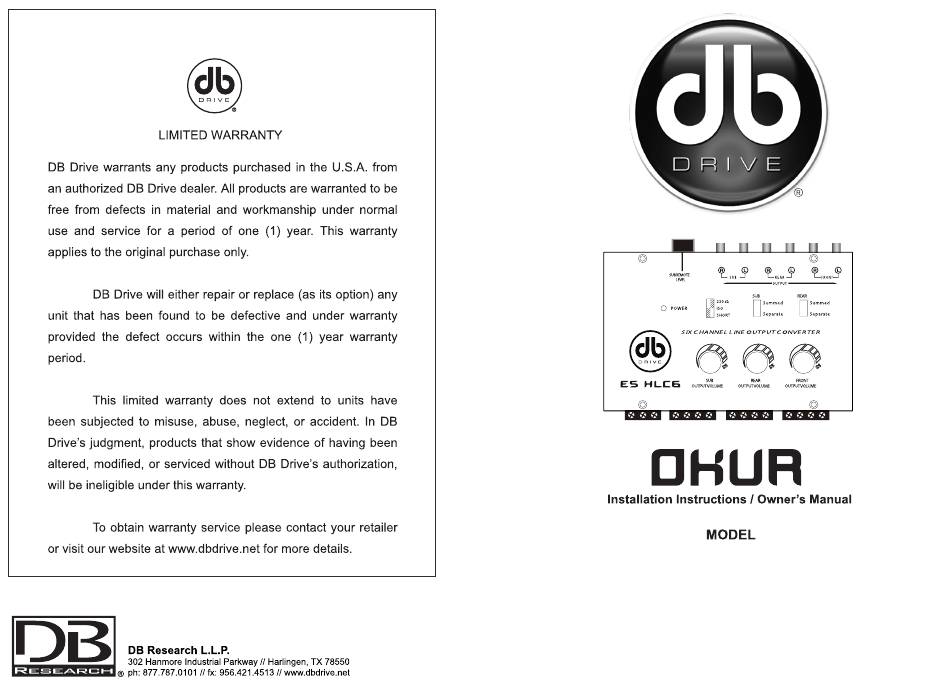

- Page 1 E5 HLC6 6 Channel Line Output Converter...
- Page 2 We would like to congratulate you on your purchase of the E5 HLC6; a 6 channel, high-performance line output converter. The E5 HLC6 will accept two, four, or six channels of Speaker-level signal from a factory-installed ampli er or Source unit and convert it into a high-quality, low-noise pre-amp signal.
- Page 3 FRONT PANEL CONTROLS ELECTRICAL INSTALLATION RCA Connectors Rear AMPLIF I ER Speakers Factory Installed Radio SUB REMOTE REAR FRONT LEVEL OUTPUT REAR Summed Summed POWER Separate Separate SHORT SI X C H AN N EL L I N E O U T PU T C ON V ERT ER Front REAR FRONT...
- Page 4 BLOCK DIAGRAM SPECIFICATIONS All specifications are measured at 14.4VDC >Maximum speaker-level input 60 watts @ 4 ohm >Maximum output level 9.5 V rms >Output gain +/-12dB >Frequency response 10Hz-25kHz >T otal harmonic distortion 0.01% >Input Impedance 180 ohms >Power supply PWM switching >Power draw 200 mA...
