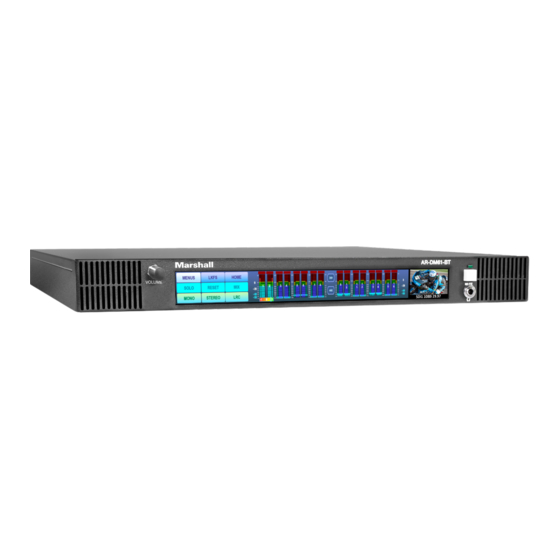

- Page 1 B r o a d c a s t A / V D i v i s i o n AR-DM61-BT Multichannel Digital Audio Monitor User Manual [Firmware Version 0.43]...
-
Page 2: Table Of Contents
AR-DM61-BT Manual Table of Contents 1. Features 2. Package Contents 3. Quick Start Guide 4. Short Cut Buttons Introduction 5. Audio Metering Features The Marshall AR-DM61 audio monitor rack has an advanced design with the ability to 6. Video Display Features adapt to future needs. -
Page 3: Features
AR-DM61-BT Manual 1. Features 3. Quick Start Guide Touch Screen Convenience and Flexibility Powering up - Once power is initially applied, please allow approximately 30 seconds for the unit to become functional. When the unit is ready for operation, the audio bars will display. You should •... - Page 4 AR-DM61-BT Manual After selecting the desired monitoring mode, simply tap the BUTTON below the displayed audio MADI and Dante modes support up to 64 audio channels. All 64 can be displayed at once as seen in bars to select channel or channels to monitor. In the example below, STEREO mode has been the figure below.
-
Page 5: Short Cut Buttons
AR-DM61-BT Manual 4. Short Cut Buttons 5. Audio Metering Features The Short Cut Buttons are the group of 9 buttons Over Range Level to the left side of the display. The figure below shows them in their most common configuration. Peak Levels on Sides HOME –... -
Page 6: Video Display Features
AR-DM61-BT Manual 7. System Settings Selecting Channels to be Monitored – Tap on the arrow symbols “>>>” to select different channels to monitor. Standard Display Press Here for High Precision Horizontal Bar Use Arrows to Scroll to Other Channels The MENUS button provides access to Source Selection as mentioned previously. Smaller buttons at the bottom of the screen provide access to System Settings. -
Page 7: Options (Dolby® & Dante®)
AR-DM61-BT Manual 8. Options • Names – For example, “IN 1” can be changed to “STUDIO 1”. NOTE: At this time, name changes may only be made through the browser interface. Dolby® • Display Brightness – Select this choice to adjust the front panel display brightness. Slide the The AR-DM61-BT is compatible with the Dolby CAT 1100 decoder card and may be ordered installed dot left or right to change the level. -
Page 8: Network Control - Initial Setup
AR-DM61-BT Manual Dante® 9. Network Browser Control - Initial Setup The AR-DM61-BT may be configured for 16, 32 or 64 channels of Dante audio. Ideally, this option Network control of the AR-DM61 should be ordered at the time of purchase. While Dante support may be added at a later date, the Deep configuration of the AR-DM61 is available via Ethernet using a standard Internet browser. -
Page 9: Network Control - Operation
AR-DM61-BT Manual Functions: • Naming – Allows custom names for sources. For example: Change the default name “IN 1” to Separate mixes are created for each input source. The MIX created on this page is heard ONLY “STUDIO 1” or “SERVER 5”, etc. when the MIX button on the front of the AR-DM61 is pressed. - Page 10 AR-DM61-BT Manual IP Setup This page offers two choices depending on the “slide switch” at the bottom. When the switch is set to DHCP, you will see the image on the left. When it is set to Fixed, you will see the image on the right.
- Page 11 AR-DM61-BT Manual Touchscreen Calibration ARDM Status This function is rarely needed. When the AR-DM61 is mounted at an angle or in a hard-to-reach This page is used to monitor the AR-DM61 internal operating Voltages and Temperatures. Operating location relative to the operator, the buttons may appear to not match the location that is being peak and average voltages and currents are displayed.
-
Page 12: Dimensions
AR-DM61-BT Manual Firmware Upgrade 11. Dimensions To upgrade the AR-DM61, first obtain an update file from the Marshall Electronics website here: Update files are currently not posted on the website. Please contact your Marshall Electronics representative for the latest firmware. Save this file to your computer then click on the Choose Files button (see below) and browse your computer for the update file and select it. -
Page 13: Specifications
AR-DM61-BT Manual 12. Specifications 13. Connector Details AES/EBU Input / Output Connector Model Name AR-DM61 Technical Video Input Connections 2 x 3G SDI with looping output Video Formats Supported SDI up to 1080p50, 59.94,60 SDI Embedded 16 channels (two inputs) Analog 8 channels balanced via 25-pin DSub (Tascam format) Audio Input Connections AES 8 channels digital via 25-pin DSub (Tascam format) -
Page 14: Warranty
Warranty For Warranty information please refer to Marshall website page: https://marshall-usa.com/company/warranty.php 20608 Madrona Avenue, Torrance, CA 90503 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.marshall-usa.com support@marshall-usa.com V.1.0...
