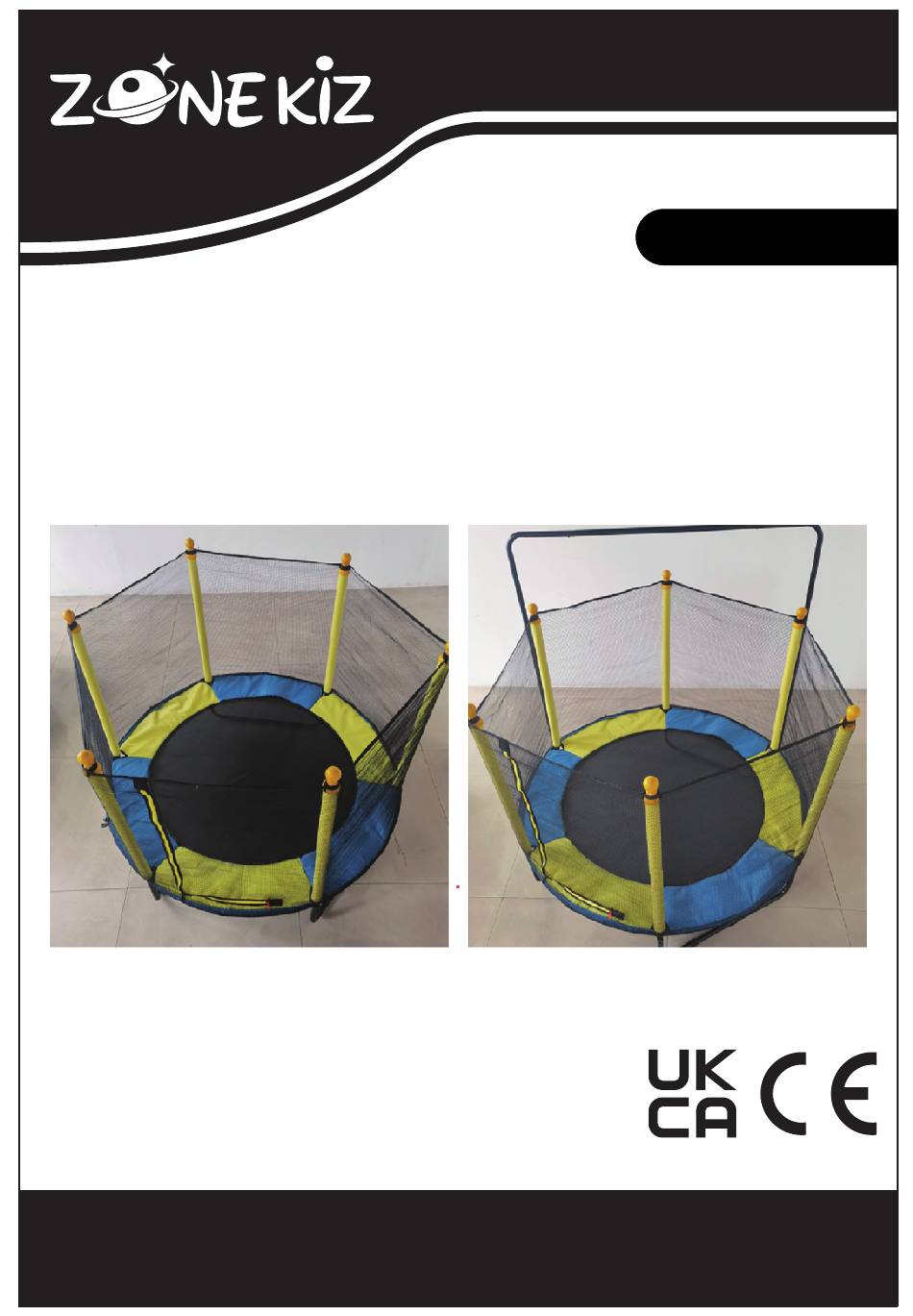

- Page 1 INfkc006_UK 342-066V00 Kids Trampoline IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY UESR’S MANUAL...
- Page 2 Precaution * Maximum load: 50kg. * Only for ages 3-6 years. Children must be under adult supervision. * Only one child can use this product at a time. * Ensure children jump near the centre of the trampoline. * Before using, please take off glasses, necklaces, watches and other valuable accessories to avoid damages.
- Page 3 Parts List If any parts are missing, deformed or damaged when you receive your package, please contact customer service with your order number and we will ship the replacement parts to you as soon as possible.
- Page 4 Assembly method Step 1: Assemble the trampoline bed Step 1: Assemble the trampoline bed Prepare six frame tubes. Connect six frame tubes one by one to form a ring, as shown. When connecting the last two frame tubes, press firmly. When the loops are formed, the joints may not coincide completely - do not worry.
- Page 5 Assembly method Step 3: Assemble the trampoline mat Prepare the mat (picture 3) and thirty elastic jump ropes (picture 4) – thread the elastic rope through the holes on the edge of the mat. Then thread the bungee cord through the bottom frame tube and secure the cord with the bungee ball. The spring ball is fixed under the frame tube.
- Page 6 Assembly method Step 5: Install the pole and plastic sheath Before installation, prepare 6 support tubes (parts in Figure 10). After confirming the upper and lower ends of the pole, place the end with the hole corresponding to the position of the hole on the bed, install the pole, and fix it with screws. Press the plastic sheath into the hole in the head of the pole and fix it with screws.
- Page 7 Assembly method If with grab bars, find the following accessories: Type O screw*4 Wrench*1 Nut washer*4 Handrail vertical rod*2 Handrail L rods*2 Handrail crossbar*1 Fix the O-type screw into the hole of the leg. Put the upright rod into the position of the three-shaped screw and plastic according to the angle shown in the figure.
