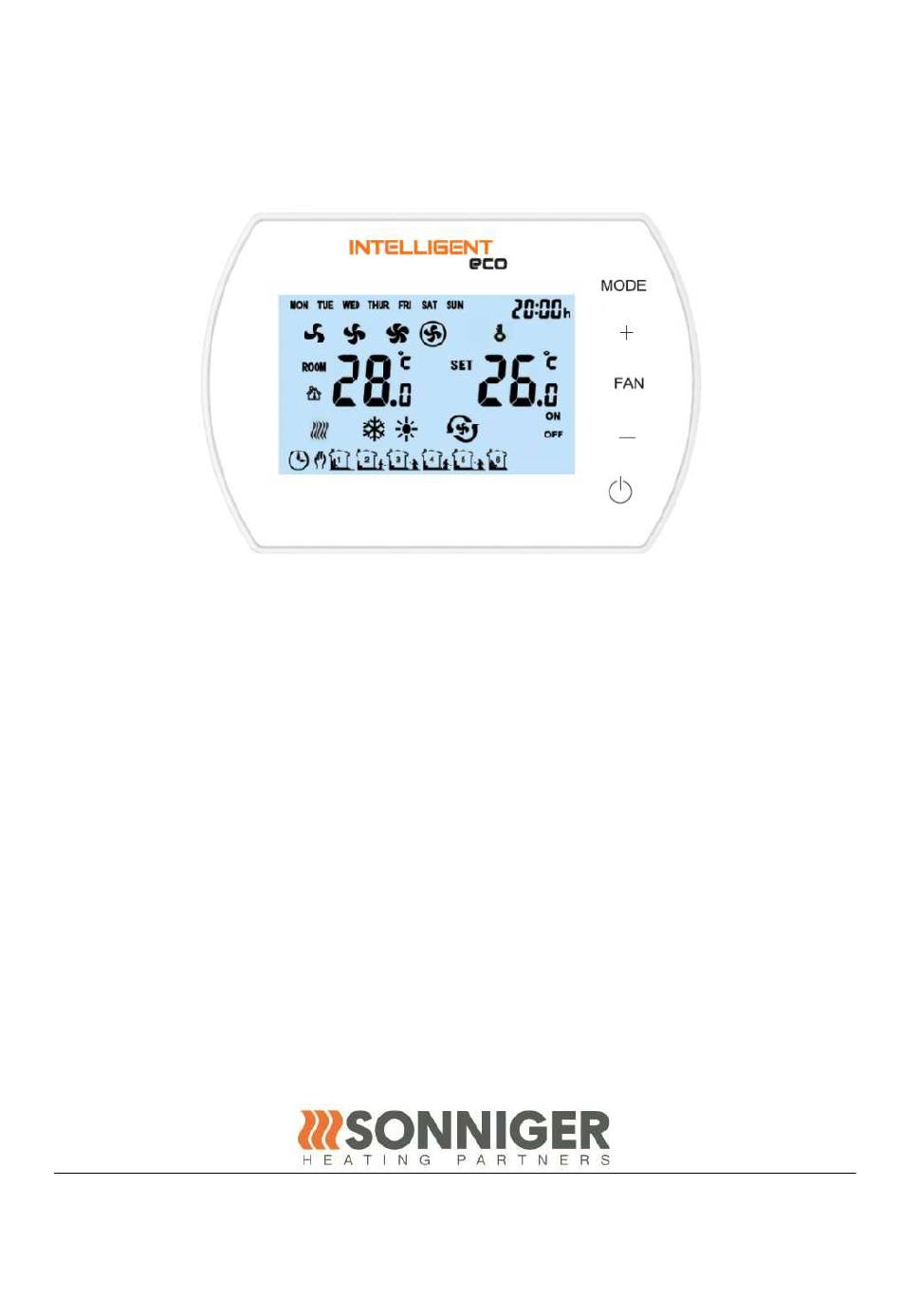

INTELLIGENT Control Panel Manual v202205
INTELLIGENT controller manual
SONNIGER S.A.
ul. Śląska 35/37, 81-310 Gdynia, Poland, infolinia 801 055 155, tel. + 48 58 785 34 80, www.sonniger.com
Sąd Rejonowy Gdańsk-Północ, VIII Wydział Gospodarczy Krajowego Rejestru Sądowego,
KRS 0000966611, NIP 586 227 35 14,Regon 22154369 kapitał zakładowy: 1.655.000 PLN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INTELLIGENT eco and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sonniger INTELLIGENT eco

  • Page 1 INTELLIGENT controller manual SONNIGER S.A. ul. Śląska 35/37, 81-310 Gdynia, Poland, infolinia 801 055 155, tel. + 48 58 785 34 80, www.sonniger.com Sąd Rejonowy Gdańsk-Północ, VIII Wydział Gospodarczy Krajowego Rejestru Sądowego, KRS 0000966611, NIP 586 227 35 14,Regon 22154369 kapitał zakładowy: 1.655.000 PLN...

  • Page 2: Specifications

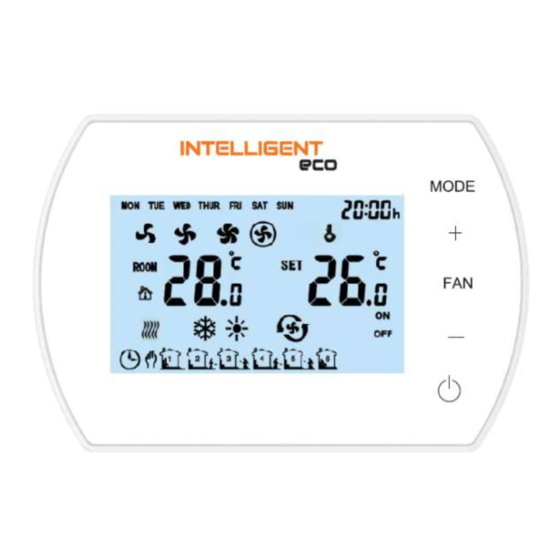

    INTELLIGENT Control Panel Manual v202205 PURPOSE The INTELLIGENT panel is designed to control the operation of water heaters and air curtains. The controller pilots the functioning of actuators/valves and fan speed of the heater in manual and automatic modes depending on the set room temperature. The fan gear automatically changes to a lower one when reaching the set temperature in the room.

  • Page 3: Parameter Settings

    INTELLIGENT Control Panel Manual v202205 6. fan speed 15. operation according to schedule 7. room temperature 16. manual operation 8. set temperature 17. schedule operation interval 9. cooling operation mode 18. antifreeze mode 10. operation mode heating 19. ventilation mode 11.

  • Page 4: Bms Communication

    INTELLIGENT Control Panel Manual v202205 IMPORTANT! If a problem with the temperature sensor occurs, an error message will be displayed: E0. 4.2. BUTTON LOCK To LOCK all buttons, press the + then - button and hold both for 5 seconds. To UNLOCK all buttons press the + then - button and hold both for 5 seconds.

  • Page 5: Electrical Connection Scheme

    INTELLIGENT Control Panel Manual v202205 SETUP Remove the lid from the control panel. Screw into a flat surface. Attach the control panel to the bolted lid. ELECTRICAL CONNECTION SCHEME IMPORTANT!  Remember to unplug the control panel before the installation. The control panel shall be mounted 1,5m above the floor in a location with good air circulation.
  • Page 6 INTELLIGENT Control Panel Manual v202205 The TUYA SMART mobile app The Tuya Smart application allows to create and modify settings of the INTELLIGENT panel with any smartphone using an Adroid/iOS software. The application may be downloaded via the QR Code presented below. 8.1.

  • Page 7: Basic Functions

    INTELLIGENT Control Panel Manual v202205 8.2. BASIC FUNCTIONS Scheduled work Manual work mode Chosen tem- perature Room tempera- ture Decrease the chosen Increase the chosen temperature temperature Actual mode Actual fan speed Fan speed ON/OFF Mode 8.3. CREATING A GROUP OF CONTROL PANELS In Tuya Smart choose the paired control panel then select the symbol next to the controller’s name.

  • Page 8: Schedule Setup

    INTELLIGENT Control Panel Manual v202205 8.4. SCHEDULE SETUP When launching Tuya Smart, select the group of control panels for which we want to create the Schedule On the parameter screen, pick the knob icon, after that press „title”. A list of time schedules to customize will appear on the screen.
  • Page 9 INTELLIGENT Control Panel Manual v202205 Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 …… Numbers of The First Re- The First Re- The N The N Thermostat CRC- CRC- 0x03 Response sponse Reg- sponse Regis- …… sponse Reg- sponse Reg- address Data...
  • Page 10 INTELLIGENT Control Panel Manual v202205 Bit 25 Time Setting(optional)：Weekday 01~07 （BCD Code） Bit 26 000DH Bit 27 C1,C2 :0-C1 1-C2 Bit 28 000EH Bit 29 Fan Speed setting: 1-Low Speed 2- Medium Speed 3- Hi Speed 4- Auto Bit 30 000FH Bit 31 Working Modes: 00 Auto Mode 01 Manual Mode 10 Temporary Manual Mode...
