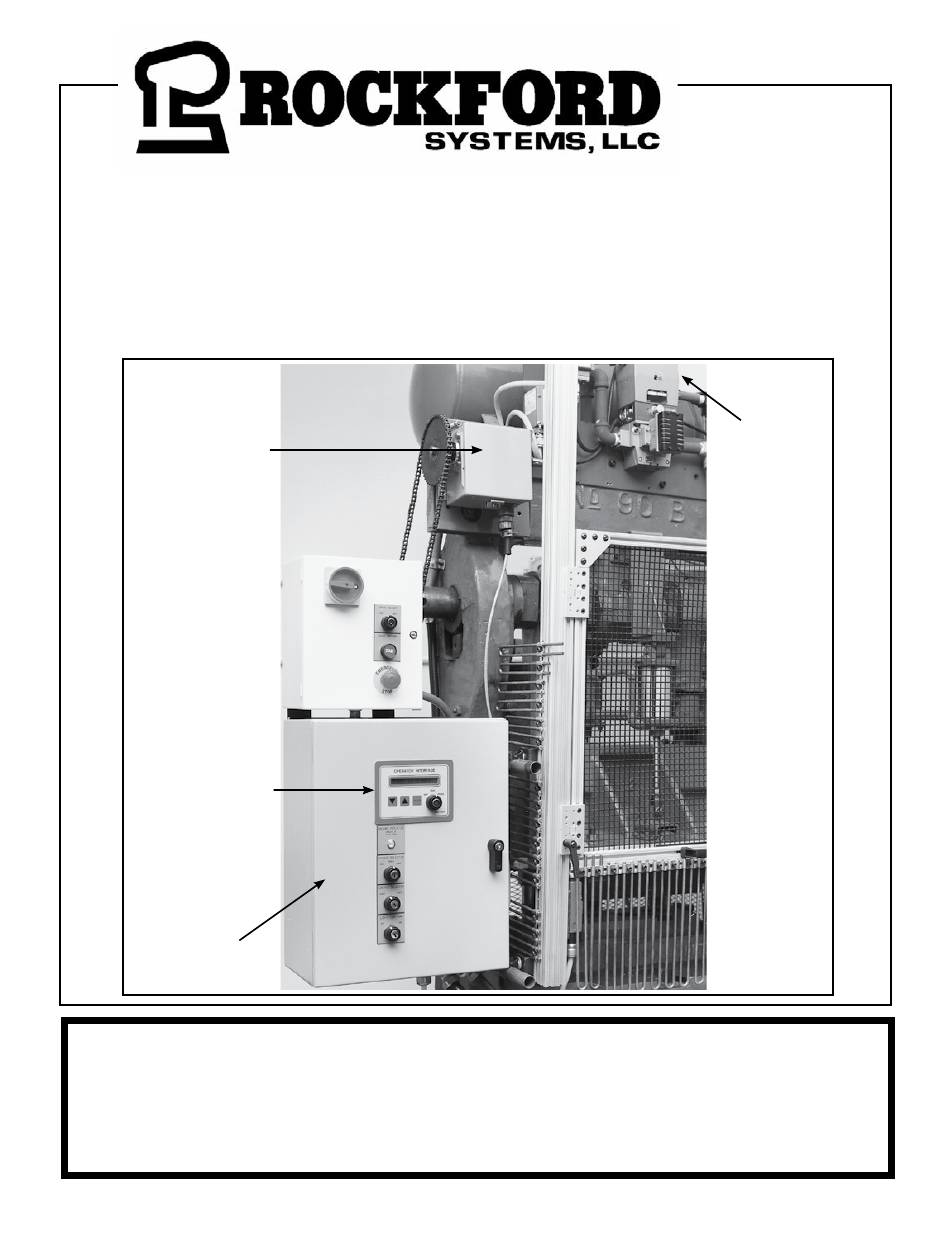

INSTALLATION MANUAL FOR
SSC-1000 CONTROL SYSTEMS ON
PART REVOLUTION CLUTCH MACHINES
Opti-Cam and DC
Tachometer Generator

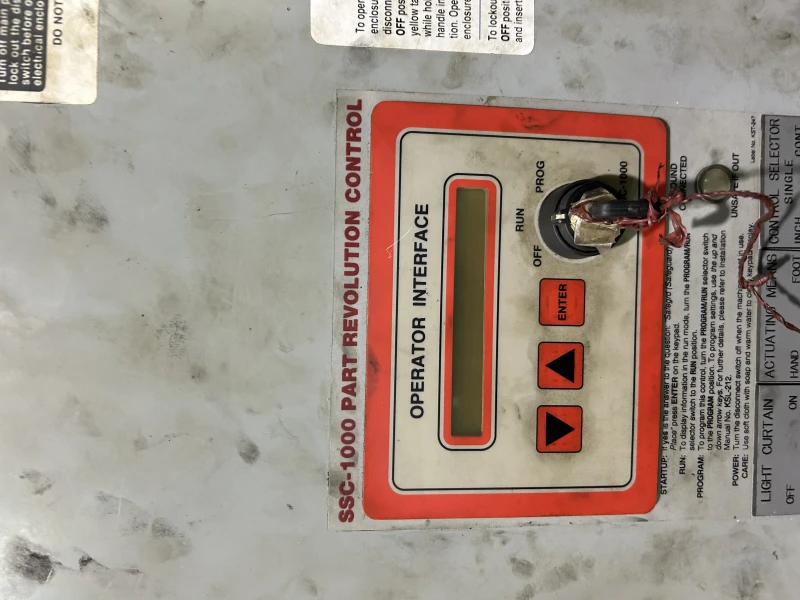

Operator Interface
Keypad/Display
SSC-1000
Control Box
IMPORTANT: PLEASE REVIEW THIS ENTIRE PUBLICATION
BEFORE INSTALLING, OPERATING OR MAINTAINING THE
SOLID-STATE CLUTCH/BRAKE CONTROL SYSTEM.
