Instruction manual
Thank you for choosing Sunfab

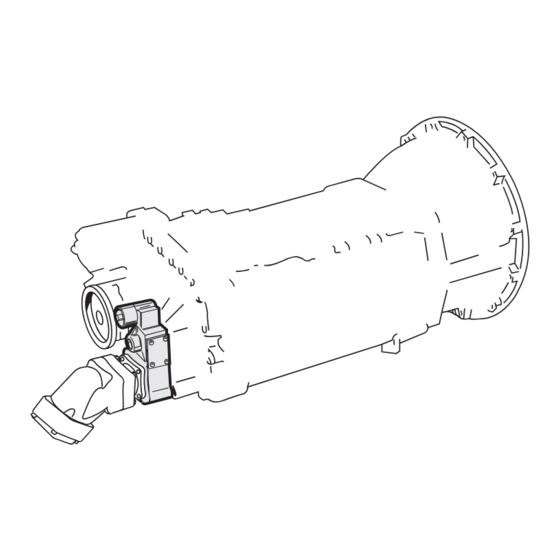

You have chosen SCPD 56/26, a dual flow pump with the
highest displacement-to-size-ratio on the market. It can
effectively be directly mounted on gear boxes equipped with
engageable and disengageable power take-offs. Compact
design and easy installation makes SCPD 56/26 one of the
mainstays for powerful, trouble free hydraulic systems.
Power Take-Off
• Pump mounting: Spline shaft DIN 5462 / ISO 14.
Mounting flange ISO 7653-D.
• It must be possible to disengage the power take off to
prevent overspeed when the hydraulic system is not in
use.
• The output speed of the power take off must not exceed
the pump's max speed.
• The permitted torque output on the power take off must
be higher than the pump's shaft torque at maximum
pressure.
• The power take off's direction of rotation must cor-
respond with the selected pump, which is supplied in
left-hand (L) or right-hand (R) designs.
NOTE! The cover must not be turned to change the direc-
tion of rotation.
Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.com
PUMP SCPD 56/26 DIN
Remember
A trouble-free hydraulic system is created using selected
components and correct installation. Consequently, follow
the instructions in this manual, which includes checking the
power take off, tank design, hose dimensions, installation and
Start Up. Failure to carry out the manufacturer's installation
conditions will invalidate the warranty.
L
EN
200/200 bar
178 + 83 = 261 Nm
300/300 bar
267 + 124 = 391 Nm
400/400 bar
356 + 165 = 521 Nm
R
7012EN1603 REV 1.3 1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCPD 56/26 DIN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunfab SCPD 56/26 DIN

Summary of Contents for Sunfab SCPD 56/26 DIN

  • Page 1 (L) or right-hand (R) designs. NOTE! The cover must not be turned to change the direc- tion of rotation. 7012EN1603 REV 1.3 1/8 Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.com...
  • Page 2 Return hose 32 mm (1¼”) 38 mm (1½”) Pressure hose 19 mm (¾””) 19 mm (¾”) 7012EN3 REV 1.3 Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.com...
  • Page 3 Highest recommended operating temperature 20-10 cSt. NOTE! The diagram concerns hydraulic oil with viscosity index VI ≈ 180 7012EN3 REV 1.3 Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.com...
  • Page 4 A good rule is to change the air filter at the same time. the filter functions. 7012EN3 REV 1.3 Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.com...
  • Page 5 7012EN3 REV 1.3 Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.com...
  • Page 6 If oil leakage has occurred via a damaged shaft seal, ensure that no hydraulic oil has entered the gearbox! 7012EN3 REV 1.3 Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.com...
  • Page 7 3108GB1502 1.1 - Printed: 19/11/2015 16:03:14 - Page 3/4 Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.com Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.com...
  • Page 8 Sunfab reserves the right to make changes in design and dimensions without notice. Printing and typesetting errors reserved. © Copyright 2015 Sunfab Hydraulics AB. All Rights Reserved. 7012EN3 REV 1.3 Sunfab Hydraulics AB, Box 1094, SE-824 12 Hudiksvall, Sweden. Tel: +46 650-367 00, Fax: +46 650-367 27, E-mail: sunfab@sunfab.se Web: www.sunfab.com...
