SDI FC-250-10P Operating Manual

Low noise frequency converter

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

PECTRA

YNAMICS

FC-250-10P

LOW NOISE FREQUENCY CONVERTER

OPERATING MANUAL

SPECTRADYNAMICS, INC • 1849 Cherry St. Unit 2 • Louisville, CO 80027

Phone: (303) 665-1852

• Fax: (303) 604-6088

www.spectradynamics.com

Table of Contents

Need help?

Do you have a question about the FC-250-10P and is the answer not in the manual?

Questions and answers

Summary of Contents for SDI FC-250-10P

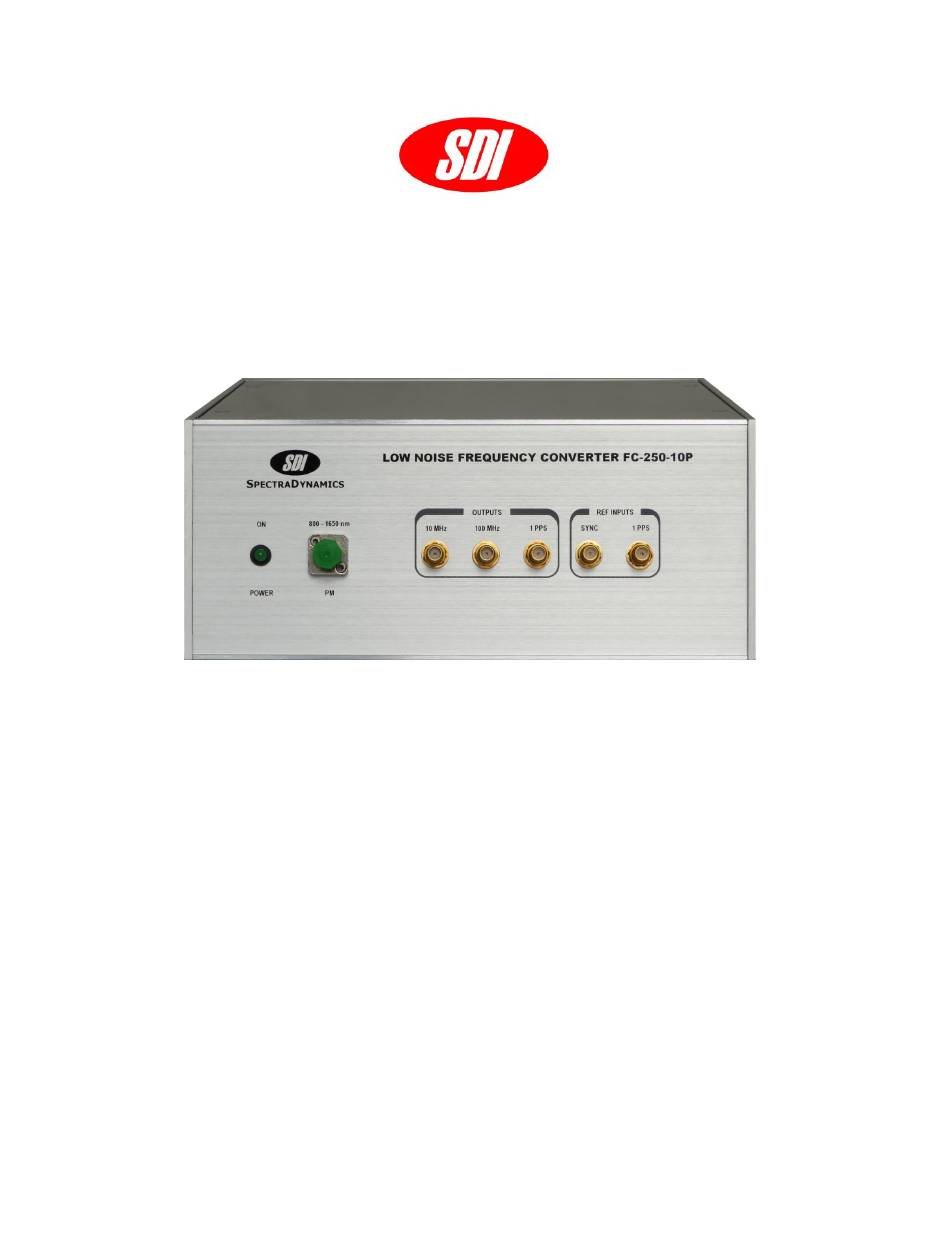

Page 1 PECTRA YNAMICS FC-250-10P LOW NOISE FREQUENCY CONVERTER OPERATING MANUAL SPECTRADYNAMICS, INC • 1849 Cherry St. Unit 2 • Louisville, CO 80027 Phone: (303) 665-1852 • Fax: (303) 604-6088 www.spectradynamics.com...
Page 3: Table Of Contents
Contents Introduction ……………………………………………………………………..1 Safety and preparation for use ………………………………..……….…….. 2 2.1 Electrical ……………….…………………………………………….……. 2 2.2 Instrument ……..…………….………………………………….….…….. 3 Front panel description …….…………………………………………….…… 4 Back panel description ………………………………………………….……. 5 Installation ……………………………………………………………….…….. 6 Operation ……………………………………………………………………… Troubleshooting ………………………………………………………………. 8 Specifications …………………………………………………………………. 9 Warranty and service …………………………………………………………...
Page 5: Introduction
1.0 Introduction The FC-250-10P is a Low Noise Frequency Converter for Optical to RF Signals. This instrument can be used to generate low noise 10 MHz, 100 MHz and 1PPS signals that derive their phase noise and stability from an external 800-1650 nm pulsed optical signal with a repetition rate of 250 MHz.
Page 6: Safety And Preparation For Use
2.0 Safety and Preparation for Use The FC-250-10P was designed for indoor use only and is not intended for operation outdoors or in a wet environment. Inspect the instrument and power cords for damage before first use. 2.1 Electrical Safety and Preparation for Use Voltages capable of causing injury or death are present in this instrument.
Page 7: Instrument
2.0 Safety and Preparation for Use 2.1 Instrument safety and preparation for use The FC-250-10P contains a sensitive photodiode. The steps below must be followed to ensure reliable operation. 1. Apply AC power to the FC-250-10P. 2. Apply optical power.
Page 8: Front Panel Description
3.0 Front Panel Description ON Power LED The Power LED turns on when AC power is applied to unit. 800 - 1650 nm Connector Apply a 800 to 1650 nm pulsed optical signal with a repetition rate of 250 MHz to this connector.
Page 9: Back Panel Description
4.0 Back Panel Description AC Power The FC-250-10P is configured to operate on 100 to 240 VAC. Page 5...
Page 10: Installation
2U, half rack enclosure. Connecting Power The FC-250-10P ships with a standard North American, European, or Chinese IEC power cord. Locate the AC POWER entry module on the rear of the enclosure and connect the power cord.
Page 11: Operation
6.0 Operation Plug the power cord into an appropriate AC power outlet. Once AC power is supplied to the FC-250-10P the LED on the front panel labeled POWER will turn on. After the AC power has been applied, an optical signal may be applied to the input fiber optic connector.
Page 12: Troubleshooting
Disconnect the power cord and remove the top cover. Check the main AC power fuse and power cord. If the fuse is blown replace with same type and rating. Please contact SDI if the fuse blows again or if the event that caused the fuse to blow is not known.
Page 13: Specifications
8.0 Specifications PARAMETER CONDITIONS UNITS 10 MHz output level 100 MHz output level Stability of 10 MHz Output Pair Measurement 1 e-14 2 e-14 Temperature Stability @10 MHz, 20-50 °C ps/K @100MHz, 20-50 °C Residual Phase Noise 1 Hz -142 -138 dBc/Hz 10 MHz Output...
Page 14 8.0 Specifications Other Specifications Rackmount chassis 2U H, 8.37” W, 10” D (88.1 X 212.6 X 254 mm) Unit weight 5 lb (2.3 kg) AC Input Voltage Range 100 to 240 VAC, 22 W, 47 to 63 Hz Storage temperature -10 to +75 ºC Operation environment 0 to +50 ºC...
Page 15: Warranty And Service
SDI’s option, any product not meeting the said specifications. This warranty shall be in effect for one (1) year from the date a FC-250-10P is sold by SDI. SDI makes no other warranty, express or implied, and makes no warranty of the fitness for any particular purpose.
