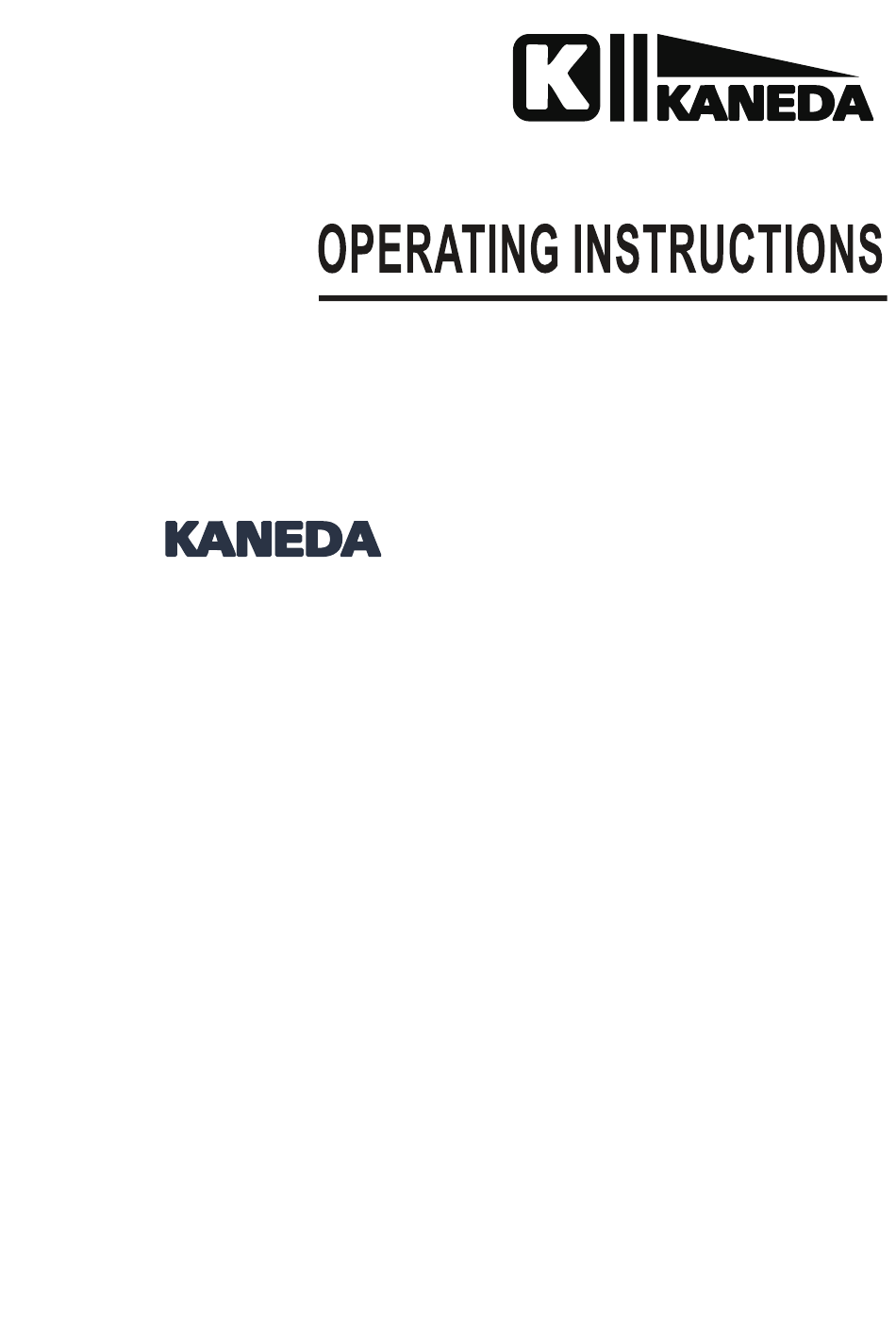

- Page 1 Window type Air Conditioner Models: KA-W072M KA-W092M KA-W122M KA-W182M KA-W242M...
-
Page 2: Table Of Contents
CONTENTS Thank you for choosing KANEDA air conditioner. Our design is based on the best efficiency and the lowest noise operation and it can keep the room comfortable. Please read this operating manual carefully before operating the unit and keep it for consultation. -
Page 3: Precautions
Precautions Warning Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The air conditioner should be installed in accordance with national wiring regulation. Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock. -
Page 4: Operating Condition
Operating Condition Please operate air conditioner in the correct conditions as following. DRY mode operation COOL mode operation Outdoor temperature should be in range of 18℃ Outdoor temperature should be in range of 18℃ to 43℃ to 43℃ , otherwise it is possible for air conditioner otherwise it is possible for air conditioner to breakdown. -
Page 5: Installation
Installation Installation precaution: Window type conditioner is so valuable and the improper installa- tion of it will cause a lot of damage! Please asso ciate the profes- sional technician to install the unit and don’t install it by yourself. Otherwise, we are not responsible for the damage like this. Location: The condensation water must be drained away conveniently. - Page 6 Installation procedure: Horizontal line 1) Remove the sticker from the front panel. 2) Put the unit into the installation hole. When installing the unit, it should be slanted down to the back to avoid the enlargement of noise or vibration. (Slant between 6-10mm. ) Sh own at right fi gure.) The installation place should be strong enough to avoid the enlargement of noise or vibration.
- Page 7 Drain water To get the maximum cooling efficiency, the air conditioner is designed to splash the condensation water on the condenser coil. To the cooling only unit, If the splashing sound annoys you, you can provide an outside drain by using the follo -wing procedure, whichmay however cause a small loss of performance.
-
Page 8: Notes For Installation
All The dectrical work must be done according to the local wiring regulations. Shall be installed in the cirrcuit of miniature circuit switch and it has a capacity of 10A (KA-W072M, KA-W092M, KA-W122M), 16A (KA-W182M) or 25A (KA-W242M). -
Page 9: Part Identification
Part identification Panel outlook picture, just for reference, please take the real until as standard. Cabinet Air inlet louver Front grille Front intake grille Air filter Control panel (behind the front intake grille) Air direction adjustment Vertical airflo w direction vane (Airfl o w direction adjustment up and down). -
Page 10: Main Switch Operation Procedure
Main switch operation procedure 1.Main Control Knob Set to Low Cool, Med Cool or High Cool as desired (FAN setting operates the fan only.) CAUTION: If the main control knob is turned off of changed to a fan setting from a cooling operation setting. WAIT at least 3 minutes before resetting to cooling operation. -
Page 11: Operation Tips
Operation Tips Operation for comfort and economy Do not overcool the room Keep blind or curtains closed . Keep the room temp. uniform. temperature. This is not good Do not let sunshine enter the Adjust the vertical and horizon- for health and wastes electricity. room directly when the air con- tal airflow direction to ensure a dition is in operation. -
Page 12: Caution
Caution Operations for safety and health 1) The plug must be accessible after the appliance is positioned. 2) Do not use this appliance in the laundry. 3) If the power cord is damaged, it must be replaced by the manufacture or its service agent in void of hazard. Do not pull out the power cord. -
Page 13: Care And Maintenance
Care and maintenance Always turn off the air conditioner and main power supply before cleaning to ensure safety. Cleaning unit 1. Cut power off before cleaning. Air filter The air filter behind the intake grille should be washed at Plug out only after least once every two weeks or as often as it needs cleaning. -
Page 14: Trouble Shooting Guide
Trouble shooting guide Please check the following items before asking for repair,it saves your time and money. Fault phenomenon Trouble-shooting * Is there a power failure? * Is the plug out? Air conditioner dose not s power fuse or switch off ? operate at all. -
Page 15: After Service
Immediately stop all operations and plug out, please contact your dealerin the following situations. *Operation starts or stops abnormally; *Power fuse or switch often breaks; *Carelessly splash water or something into air conditioner; *Electrical lines are much hot or lines cover breaks; *Other strange situations. - Page 16 66139903898...
