Summary of Contents for ADJ LTS-2

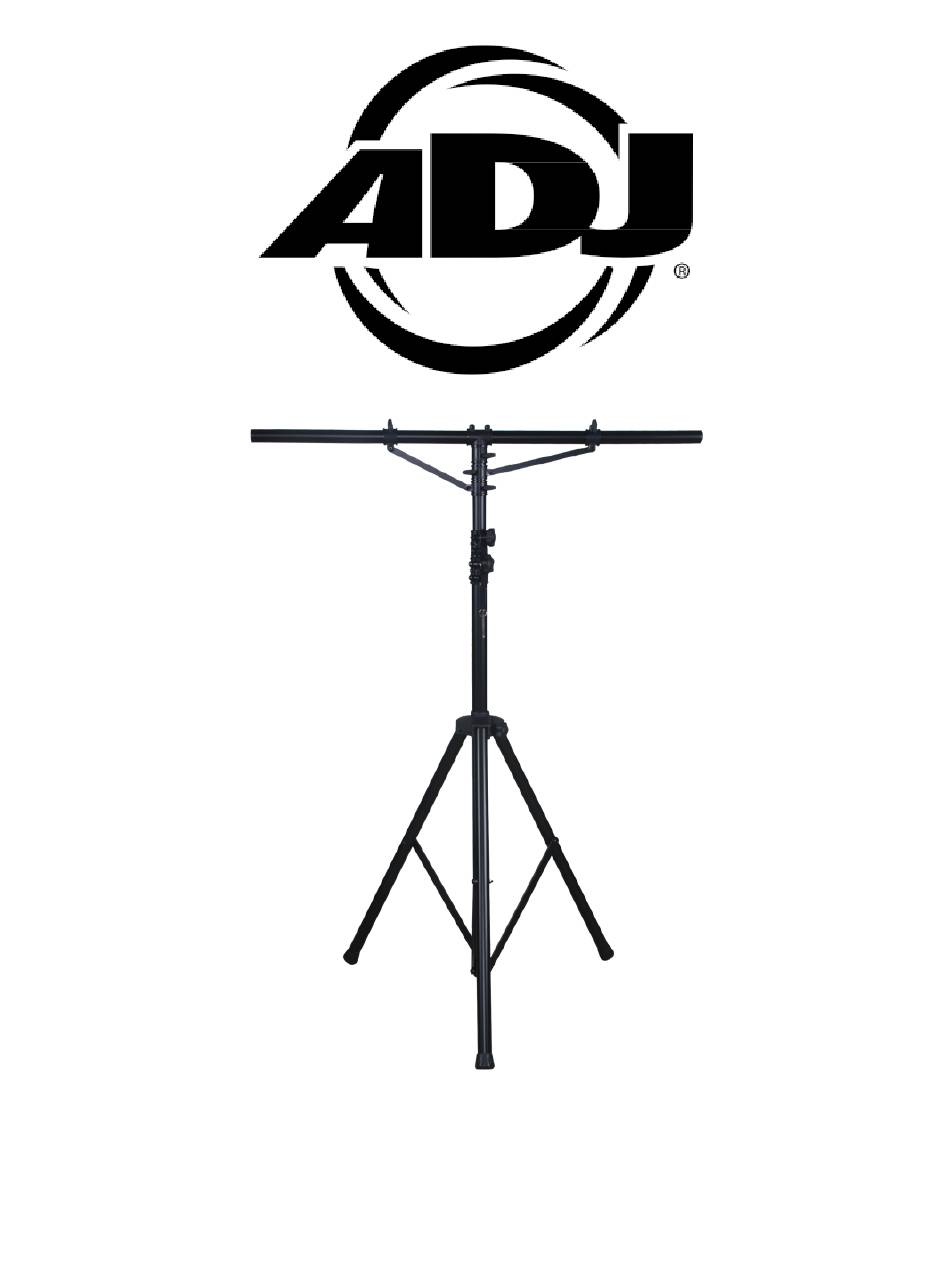

- Page 1 LTS-2 user manual...
- Page 2 ADJ PRODUCTS LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Instructions and Guidelines Overview Installation Instructions Trouble Shooting Tips Frequently Asked Questions Technical Specifications... -
Page 4: General Information
You may obtain a R.A. number by contacting customer support. CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Please visit forums.adj.com with questions, comments or suggestions. -
Page 5: Limited Warranty (Usa Only)
ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product. -
Page 6: Safety Instructions And Guidelines
To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS LLC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation. - Page 7 S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE DEVICES TO RAIN AND/OR MOISTURE! WHEN USING STAND OUTISDE UNDER STRONG WIND, TAKE APPROPRIATE MEASURES TO PREVENT IT FROM FALLING DOWN! TIGHTEN EACH KNOB AND BOLT SECURELY!
-
Page 8: Overview
O V E R V I E W INCLUDED ITEMS (1) LTS-2 (1) T-BAR (2) Support Bar 1. Knob A 5. Stay 9. Inlet Pipe 2. Knob B 6. Leg 10. Support Bar 3. Knob C 7. Outer Pipe 11. T-Bar 4. -
Page 9: Installation Instructions
I N S T A L L A T I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep stand minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. DO NOT INSTALL/HANG DEVICES ON STAND IF YOU ARE NOT QUALIFIED TO DO SO! AVOID INSTALLING OR MOUNTING THE STAND IN UNSTABLE LOCATIONS, SUCH AS AN UNEVEN SURFACE OR MOVING TABLE. - Page 10 I N S T A L L A T I O N I N S T R U C T I O N S (continued) SETUP Loosen Knob D by turning it counter clockwise. Spread the legs by pulling up on the outer pipe until the stays extend horizontally.
- Page 11 MOUNTING THE T-BAR The stand comes with a T-Bar for mounting optional lighting and other equipment. To install the T-Bar, vertically align the Support Bars with the T-Bar connection. Lower the T-Bar onto the inner pipe and tighten Knob A to secure T-Bar to stand. MOUNTING OPTIONAL LIGHTING AND OTHER ACCESSORIES Lighting and other optional accessories may be mounted to the T-Bar.
-
Page 12: Trouble Shooting Tips
The maximum height of the stand is 128” (3,250 mm) 5. Are additional stands, clamps or accessories available? Yes. A variety of stands and accessories are available at www.adj.com. O P T I O N A L A C C E S S O R I E S... -
Page 13: Technical Specifications
T E C H N I C A L S P E C I F I C A T I O N S Total Height Range: 47.2” (1450 mm) to 128” (3,250 mm) Recommended maximum height: 128” (3,250 mm) Weight capacity: 132.3 lbs. (60 kg) Inner Pipe Diameter: 1.5”...
