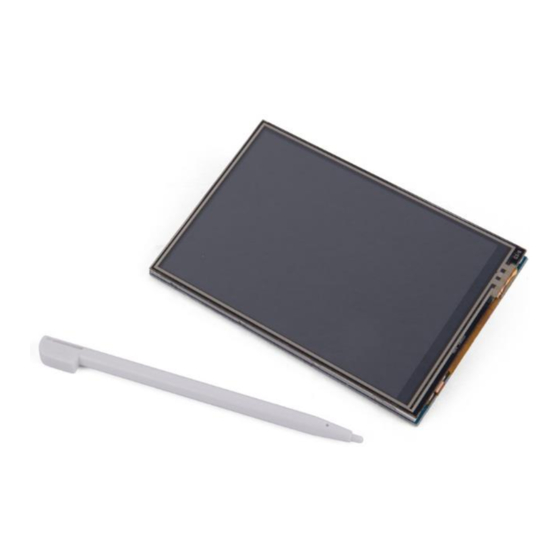

- Page 1 MAKEVMP400 3.5" 320 x 480 TOUCHSCREEN FOR RASPBERRY PI ® (ILI9341) USER MANUAL...
-
Page 2: Safety Instructions
MAKEVMP400 USER MANUAL Introduction To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. -
Page 3: Pin Layout
MAKEVMP400 Overview resolution ......................320 x 480 LCD type ........................TFT LCD interface ........................ SPI touch screen type ....................resistive backlight ........................LED aspect ratio ........................8.5 Pin Layout pin no. symbol description 1, 17 3.3 V power positive (3.3 V power input) - Page 4 MAKEVMP400 1. Format the SD card. Open SDFormatter, select your SD card and click <Format>. 2. Burn the Raspberry Pi ® OS IMAGE onto the SD card. Open Win32Disklmager, select the file and SD card, and click <Write>. The burning process may take a few minutes.
- Page 5 MAKEVMP400 V. 03 – 14/01/2020...
-
Page 6: Driver Installation
MAKEVMP400 Driver Installation Install the Raspbian official IMAGE. Download the latest Raspbian IMAGE from the official website https://www.raspberrypi.org/downloads/. Format the TF card with an SDFormatter. Burn the official image onto the TF card using Win32DiskImager. Obtain the LCD driver. Online Installation Log onto the Raspberry Pi ®...
