ON-SCREEN INSTRUCTIONS
INSTRUCTION MANUAL

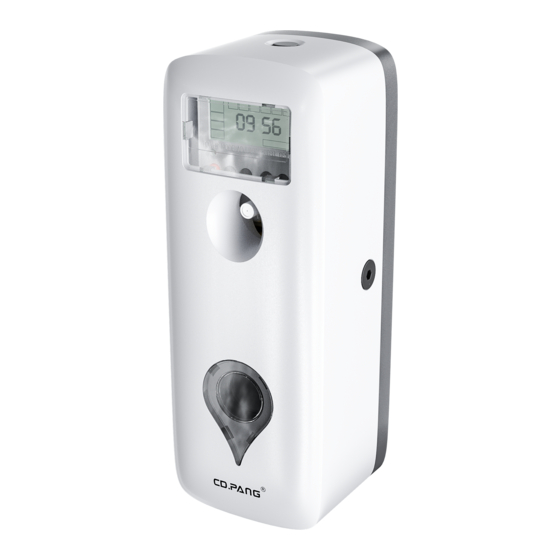

LIQUID AIR FRESHENER DISPENSER
MODEL：CD-6019
1-7: Monday to Sunday markers. The "√" below each day indicates a spraying day, while "×"
indicates a non-spraying day.
8. SET: When the "SET" logo flashes, it indicates the setting for the local time.
9. WORK: When the "WORK" logo flashes, it indicates the setting for the spraying day(s)
per week.
10. 24H: This setting determines the working time condition. "√" represents 24-hour
working mode, while "×" represents non-24-hour working mode.
11. ON: The time of day when the fragrance dispenser starts spraying.
12. OFF: The time of day when the fragrance dispenser stops spraying.
13. When the "LOW" icon is displayed, it indicates that the battery voltage is below 3.6
volts, and the battery should be replaced with a new one.
14. COUNT: This displays the number of times the fragrance dispenser has sprayed. It can
range from 0000 to 9999.
15.INT: This indicates the interval time (in minutes) between fragrance dispenser sprays. It
can be set within the range of 01-60 minutes.
16.Indicator Lights:
Green Light: Blinks once every 10 seconds during normal operation of the device.
Red Light: Flashes to indicate low power.
Yellow Light: Flashes to indicate the count is nearing 3000 times. Please check if the liquid
in the spray filling is exhausted. After refill press and hold the "Reset Count" button for 3
seconds to clear the spray count record.
Advertisement
Summary of Contents for CD.PANG CD-6019
- Page 1 ON-SCREEN INSTRUCTIONS INSTRUCTION MANUAL LIQUID AIR FRESHENER DISPENSER MODEL：CD-6019 1-7: Monday to Sunday markers. The "√" below each day indicates a spraying day, while "×" indicates a non-spraying day. 8. SET: When the "SET" logo flashes, it indicates the setting for the local time.
- Page 2 KEY FUNCTION DESCRIPTION 1，Press the "Mode" button twice. The "√" or "×" symbol below Monday will start flashing, and the screen will show the status of the fragrance machine for that day. Power: Press this button to turn the power on or off. When turning off the power, the 2，Press the "Adjust"...
- Page 3 INSTALLATION E, Set the Daily Start Time for Spraying: You can use the device's function to set the start and stop time for the spraying day. For example, if the office working hours are from 9:00 to 17:00, you can set the start time of the spraying machine to 9:00 and the stop time to 17:00.
- Page 4 PRECAUTIONS Ensure that the distance between the bottom of the fragrance dispenser and the ground is at least 7 feet to optimize its performance. When the fragrance dispenser is powered on, avoid facing the nozzle part of the spraying dispenser to prevent accidental spraying. Always replace with new alkaline batteries and never leave dead batteries in unit.
