Summary of Contents for Firstrate FST100-QXZ-01

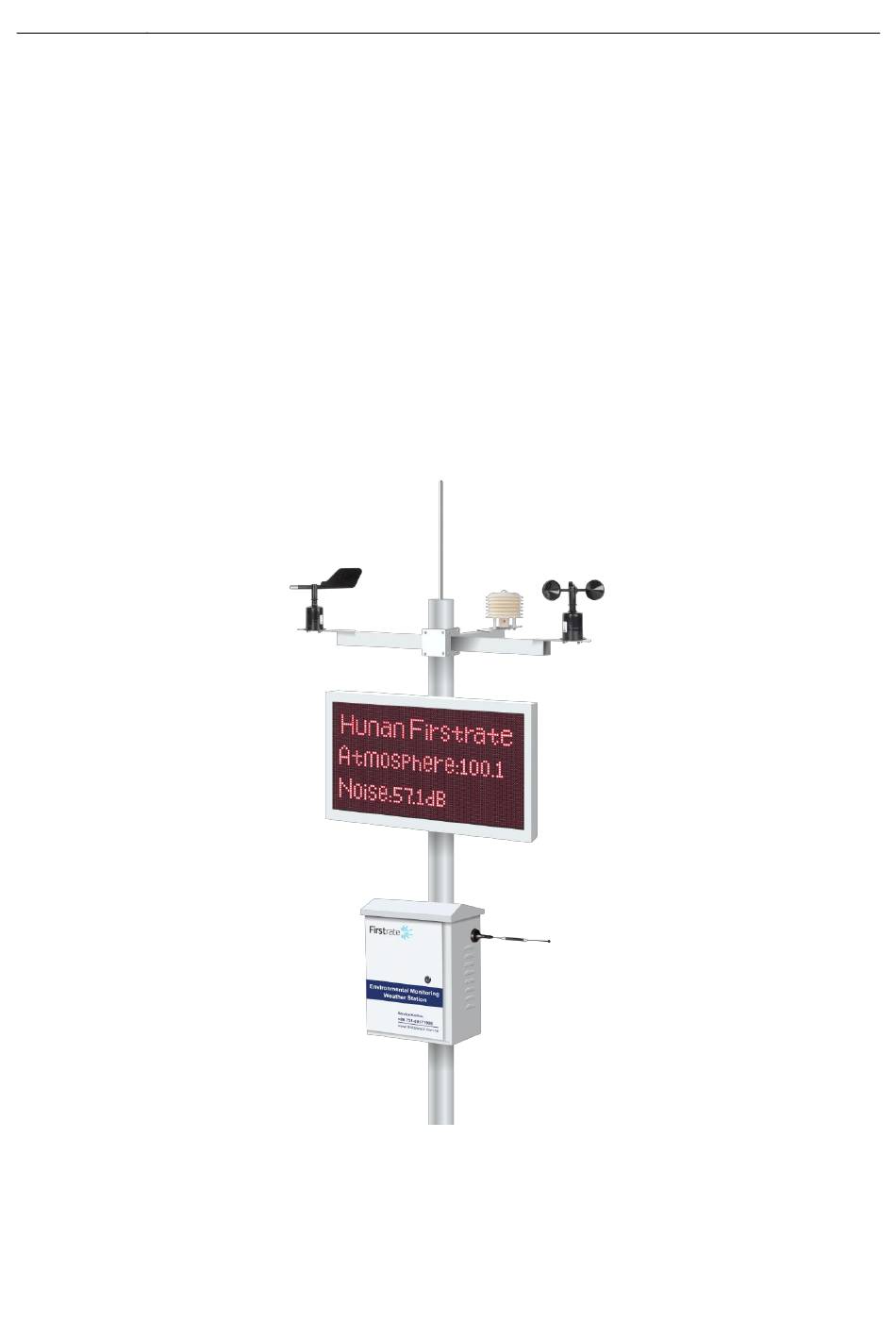

- Page 1 FST100-QXZ-01 Environmental Monitoring System Environmental Monitoring System Product Manual （V1.3）...
- Page 2 FST100-QXZ-01 Environmental Monitoring System ● Important statement Thank you very much for purchasing the Firstrate sensor (transmitter), we will serve you sincerely forever. Firstrate pursues outstanding and extraordinary quality and pays more attention to good after-sales service. If you have any questions, please dial: +86-731-86171990。...
- Page 3 FST100-QXZ-01 Environmental Monitoring System ● System parameters Power supply Mains 220V power supply / solar 12V DC power supply 220V mains power supply system/9～30VDC (12VDC Voltage range recommended) Photovoltaic battery pack 20AH output 12V, 60W monocrystalline Solar Subsystem silicon solar panel (high efficiency, sufficient W) Wireless NB-IoT，4G-CAT1...
- Page 4 FST100-QXZ-01 Environmental Monitoring System ● Sensor parameters The weather monitoring system can accurately measure many parameters: PM2.5, PM10, noise, temperature, humidity, wind speed, wind direction, atmospheric pressure and rainfall, radiation, soil temperature and humidity, electrical conductivity and PH value and other environmental factors.
- Page 5 FST100-QXZ-01 Environmental Monitoring System 0-20 ±3.5%FS（25℃） 0-20 ±3.5%FS（25℃） 0-100 ±(0.5ppm+3%FS) 0-10 0.01 ±(0.05ppm+5%FS) 400~5000 ±50ppm+5% of reading value ● Parts List Subsystem System Accessories Quantity Specification name type 114mm diameter, 1.5m long Pole base pole base 76mm in diameter, 1.5m in...
- Page 6 FST100-QXZ-01 Environmental Monitoring System accessories) Wind speed and direction, shutters, soil, Optional, Firstrate Sensor Universal other 1 set environmental series RS485 environmental sensors, all support access monitoring sensors, etc.
- Page 7 ● System installation Read before installation: ※ Firstrate wind direction sensor defaults to the north direction with the outgoing direction of the aviation plug; ※ The horizontal angle of solar panel installation is recommended to be set to 30 degrees in the area south of the Yangtze River, 45 degrees in the area north of the Yangtze River, and the direction of the panel is toward the south.
- Page 8 FST100-QXZ-01 Environmental Monitoring System 1. Installation location The meteorological environment monitoring system should be installed in a location where the sun is unobstructed and the wind direction is unobstructed, and should not be installed on the surface where it is easy to collapse, settle, or landslide.
- Page 9 FST100-QXZ-01 Environmental Monitoring System 4. Install the sensor 4.1 Install wind speed, wind direction, louver boxes and other sensors on different cross bars; 4.2 Fix the cross bar to the top pole of the vertical pole, and lead the sensor cable through the...
- Page 10 FST100-QXZ-01 Environmental Monitoring System 5. Install solar energy subsystem Please first press the switch to observe whether the power indicator is normal with red and green lights. All 4 indicators are on, which means full. The second red light starts to flash after each full space, until all 4 lights are full.
- Page 11 FST100-QXZ-01 Environmental Monitoring System 5.3 Camera installation (if any) 5.4 Mating the photovoltaic panel and the battery base connector 5.5 Battery output DC power supply and the DTU connector of the electric control cabinet system are mated...
- Page 12 FST100-QXZ-01 Environmental Monitoring System 5.6 After completion, use the hoop to install the solar sub-system at a suitable position on the top of the pole, as shown in the figure below: 6. Install the electric control cabinet 6.1 Use the accessory hoop to install the electric control cabinet above the upper and lower pole...
- Page 13 FST100-QXZ-01 Environmental Monitoring System 6.2 The LED subsystem and sensor outlets are connected to the electric control cabinet through the outlets at the bottom of the cabinet, as shown in the figure below: 6.3 The antenna should be as close as possible to the top of the electric control cabinet.
- Page 14 FST100-QXZ-01 Environmental Monitoring System 7.2 Solar and electric control cabinet (solar version) Solar cable Docking Electric control cabinet cable 12V DC power output <-> 12V DC power input 7.3 Sensor and DTU Sensor cable Docking Electric control cabinet cable Sensor RS485 A <->...
- Page 15 FST100-QXZ-01 Environmental Monitoring System The sensor and the DTU connection cable are directly plug-in connection, as shown in the figure:...
- Page 16 FST100-QXZ-01 Environmental Monitoring System...
- Page 17 FST100-QXZ-01 Environmental Monitoring System ● Environmental Data Management Platform Platform access address: http://47.112.149.41:8080/ Login account name: guest Login account password: If you need to create a separate account, please contact our business manager. System functions:...
-
Page 18: Matters Needing Attention
FST100-QXZ-01 Environmental Monitoring System ● Matters needing attention 1. After opening the product packaging, please check whether the appearance of the product is intact, verify whether the relevant content of the product manual is consistent with the product, and properly keep the product manual for more than one year;... - Page 19 FST100-QXZ-01 Environmental Monitoring System...
