Summary of Contents for Dawnway HT400

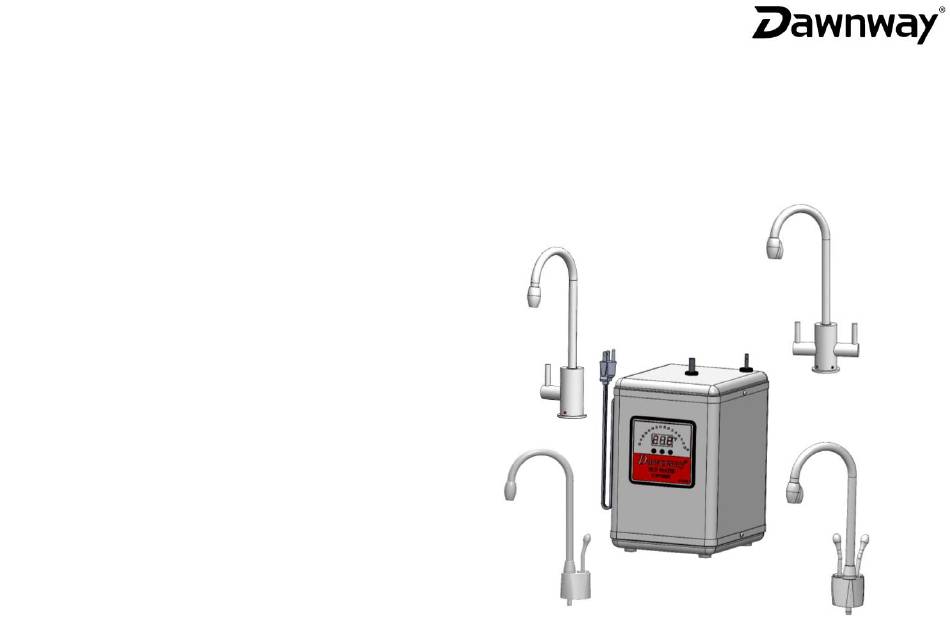

- Page 1 HT400&DF3600,DF5050 LEAD FREE DIGITAL INSTANT HOT WATER DISPENSER HT400&DF3601,DF5051 LEAD FREE DIGITAL INSTANT HOT AND COLD WATER DISPENSER INSTALLATION MANUAL DF3601 DF3600 HT400 DF5051 DF5050 Digital Instant Hot Water Dispenser Instruction Ver. A-E 2022/12/1...
- Page 2 IMPORTANT INFORMATION This digital hot water dispenser produces instant hot IMPORTANT SAFETY INSTRUCTIONS water of approximately100ﾟC (212ﾟF, max.) as PLEASE READ ALL INSTRUCTIONS VERY CAREFULY dispensed from the faucet. When using electrical appliances, basic safety This product is not intended to produce a continuous precautions should always be followed including the flow of hot water.
- Page 3 SAVE THESE INSTRUCTIONS. THIS PRODUCT IS THE DISPENSER EARTHED? FOR HOUSEHOLD USE ONLY. THIS APPLIANCE MUST BE EARTHED. In the event of malfunction or breakdown, earthing The alert symbols displayed above point to important reduces the risk of shock. This dispenser must be safety information to make you aware of potential connected to an earthed, metal, permanent wiring hazards that can cause serious injury or death.
- Page 4 HT400 DIGITAL INSTANT HOT WATER DISPENSER SPECIFICATION SHEET . 2.3 LITTER STAINLESS STEEL TANK . ALL STAINLESS STEEL TANK AND CASE . 1 YEAR WARRANTY TO ORIGINAL PURCHASER . MOUNTING BRACKET INCLUDED Inlet pipe outlet pipe accessory : quick-connect fitting...
- Page 5 DF3600 LEAD FREE FAUCET INSTANT HOT WATER DISPENSER SPECIFICATION SHEET The green labeled pipe connects with water MOUNTING HOLE supply. [INCH] The red UNIT : Silicon tube connects labeled pipe with the outlet pipe connects of tank. with the inlet tube of tank.
- Page 6 DF5050 LEAD FREE FAUCET INSTANT HOT WATER DISPENSER SPECIFICATION SHEET The red labeled pipe connects with the inlet tube of tank. MOUNTING HOLE The green [INCH] labeled pipe UNIT : connects Silicon tube with water connect with the supply. outlet pipe of tank.
- Page 7 DF3601 LEAD FREE FAUCET INSTANT HOT AND COLD WATER DISPENSER SPECIFICATION SHEET COLD WATER LINE The green labeled pipe HOT WATER connects LINE with water supply. MOUNTING HOLE [INCH] The red The blue labeled Silicon tube UNIT : labeled pipe connect pipe connects connects...
- Page 8 DF5051 LEAD FREE FAUCET INSTANT HOT AND WATER DISPENSER SPECIFICATION SHEET COLD WATER LINE HOT WATER The green LINE labeled pipe The blue labeled connects pipe connects with water with cold water MOUNTING supply. supply. HOLE [INCH] The red Silicon tube UNIT : labeled pipe connect...
- Page 9 OVERVIEW OF A COMPLETED SET-UP Quick-connect fitting with filter and cap 1 3/8”(35mm) maximum connects to cold water countertop thickness. supply line filter and cap side points toward Make sure countertop has a 1 1/4” to 1 3/8” (32mm or faucet.
-
Page 10: Control Panel
CONTROL PANEL You will be instructed throughout this document to learn a method of operating digital water heater. Please refer to the diagram below to understand variety functions. (1)Indicating Lights(16 LEDs) (2)The temperature Indicator (3)The unit of temperature (7)The leftmost LED Indicates the water temperature inside the tank (4)The rightmost LED indicates the being lower than 25℃... - Page 11 OPERATING INSTRUCTION Setting the target temperature . Pressing and then releasing the button of rising target temperature(5), the temperature indicator(2) changes to show the target temperature and the target temperature rises up 1 ℃(2~3℉) as it is higher then 90 ℃(194℉); otherwise, it rises up 5 ℃(9℉) each time. The highest target temperature is 100 ℃(212℉).
-
Page 12: Before You Begin Installation
BEFORE YOU BEGIN INSTALLATION 1. Before connecting to the power source, the tank must be filled with water. 2. Do not use an extension cord with this appliance. Appliance must be within approximately 36" (914 mm) of the power source. 3. - Page 13 Mounting Hole Size Requirements : • Existing hole in sink (the spray hose opening for example) or drilling another hole into the sink or countertop, You will need a 1 1/4“ (32 mm) or 1 3/8” (35 mm) hole in your sink. •...
-
Page 14: Materials Required
Materials required (not provid 2 mounting bracket screws 1/4" (6.35 mm) O.D. PE shut-off valve (and 2 plastic anchors if tube and "T" fitting" attaching to drywall) Tools and Safety Equipment you may need (not provided) ㆍ ruler or measuring tape ㆍ1 3/8"... -
Page 15: Installation
Faucet Installation (stage 1) INSTALLING PROCEDURE : 1. Make sure countertop has a 1 1/4” or 1 3/8” (32mm or 35mm) mounting hole and countertop thickness is no more than 1-3/8”(35mm). 2. Make sure there is space for the handles to push back when opened. - Page 16 Tank Installation (stage 2) Position tank vertically beneath faucet so the flexible tube from the faucet reaches the center faucet supply tube on the tank and tank touches the wall. Mark the wall at the top of tank. Set tank aside. Mark a second line 2 1/8"...
- Page 17 Connecting (stage 3) Step 1 - Connect Faucet to Tank Connect the pipe of marked red label on the faucet by 1/4" (6.35 mm) PE tube to the rear pipe at the top corner of tank with the quick-connect fitting supplied with the appliance. (Do not use the quick-connect fitting with filter and cap.) ...
- Page 18 Step 2.0 Connect Cold Water Supply (f or water supply without filter or chiller) Check filter in Quick-Connect Fitting with Filter and Cap . The cone-shaped screen filter comes seated inside the quick-connect fitting as shown in the illustration below, with the narrow end protruding through the cap which is also attached to the fitting.
- Page 19 Step 2.1 - Connect Cold Water Supply For DF3600 & DF5050 Without Filter Or Chiller : Connect a quick-connect fitting with filter and cap (attached with tank) between shut-off valve and faucet and cap side points toward faucet. See page 17. Connect the pipe of marked green label on the faucet by ¼”(6.35mm) PE tube to shut-off valve .
- Page 20 Step 2.2 - Connect Cold Water Supply For DF3601 & DF5051 Without Filter Or Chiller : Install a shut-off valve with T quick-connect fitting in the main water supply line. Connect ¼”(6.35mm) PE tube between faucet quick-connect fitting (blue label ) and shut-off valve for cold water supply.
- Page 21 Step 2.3 - Connect Cold Water Supply For DF3600 & DF5050 With Filter : Connect ¼”(6.35mm) PE tube between faucet quick-connect fitting (green label) and shut-off valve . Do not connect directly to the water supply without shut-off valve. Flush all lines before connecting. If no water filter is used connect a quick-connect fitting with filter and cap (attached with tank) between shut-off valve and faucet.
- Page 22 Step 2.4 - Connect Cold Water Supply For DF3601 & DF5051 With Filter : Make sure there is a shut-off valve in the inlet of water filter and a T quick-connect fitting in the outlet of water filter. Connect ¼”(6.35mm) PE tube between faucet quick-connect fitting (blue label ) and outlet of water filter for cold water supply.
- Page 23 Step 2.5 - Connect Cold Water Supply For DF3601 & DF5051 With Water Chiller And Filter : Make sure there is a shut-off valve in the inlet of water filter and a T quick-connect fitting in the outlet of water filter. Connect ¼”(6.35mm) PE tube between outlet of water filter and inlet of water chiller for chiller water supply.
- Page 24 Step 3 - Check for Leaks Make sure the inlet water supply pressure is 172kPa (25psi) Min and 861 kPa (125psi) Max. Open valve in water line. Turn faucet on (hold if necessary) to fill tank (about 2 minute). When tank is full, water will flow from faucet.
- Page 25 OPERATING INSTRUCTIONS For Hot Water DF3601 DF3600 DF5050 DF5051 Depress the dispenser’s HOT handle and hold it until HOT water flows from the spout. Release it, handle bar will automatically return to close position.
- Page 26 OPERATING INSTRUCTIONS For Cold Water DO NOT DF5050 DF3601 DF3600 DF5051 Never dispense both hot and cold water at the same time unless the water supply Turn the dispenser’s cold handle forward pressure is more than 30 psi. until cold water flows from the spout. Turn it backward to close the water.
-
Page 27: Cleaning And Maintenance
CLEANING AND MAINTENANCE Seasonal Shutdown To prevent damage when dispenser is exposed to freezing temperatures, water must be drained. O-ring 1. Unplug dispenser tank from power supply. screw 2. Turn thermostat control dial to lowest position (fully counterclockwise). 3. Turn faucet on and run water until water is cold. 4. -
Page 28: Troubleshooting
TROUBLESHOOTING The following situations are not covered by the One Year Replacement Warranty. Check that the water heater is going in the auto running mode. See page 10. 2. Water is not hot: (assuming cold water supply is connected property and valve is open) ㆍ...
