SENSORS FOR FOOD AND LIFE SCIENCES.
AV9900
Basic Configuration
Unit must be in program mode for all settings below
(see picture to the right, jumper must be on the bottom 2 pins)
1.
Scroll to Configuration
2.
Press down to Instrument Settings
3.
Press down
4.
Scroll to Current Date
5.
Press MOD
a.
Use up/down arrows to change month
6.
Press Enter
a.
Use up/down arrows to change day
7.
Press Enter
a.
Use up/down arrows to change year
8.
Press ENTER to save
9.
Scroll to Current Time
10. Press MOD
a.
Use up/down arrows to change hour
11. Press Enter
a.
Use up/down arrows to change minutes
12. Press Enter
a.
Use up/down arrows to change AM or PM
13. Press ENTER to save
14. Press RESET back to main screen

Changing Instrument/Display Tag

1.
Scroll to Configuration
2.
Press down to Instrument Settings
3.
Press down
4.
Scroll to Instrument Tag
5.
Press MOD
6.
Use up/down arrows to adjust each individual character as needed
7.
Press ENTER to save
8.
Press RESET back to main screen

Programming Date/Time

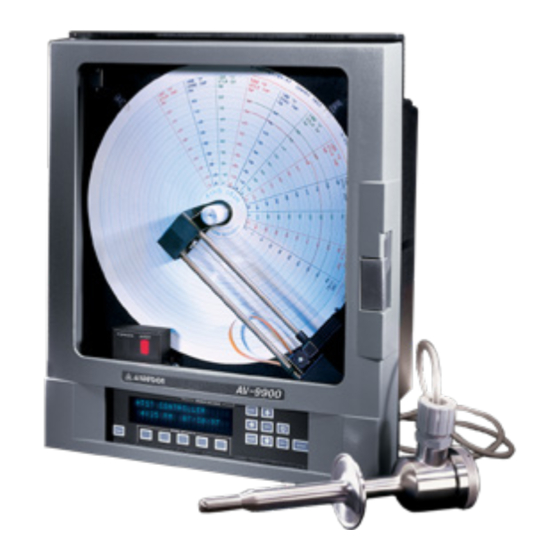

AV-9900 HTST Recorder Controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV9900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ANDERSON-NEGELE AV9900

Summary of Contents for ANDERSON-NEGELE AV9900

  • Page 1 SENSORS FOR FOOD AND LIFE SCIENCES. AV-9900 HTST Recorder Controller AV9900 Basic Configuration Unit must be in program mode for all settings below (see picture to the right, jumper must be on the bottom 2 pins) Programming Date/Time Scroll to Configuration...
  • Page 2 AV-9900 HTST Recorder Controller Changing Chart Tag Press CHART key twice to Chart Configuration Press down to Chart Tag Press MOD Use up/down arrows to adjust each individual character as needed Press ENTER to save Press RESET back to main screen Changing Chart Speed (Rotation Time) Press CHART key twice to Chart Configuration Press down...
  • Page 3 AV-9900 HTST Recorder Controller Programming Inputs (cont’d) 16. Scroll to Limit Low – Low end of input range (HWC, CPR, SFLR) Press MOD to get cursor Use up/down arrows to change value if needed Press ENTER to save 17. Scroll to Limit High – High end of input range (HWC, CPR, SFLR) Press MOD Use up/down arrows to change value if needed Press ENTER to save...
  • Page 4 AV-9900 HTST Recorder Controller Programming 4-20mA Outputs (cont’d) Repeat for all available Outputs Press RESET back to main screen Scroll to Configuration Press down 10. Scroll to Current Outputs 11. Press down 12. Select the input you are trying to assign (make sure it is flashing and press enter or press the soft key under the input) 13.
  • Page 5 Use up/down arrows to change the setpoint value Press ENTER to save Repeat for Each Setpoint as needed 10. Press RESET back to main screen 10041 / 1.0 / 2023-12-11 / CD / NA Anderson-Negele Phone 800-833-0081 Tech. Support: 156 Auriesville Road Fax 518-922-8997 techservice@anderson-negele.com...
