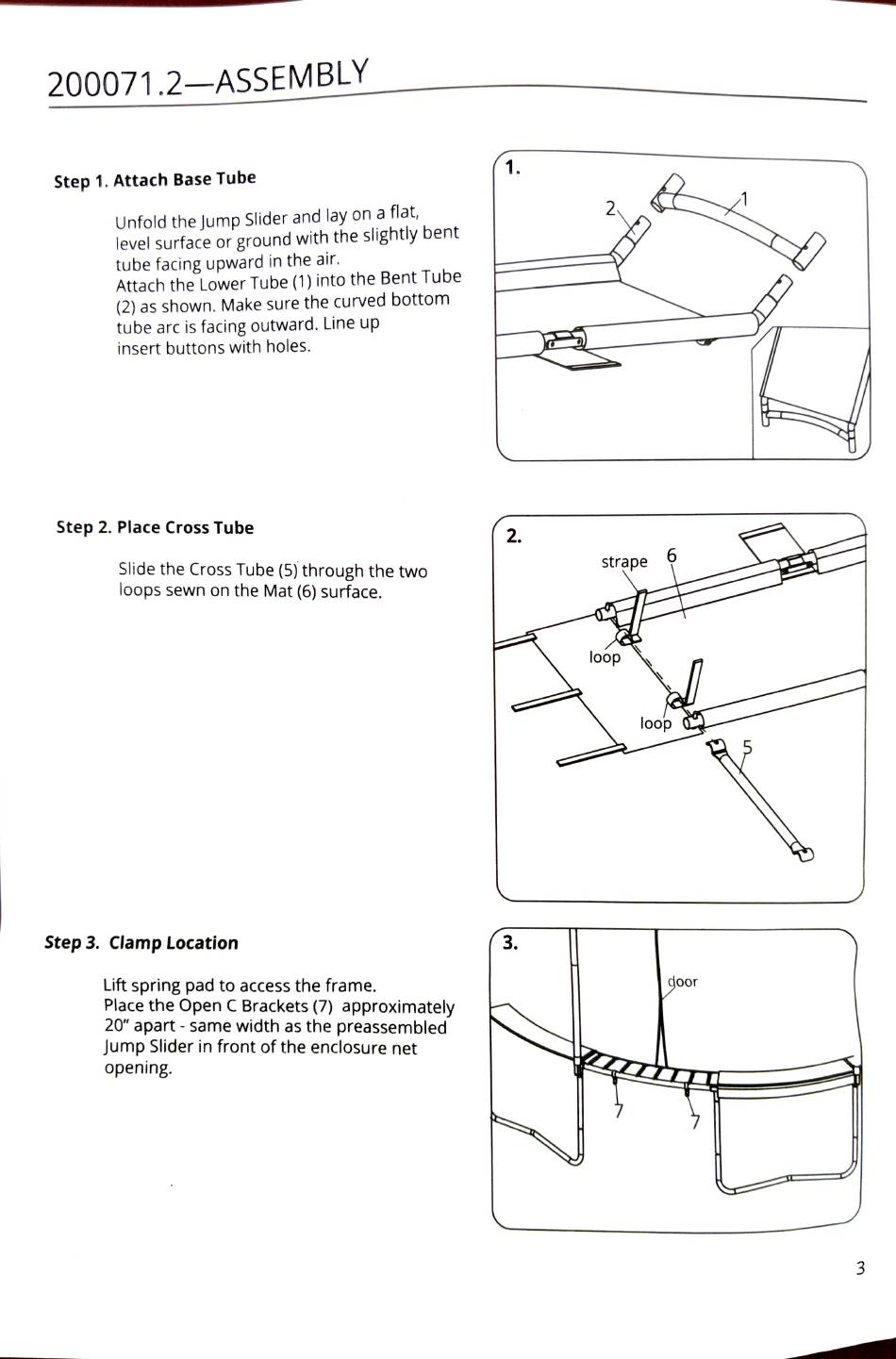

Trampoline pro JUMP SLIDER Abridged User Manual page 3

200071.2-ASSEMBLY
(1.
Step
1. Attach Base Tube
Unfold the
Jump
Slider and lay on a
flat,
level
surface
or
ground
with the
slightly
bent
tube
facing
upward
in the air.
Attach
the
Lower
Tube (1)
into the Bent
Tube
(2)
as
shown.
Make
sure
the curved bottom
tube arc is facing outward. Line up
insert buttons with holes.
Step 2. Place Cross Tube
2.
strape 6
Slide the Cross Tube (5) through the two
loops sewn on the Mat (6) surface.
loop
loop
Step 3. Clamp Location
(3.
goor
Lift spring pad to access the frame.
Place the
Open
C
Brackets
(7)
approximately
20" apart same width as the preassembled
Jump Slider in front of the enclosure net
opening.
3
