Quick Reference Guide – MHA-K-230/48
This short instruction shows you how to work with the MHA-K-230/48 Microdispensing Heater Adaptor 48 V

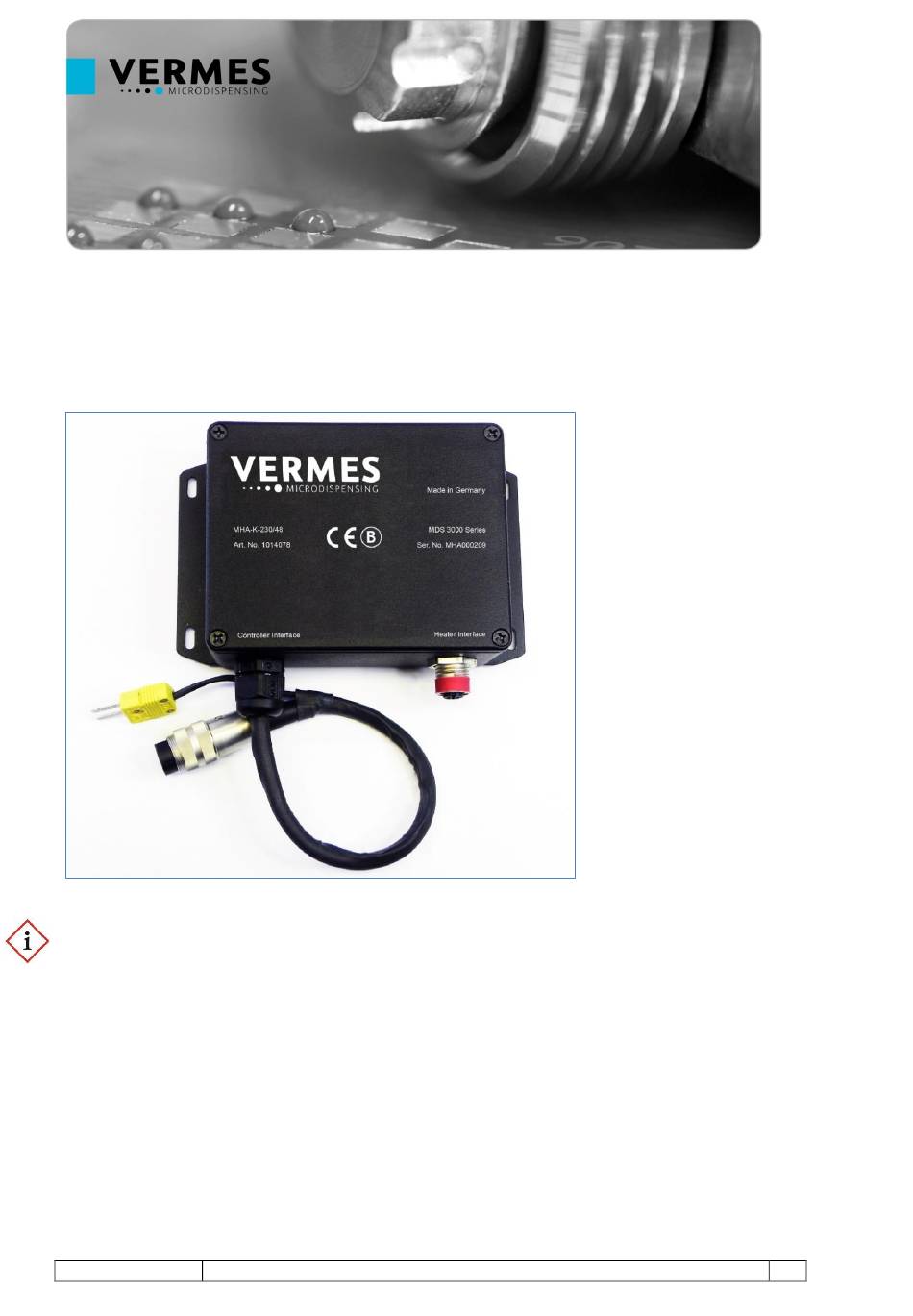

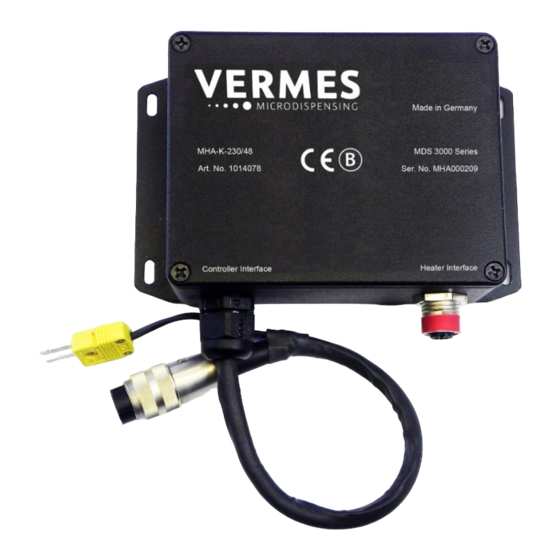

(order no. 1014078, see picture below). This adaptor allows you to connect a 48 V heater (e.g. Fluid Box MDFH-48-
CC Luer Lock, order no. 1013969) with an MDC 3200
IMPORTANT INFORMATION!
The MHA-K-230/48 does only work with MDC 3200
You can check the firmware revision in the MDC menu. Press the [←]-key from the main menu (see user manual
for more details).
Set the MDC at 230 V! The adaptor does not work with 110 V! Make sure that "Heater Voltage" (submenu
"Heater", see user manual for more details) is set to 230 V.
The MHA-K-230/48 may only be connected with heater cables of the type MHA-K 48 V. They are marked with a red
ring, to show the connection to the heater socket of the MHA-K-230/48. The heater socket is marked red as well
(see pictures next page).
VTK-VS-BA-050e-C
VERMES Microdispensing GmbH – Phone: +49 (0) 80 24 6 44-0 – www.vermes.com
+
. The rated power of the MHA-K-230/48 is 20 Watt.
+
, if the MDC has the firmware revision 4072HVA-K or higher!
