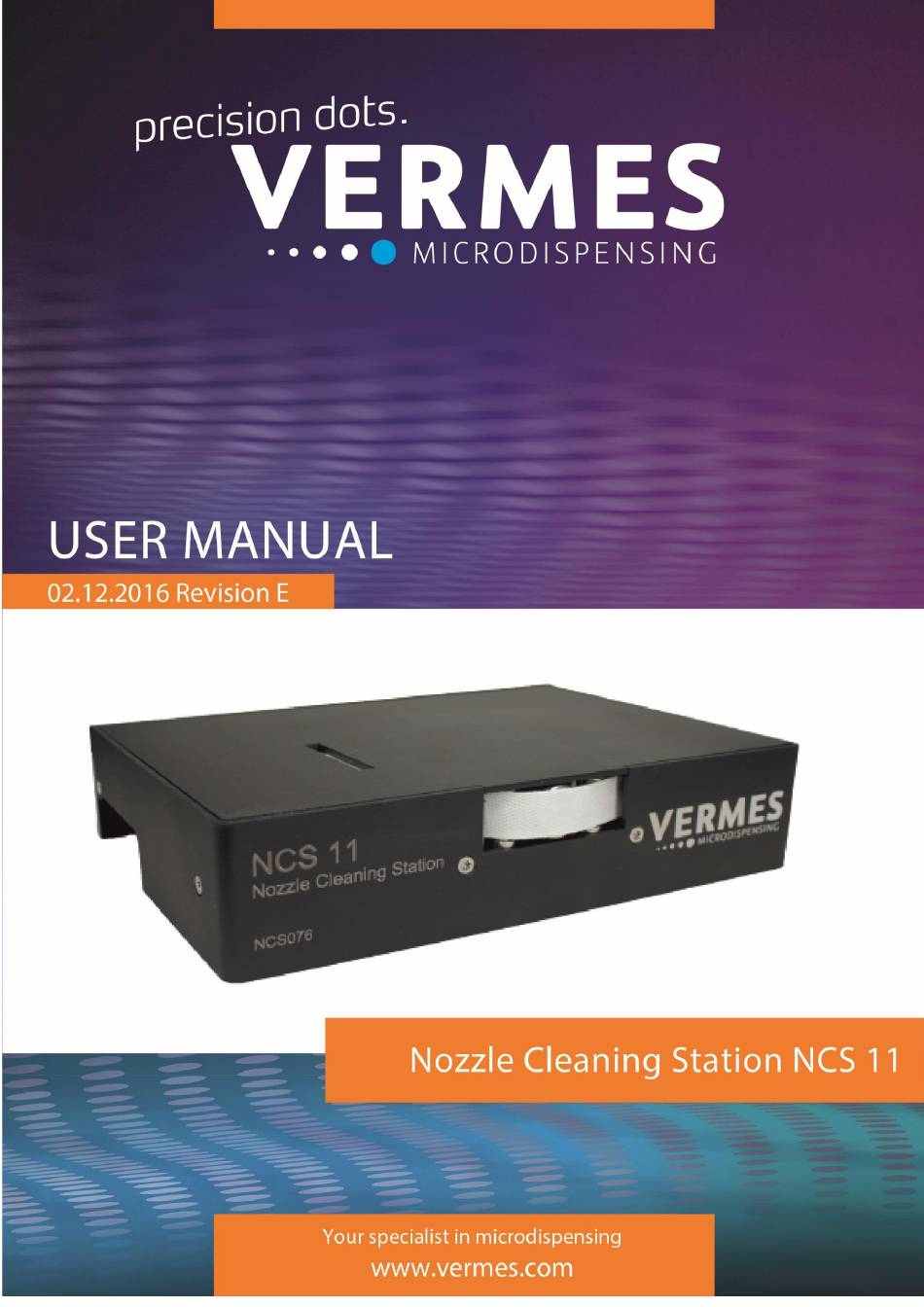

Summary of Contents for Vermes NCS 11
-
Page 2: Table Of Contents
1 Content Content ................................. 2 Safety information in this document ......................3 Preliminary remarks ............................3 Target group ..............................4 Information for operators ..........................4 Information for operators ..........................5 Selecting personnel and qualifications ......................5 Directives, laws and standards ........................5 Warranty scheme ............................ -
Page 3: Safety Information In This Document
This symbol indicates a possible risk of damage to property or the environment. 3 Preliminary remarks This user manual describes the function and operation of NCS 11 and the relevant firmware. Pictures might show insignificant deviations from actual product. This user manual is part of the scope of delivery. -
Page 4: Target Group
Target group This operating manual is addressed to: Operating personnel. These persons are instructed in the use of the device and as to the possible hazards which may result from improper behavior. Qualified personnel. These persons have suitable specialist training and additional knowledge and experience. -
Page 5: Information For Operators
Directives, laws and standards The contents of and information included in various directives and sets of regulations have been observed in the design and construction of NCS 11. Warranty scheme The valid warranty scheme is stipulated in our terms of delivery. -
Page 6: General Safety Information
If handled incorrectly, there is a risk of injury through crushing. CAUTION Safety at the installation site The stability of the NCS 11 must be ensured. Choose an installation site where The length of the connecting cables is sufficient and ... -
Page 7: Product Description
In an explosive atmosphere. Use outdoors. Ambient conditions The NCS 11 is designed for use in normal production conditions (room temperature, low to average humidity). Position and content of the ID plate The ID plate is located at the bottom of the base plate. -
Page 8: Brief Description
Variants The Nozzle Cleaning Station NCS 11 is offered in the following variants: NCS 11 W S (Order no. 1013536, I/O connection via Quick Change Module, trigger raised by 2 mm) NCS 11 Direct (Order no. 1013201, I/O connection via cable) ... -
Page 9: Scope Of Delivery
6 Scope of delivery NCS 11 Nozzle Cleaning Station Mounting plate including mounting material Cleaning tape (can be ordered separately, order no. 1013299) Center ring 2-meter connecting cable D-sub 9F or 15F with unwired end User manual Assembly tools VTK-VS-BA-013e-E_NCS 11 User Manual Rev. 2.8... -
Page 10: Diagrams
7 Diagrams Manual switch Encoder Status LED Push button Status LEDs (3.3 V and 24 V) Dipswitch Fuse D-sub plug VTK-VS-BA-013e-E_NCS 11 User Manual Rev. 2.8... -
Page 11: Initial Operation
Connect the D-sub cable with the quick-change-plate. NCS 11 Direct/NCS 11 W Direct: Connect the D-sub cable (G). For pinout, see chapter 9. Mount base plate with supplied screws. Position NCS 11 on pins and click into place. VTK-VS-BA-013e-E_NCS 11 User Manual Rev. 2.8... -
Page 12: Technical Data
Never press the push button to the end stop during tape feed. Pressing the push button to the end stop or beyond may damage NCS 11. 9 Technical data Supply voltage 24 VDC Signal voltage +24 V Current consumption max. 500mA... -
Page 13: External Inputs/Outputs
10 External inputs/outputs I/O 1: Start signal The external start signal triggers cleaning by a higher-level control unit. I/O 2: End-of-tape/failure This output is set simultaneously with the status LED indicating an end-of-tape or failure state. I/O 3: Cleaning finished/ready If auto-stop mode is active, the Cleaning finished- or ready-signal is set at this output once the stipulated tape length has been unwound. -
Page 14: Setting The Feed Length
11.1 Setting the feed length Dipswitches S1-1/2/3/4 set the feed length of the tape. The minimum feed length is 3.5 mm and is multiplied by the binary multiplier. Switch position Tape length 3.5 mm 7 mm 10.5 mm 14 mm 17.5 mm 21 mm Switch position... -
Page 15: Operating Mode
11.2 Operating mode The operating mode is selected using dipswitches S1-5 and S1-6. S1-5 selects how the cleaning process is to be initiated and S1-6 selects when the tape will stop. S1-5 selects how to initiate the cleaning process. Started by an external signal Cleaning is started as soon as the external signal (+24 V) is applied. -
Page 16: Failures
11.3 Failures The hold-on-error function is switched on and off by dipswitch S1-7. Hold-on-error function When an error occurs, the status LED is constantly on and activated cleaning is interrupted. Cleaning can only restart once the failure LED has been reset. The error is reset by pressing switch A. -
Page 17: Constant Tape Speed
11.4 Constant tape speed The control function for a constant tape speed across the entire tape length is switched on and off by S1-8, S1-9 selects the speed. S1-8 (de-)activates the function. Control function active The tape speed is kept constant regardless of the current reel diameter. -
Page 18: I/O3 Cleaning Finished <-> Ready
I/O3 Cleaning finished <-> Ready The timing for the output Cleaning finished/Ready to be set can be selected with dip switch S1-10. In gate mode this output has no function (chapter 11.2). Cleaning finished I/O 3 is set when the tape feed length is reached. S1-10 on Ready I/O 3 is set when the tape feed length is reached and the push... -
Page 19: Changing The Tape
12 Changing the tape 1. At the end of the tape reel the status LED lights up (C). 2. Remove the magnetic side cover. 3. Remove the empty center reel. 4. Remove the soiled tape. 5. Remove the Center ring for reuse or order a new center. Center rings must possess a hole for the pin. -
Page 20: Status Led
13 Status LED 13.1 LED is on Failure/end of tape: the status LED (C) is permanently on when the drive is active but no pulse from the encoder has been registered for longer than a stipulated period. Possible causes are: Tape incorrectly threaded or Tape end blocked... -
Page 21: Led Flashes Very Quickly
Check that the connecting Problem solved? No: open the cover (see cable is properly inserted (G). Yes: you're done! chapter 11). support@vermes.com Yes: Is the 24 V status LED on (E)? check the fuse (F) contact support. and replace if necessary.
