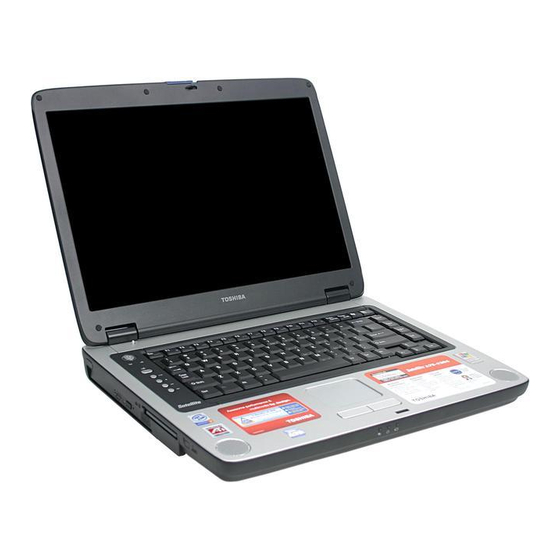

TOSHIBA
Satellite® A75 Series
Feature Model(s):
Satellite A75-S206
Mobile P4 518 (2.8GHz)/15.4"WXGA/512MB/60GB/DVD-CDRW/Mdm/LAN/Wi-Fibg/WinXP Home
Satellite A75-S2061
Mobile P4 518 (2.8GHz)/15.4"WXGA/512MB/60GB/DVD-CDRW/Mdm/LAN/Wi-Fibg/WinXP Pro
Product Highlights
Performance
•
Mobile Intel® Pentium® Processor® 518 supporting Hyper-
Threading Technology
•
512MB of Main Memory
Great Features
•
1
60GB
hard disk drive
•
DVD-ROM/CDRW multi-function drive
•
15.4 widescreen WXGA TFT active matrix display
Get On-Line
•
Integrated V.92/56K modem
•
Integrated 10/100 Ethernet LAN
•
Integrated Wireless LAN (802.11bg)
System Characteristics
Operating System
•
Microsoft® Windows® XP Home pre-installed (A75-S206)
•
Microsoft® Windows® XP Professional pre-installed (A75-
S2061)
CPU
•
Mobile Intel® Pentium® Processor 518 supporting Hyper-
Threading Technology
4
2.80GHz
, 1MB L2 cache, 533MHz FSB
o
•
ATI® MOBILITY™ RADEON™ 9000 IGP
Memory
•
512MB (1 DIMM) fixed memory slot with 1 available upgradeable
slot; expandable to 1536MB
Data/Address Bus Width: 64bit/32bit
o
•
Optional available expansion memory modules:
256MB/512MB/1024MB, SODIMM; Memory compatible with
PC2700 DDR333
Mass Storage/Optical Drive
•
Primary Hard Disk Drive: 60GB
(ATA-6) interface, 4200rpm drive rotation; 9.5mm height, Service
Removable
•
DVD-ROM/CDRW Multi-function Drive: Enhanced IDE (ATAPI)
Interface; Maximum speed: CD-ROM (24x read), CD-R(24x
read/write), CD-RW(12x read/4x write), DVD-ROM(8x read),
DVD-R (4x read only), DVD-RW (4x read only), DVD-RAM (2x
read only); Service removable
Graphics/Video
•
15.4" widescreen TFT WXGA LCD
colors at 1280X800
•
ATI® MOBILITY™ RADEON™ 9000 IGP with 64MB shared
video memory
•
DirectX8 supported by hardware and DirectX9 supported by
software
•
Direct 3D support and DirectVideo
•
Supported external resolution/color/maximum external refresh
rate:
640 x 480
16bit/32bit colors
800 x 600
16bit/32bit colors
1024 x 768
16bit/32bit colors
1280 x 1024 16bit/32bit colors
1600 x 1200 16bit/32bit colors
1920 x 1440 16bit/32bit colors
2048 x 1536 16bit/32bit colors
Input Devices
•
Keyboard: Full sized 85 keys with 12 function keys, 2.7mm key
stroke, 6mm height; Dedicated Windows® keys support; HotKey
function; TouchPad pointing device
•
CD Control Function: Play/Pause, Stop/Eject, Previous,
Skip/Next (Only works when system is turned on)
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
©2004 Toshiba America Information Systems, Inc. All rights reserved
.Satellite_A75-S206 v1.2
2
3
1
hard disk drive, Enhanced IDE
2
, display supports up to 16M
60/75/85/100Hz
60/75/85/100Hz
60/75/85/100Hz
60/75/85/100Hz
60/75/85Hz
60Hz
Created on 7/21/2004 11:31 AM
Expandability
•
1 memory slot available
•
1 PC Card slot support 1 Type II PC Card
Communications
•
Integrated V.92/56K modem; Data and fax support
Due to FCC limitations, speeds of 53kbps are the maximum permissible transmission
rates during download. Actual data transmission speeds will vary depending on line
conditions.
•
Integrated 10/100 Ethernet LAN
•
Integrated Wireless LAN (Atheros 802.11bg)
Ports
•
Parallel printer port
•
RGB (monitor) port
•
3 Universal Serial Bus ports (USB)
•
TV-Out Port (S-video)
•
RJ-45 LAN Port
•
RJ-11 modem port
Physical Description
•
Dimensions (LxWxH): 14.4" x 10.8" x 1.81" (2.12" with feet)
•
Weight: starting at 7.98 lbs
•
LED Indicators: Power/Power Save Mode/ System
Sleep/Suspend status, HDD, CD/DVD-ROM, DC-IN, Caps Lock,
Arrow, Numeric, Main Battery Charging Status, Wireless
Communication switch
Sound
•
Realtek ALC250 Codec Chip; Software Sound
•
Built-in stereo speakers; Sound Volume (by dial), Direct 3D
Sound (supported by driver), DirectSound (supported by
hardware) and DirectMusic (supported by hardware); MIDI
Support; Sound Volume (by Dial); Full Duplex Support
•
Ports: External microphone port (monaural), headphone port
(stereo)
Power Supply
•
AC Adapter: 120W external AC Adapter, 100-240V / 50-60Hz
frequency (Universal) input voltage,
Dimensions (LxWxH): 5.91" x 2.56" x 1.42"
Weight: starting at 1.43lbs
•
Battery Pack: 12-cell, rechargeable, removable Lithium Ion (Li-
Ion) battery, 14.8V x 6450mAh
•
Dimensions (LxWxH): 10.7" x 1.04" x 2.82"
•
Weight: starting at 1.49lbs
•
Battery Saver (in Windows XP): Stand by, HDD Auto Off, Display
Auto Off, Throttling, Hibernation
•
Battery life (main batt): Please see battery life section
•
Recharge time (main off/on): Approx 12H(on)/ 4H(off)
Battery life may vary depending on product model, configuration, applications, power
management settings and features utilized. Recharge time varies depending on usage.
Battery may not charge while computer is consuming full power. After a period of time,
the battery will lose its ability to perform at maximum capacity and will need to be
replaced. This is normal for all batteries. To purchase a new battery pack, see the
accessories that shipped with your computer or visit the Toshiba website at
www.accessories.toshiba.com
Security
•
Slot for computer lock, HDD (6 screws) and memory (1 screw),
Battery (latch), User Power-on password, Setup Security (by help
of SVPW utility), Screen Blank (by Hotkey), Screen Saver (by
software)
Bios
•
ACPI, PnP, VESA, DPMS, DDC, SM BIOS, PCI BIOS support
Additional Software
•
Microsoft® Works
•
Microsoft® Office OneNote™ 2003
•
Software Decoder: InterVideo® (Win-DVD™ 5) -w/SRS
TruSurround XT® Technology (SRS TruSurround XT®
Technology features: TruSurround, SRS Dialog Clarity
Enhancement, & TruBass)
•
Sonic® Solutions Drive Letter Access (DLA)
Rev. 1.2
Part Numbers
PSA70U- 003002
PSA70U- 003003
3
5
19V x 6.3A Output.
5
5
6
Page 1 of 10
