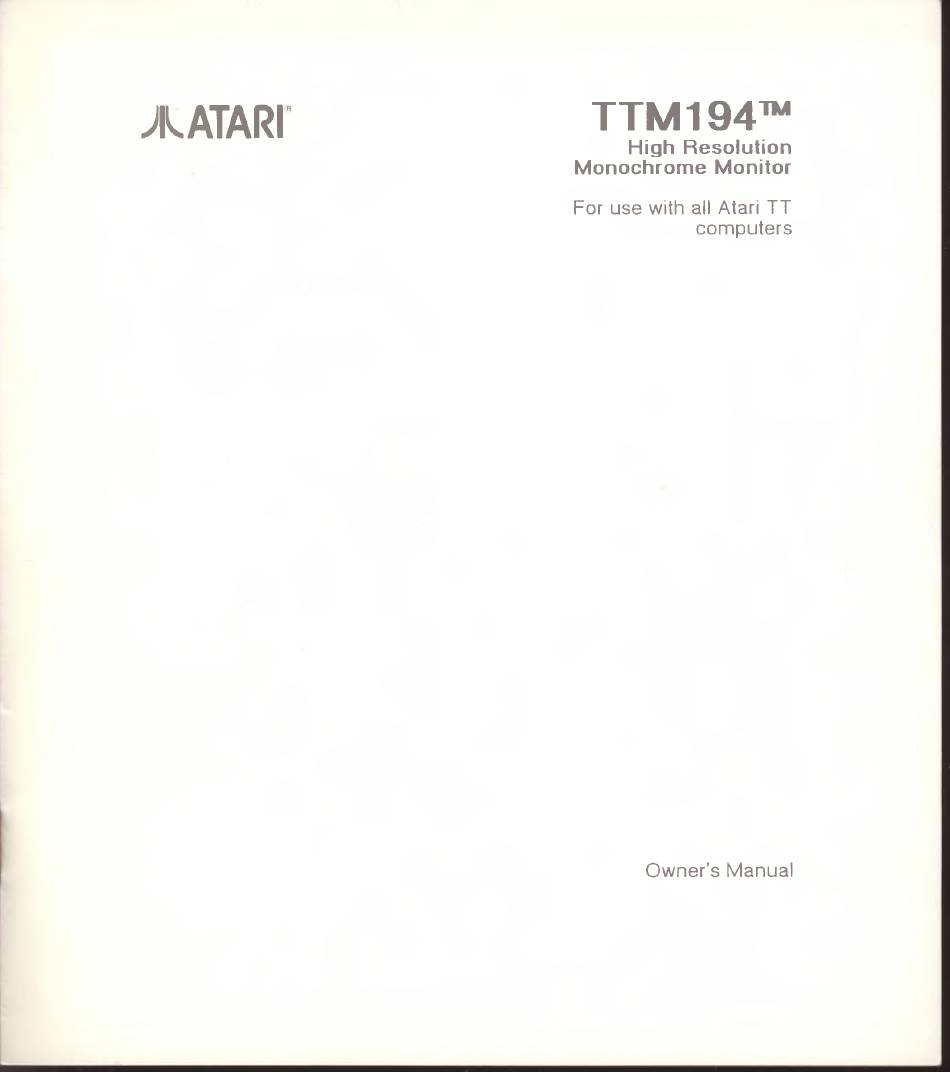

- Page 1 TTM194™ ATARI High Resolution M onochrom e Monitor For use with all Atari TT Computers Owner’s Manual...
- Page 2 R eproduction of all or any portions of this manual is not aliowed w ithout the specific w ritten consent of Atari Corporation. Atari*®, the Atari logo, and Atari TTM194™ are tradem arks or registered tradem arks of Atari Corporation.
-
Page 3: Power Connection

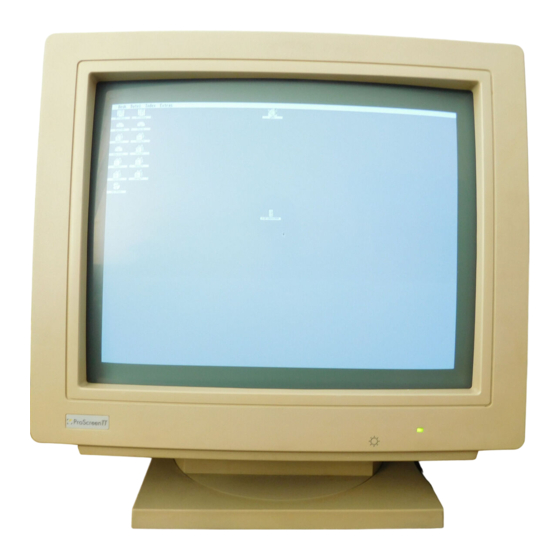

INTRODUCTION Your new TTM194 is a fixed frequency, ECL high resolution mono chrome monitor designed to display the video signal from your Atari TT Computer. To obtain Optimum results, spend a few minutes read- ing this manual carefully betöre you operate the monitor. - Page 4 2. Connect the signal cable on the monitor (use the 9-pin [>sub type), then connect the cable to the connector on the back of your TT (a 15-pin D-sub type connector) as described in your Atari TT owner’s manual. © (fl)
- Page 5 3. Plug the mains into the monitor. Then plug the other end of the mains into a properly grounded power outlet. 4. Press the power switch to 1 (ON). The power indicator lights. Always switch the monitor on first, then switch on the TT. 5.
-
Page 6: Important Safeguards
3. Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your Atari dealer for replacement. Do not allow anything to rest upon or roll over the power cord. - Page 7 7. To avoid personal injury: • Do not place the monitor on a sloping shelf unless properly secured • Use only a stand recommended by the manufacturer • Do not try to roll a stand with small casters across thresholds or deep pile carpets 8.
- Page 8 Service 1 Unplug ihe monitor from the electrical outlet and call your Atari dealer when: • The power cord or plug is damaged or frayed • Liquid has been spilied into the monitor • The monitor has been exposed to rain or water •...
-
Page 9: Specifications
SPECIFICATIONS Power Source: Input Voltage 220 - 240 VAC Power Frequency 50 Hz Power 64 Watts Inrush Current 40 Amps peak at 240 VAC Picture Tube 19 inch, black and white, 114° deflection Resolution 1280 x 960 10 Ft-L lines m in u te at (P 104 p h o p h o r and Standard a n ti-g la re fa ce p late) - Page 10 9-P in (F e m a le ) D -Subm iniature Pinout to a 15-pin (M ale) High Density D -Subm iniature Pinout. 9 -P in (F e m a le ) 1 5 -P in (M a le ) D -S u b H ig h D e n s ity D -S u b...
-
Page 11: Customer Support
Please write the subject of your letter on the outside of the envelope. Atari User Groups are outstanding sources of information on how to get the most from your Atari Computer. To receive a list of Atari User Groups in your area, send a self-addresssed, stamped envelope to:... - Page 12 C o p y rig h t© 1990, Atari Corporation Sunnyvale. CA 94089 All rights reserved C 3 0 1 8 3 6 -0 0 3 R e v. A C opyright © 1990, Atari Corporation Printed in USA. Sunnyvale, CA 94089 All rights reserved C 3 0 1 8 3 6 -0 0 3 R e v.
