Summary of Contents for himbol Memory I

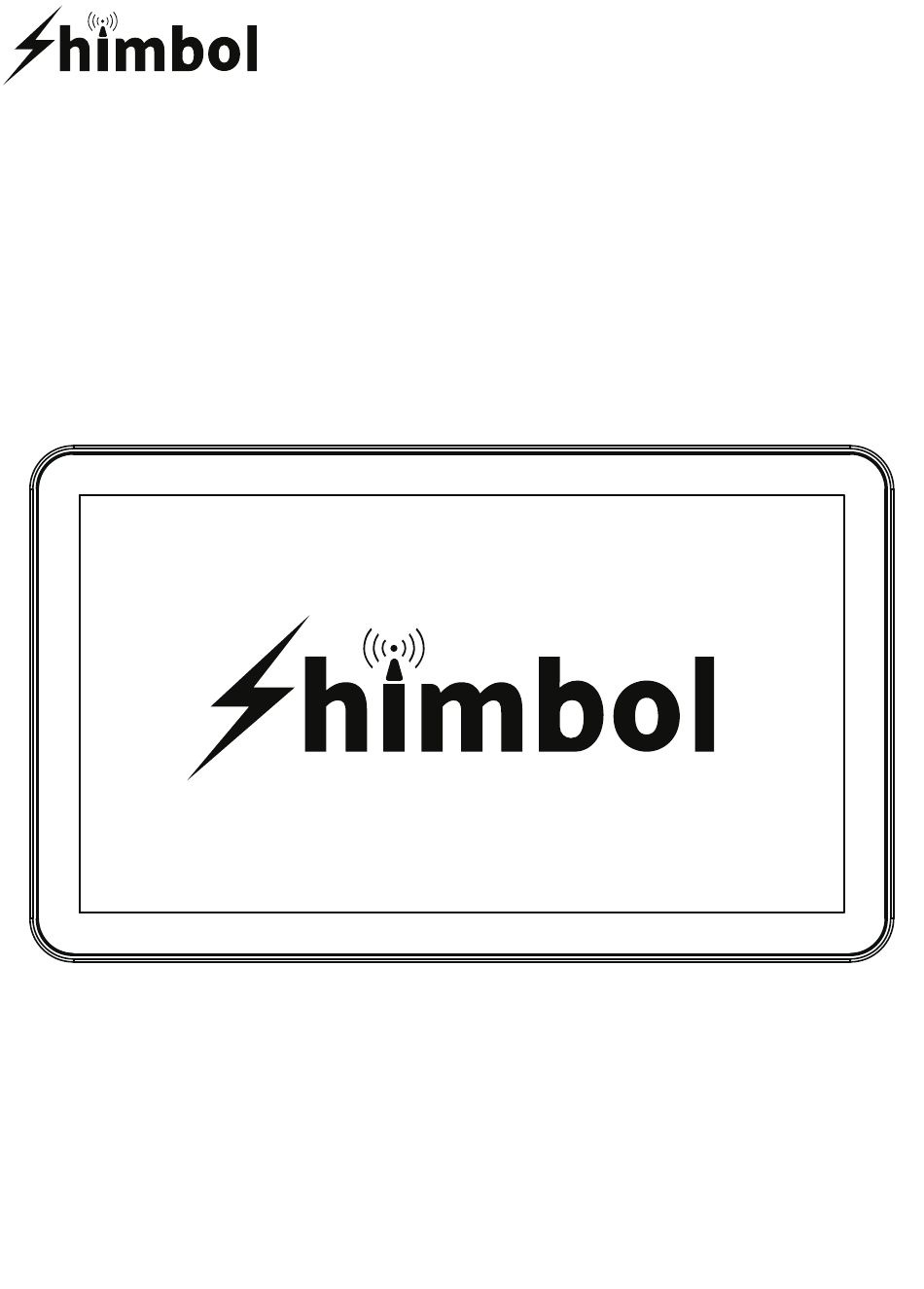

- Page 1 Video Recording Monitor Memory Ⅰ Instruction Manual Shenzhen ZO Video Technology Co., Ltd.
-
Page 2: Packing List
Packing list Monitor TF Card SD card holder User Manual Tempered Screen Protector User Manual 30cm HDMI Cable Hot Shoe Mount Monitor*1 30cm HDMI Cable*1 TF Card*1 Tempered Screen Protector*1 SD card holder*1 User Manual*1 Hot Shoe Mount*1... -
Page 3: Buttons And Ports
Buttons and Ports Power ON/OFF Button Custom Function Buttons 3.5mm Headphone Jack HDMI Input DC Input SD Card Slot 1/4” -20 Thread Hole USB Upgrade Port NP-F Battery Plate Heat Dissipation Port... -
Page 4: User Interface
User Interface 3840*2160 30p 7.6V Resolution Fan Status Focus Menu System Settings Zoom Power Indication Exposure Menu Playback Button SD Card Waveform Menu Color Menu Audio Meter 3D-LUT Marker Menu Recording & Playback REC Button Menu... - Page 5 User Interface 3840*2160 30p 3840*2160 30p 7.6V 7.6V Scope menu Marker menu Waveform RGB-paral Histogram Vector Safe area Grip Anamorphic Next Opacity Safe area Color Width Ratio Scope Menu Marker Menu 3840*2160 30p 3840*2160 30p 7.6V 7.6V Focus menu Exposure menu peaking Zoom Zebra...
-
Page 6: Function Instruction
Function Instruction 1.Short press the power on/off button to turn on the monitor, long press 3 seconds to turn it off. 2.3D-LUT import method 3840*2160 30p 7.6V Color menu 3D-LUT Gamma ColorTemp LUT Selection Preset User LUT file XXXXXXXXXX Import Delete Place the LUT file in the LUT folder on the SD card and insert the SD card into the monitor... - Page 7 Function Instruction 3.The Way to Customize the File Name 3840*2160 30p 7.6V Recording and playback menu Recording Playback Mode Trigger User Timecode Recording Definition File naming A -S CE - 0 0 1 Trigger/TimeCode camera synchronization recording function This position represents the camera position, click up and down to adjust This position represents the shooting site, click up and down to adjust This position represents the number of cameras, it is not adjustable and the digital number increases with the number of shootings...
- Page 8 Function Instruction 4.RGB Gain and Offset Control Functions 3840*2160 30p 7.6V Reset RGB gain Display 100% RGB gain 100% Setting 100% Reset RGB offset Function 100% RGB offset 100% System 100% 5.Formatting SD Cards 3840*2160 30p 7.6V Display Scan Normal Underscan Backlight Setting...
- Page 9 Notes 1.Correlation of Function States Zoom, Anamorphic, Waveform, these three functions can only be opened one at a time. Such as when the Anamorphic function is open, has opened the Zoom or Waveform will be forced to close 2.SD Card Identification and Use Problems 2.1 The SD card of this product does not support hot-swapping, if the SD card is inserted and removed during use, causing abnormalities such as the card cannot be recognized and the screen interface cannot be operated, please...
-
Page 10: Technical Parameters
Technical Parameters Model No.: Memory Ⅰ DC In , HDMI input, 3.5mm Headphone out, SD card Interface: slot, Type-C Power Supply Method NP-F / DC IN Input Voltage DC 6.5V-16.8V Power Consumption <9W Screen Size 5.5''TP Brightness 2000cd/m² Contrast Ratio 1200：... - Page 11 Tel+86 0755-21004986 URL:www.zeroone-video.com Address:2C, 2nd Floor, Building 6, Longbi Industrial Park No.27 Dafa Road, Bantian Street, Longgang District, Shenzhen Shenzhen ZO Video Technology Co., Ltd.
