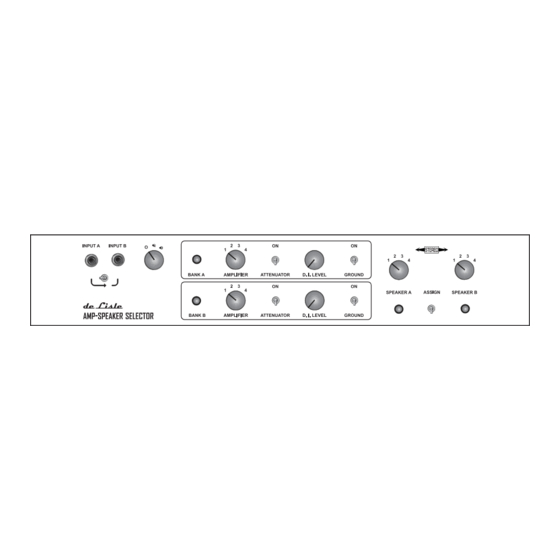

De Lisle Amp-Speaker Selector 8x8 Stereo Deluxe Manual

De Lisle Amp-Speaker Selector 8x8 Stereo Deluxe Manual

Advertisement

Thank you for purchasing the de Lisle Amp-Speaker Selector 8x8 Stereo Deluxe! Your workflow is about to get a lot more streamlined!
Please read and understand the contents of this manual before connecting your new 8x8 Deluxe to any of your gear.Should you have
anyquestions, please contact us directly. We're happy to help!

SAFETY INSTRUCTIONS

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the product.
1)
Read these instructions.
2)
Keep these instructions.
3)
Heed all warnings.
4)
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8)
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9)
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10)
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from
the apparatus.
11)
Only use attachments/accessories specified by the manufacturer.
12)
Unplug this apparatus during lightning storms or when unused for long periods of time.
13)
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
14)
This product should be operated only from the type of power source indicated in this manual.

WARRANTY

de Lisle Guitar Company warrants this product to be free from manufacturing defects in material and workmanship under normal use for the
life of the product. If service is required, please contact de Lisle Guitar Company directly. This warranty is void if the product has been:
a) Damaged through misuse, negligence, or abuse. b) Modified or repaired by anyone other than de Lisle Guitar Company. c) Damaged because
it is improperly connected to any other equipment.
Note: This warranty does not cover: a) Ordinary adjustments as outlined in this manual which can be performed by the customer. b) Damage to
equipment not properly connected to the product. c) Any cost incurred in shipping the product for repair. d) Damage to the product not used in
the USA.
This warranty is not transferable and only applies to the original purchase. Any implied warranties, including the warranty of merchantability, are
limited in duration to the period of this expressed warranty and no warranty whether expressed or implied shall apply to the product thereafter.
Under no circumstance shall de Lisle Guitar Company be liable for special or consequential damages arising from the use of this product, or for
any delay in the performance of this warranty due to causes beyond our control. Some states do not allow limitations on how long an implied
warranty lasts and/or do not allow the exclusion or limitation of consequential damages, so the above limitations on implied warranty and
consequential damages may not apply to you. This warranty gives you specific legal rights. You may have other rights that vary from state to
state.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Amp-Speaker Selector 8x8 Stereo Deluxe and is the answer not in the manual?

Questions and answers

Summary of Contents for De Lisle Amp-Speaker Selector 8x8 Stereo Deluxe

  • Page 1 Lisle Guitar Company warrants this product to be free from manufacturing defects in material and workmanship under normal use for the life of the product. If service is required, please contact de Lisle Guitar Company directly. This warranty is void if the product has been: a) Damaged through misuse, negligence, or abuse.
  • Page 2 CONNECTIONS: SPEAKER A/B Connect to your speaker cabinets. D.I. A/B After-amp D.I. can be sent to DAW for loading IRs/cab sims. ATTENUATOR A/B OUT Connect to your attenuator’s output jack (e.g. “To Speaker”). ATTENUATOR IN A/B Connect to your attenuator’s input jack (e.g. “From Amp”). AMP OUTPUT A/B Connect to the speaker output jacks of your amplifiers.
  • Page 3 • Premium 2U Rack Chassis with Laser Etched Panels • 9VDC 1A Power Supply Included (750mA Minimum Required) • Hand-Wired • 150W Maximum Power Per Amp • Lifetime Warranty DE LISLE GUITAR CO. 49 BOONE VILLAGE SUITE 167 ZIONSVILLE, IN 46077 http://www.delisleguitar.com...
  • Page 4 PRECAUTIONS DO NOT make or break any rear panel cable connections with the 8x8 Deluxe amplifers or attenuators powered on. DO NOT use this device as a load box. Always be sure to have a proper load connected whether it is a speaker, load box or attenuator with a built-in load. DO NOT exceed the maximum power rating of the device.
