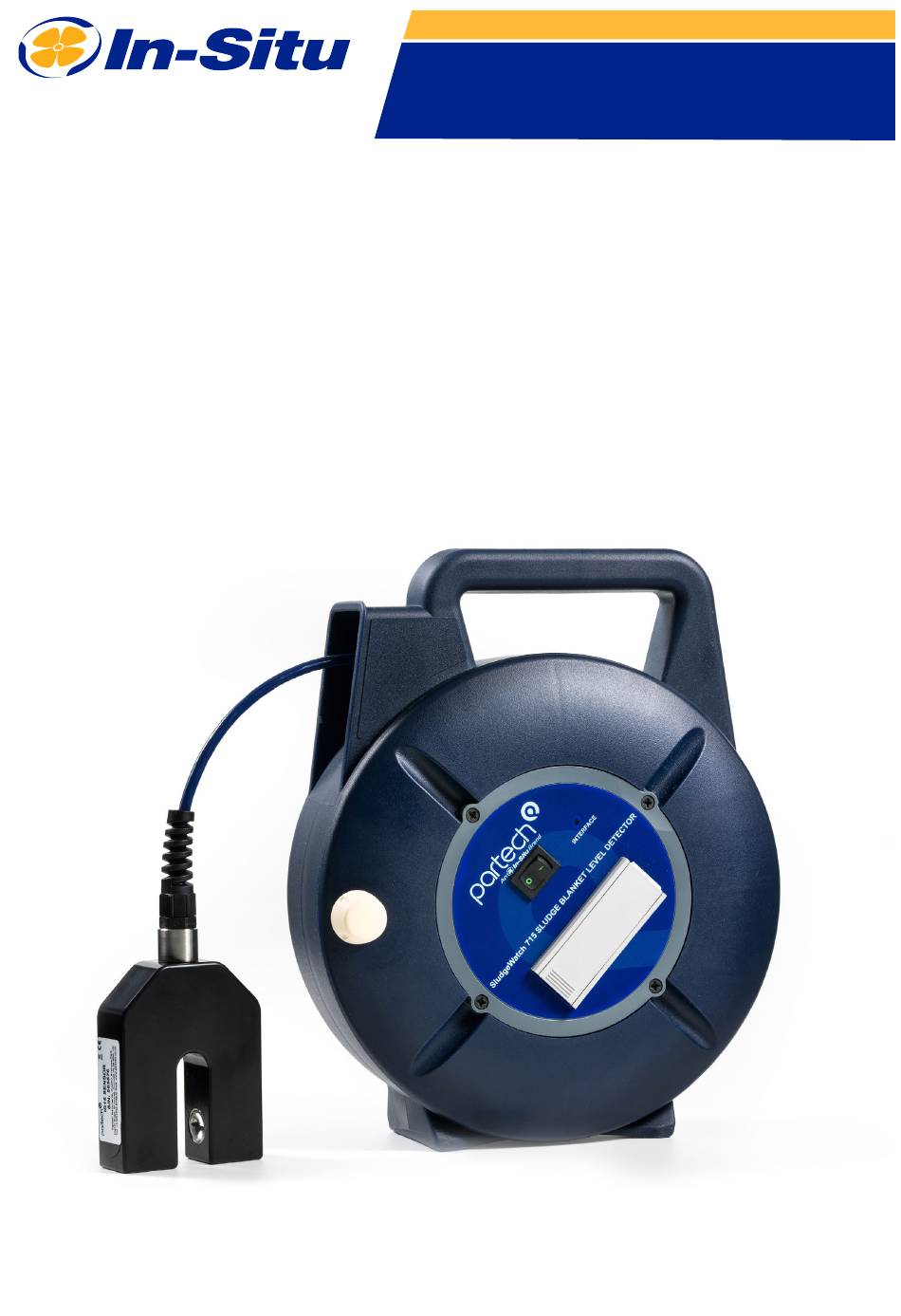

- Page 1 SludgeWatch 715 Portable Sludge Blanket Detector Operator’s Manual 2023-11-01 | 156770...
-
Page 2: Technical Support
Your equipment was carefully inspected before shipping. Check the equipment for any physical damage sustained during shipment. Notify In-Situ and file a claim with the carrier if there is any such damage; do not attempt to deploy or operate the equipment. -
Page 3: Table Of Contents
Intended Use ..................................11 Technical Specifications .......................... 12 General Specifications ................................. 12 Sensor Specifications ................................12 Serial Number & Part Numbers ......................13 Serial Number & Part Number Location........................13 Sensor Type & Part Number .............................. 13 Declarations of Similarity ........................14 www.in-situ.com... -
Page 4: Introduction
Introduction Instrument Description The SludgeWatch 715 Portable Sludge Blanket Detector is designed for spot-checking sludge interface levels in settling tanks. It works by measuring the change in the level of suspended solids as the sensor is lowered into the tank. -
Page 5: Instrument Parts
Instrument Parts 1. Sensor 2. On/off switch 3. Cable reel handle 4. Cable 5. LED light 6. Battery compartment www.in-situ.com... -
Page 6: Getting Started
Information subject to change without notice. In-Situ, In-Situ logo, “Water Simplified”, VuLink, RDO, RuggedCable, TROLL, BaroTROLL, HydroVu, VuSitu, Baro Merge, and Win-Situ are trademarks or registered trademarks of In-Situ Inc. ©2023. All rights reserved. This product may be covered by patents identified at www.in-situ.com/patents. - Page 7 Clean sensor with a mild detergent to clean soft cloth and mild the cable. detergent. Rinse with clean water. Never fully immerse the entire SludgeWatch unit in liquid. Learn More View additional specifications, compliance information, and detailed instructions at www.in-situ.com. www.in-situ.com...
-
Page 8: Safety
• Turn off the unit after use. Intended Use The SludgeWatch 715 Portable Sludge Blanket Detector is designed to be safe in these conditions: • Operable temperatures of 0° to 50° C (32° to 122° F) If the equipment is used in a manner not specified by the manufacturer, the protection provided for the equipment may be impaired. -
Page 9: Technical Specifications
(3.7 x 1.6 x .9 in) 95 x 15 x 25 mm IR15 0-10,000 mg/l 15 mm 5,000 mg/l (3.7 x .6 x .9 in) 95 x 8 x 25 mm 0-30,000 mg/l 8 mm 15,000 mg/l (3.7 x .3 x .9 in) www.in-situ.com... -
Page 10: Serial Number & Part Numbers
Sensor Type Part Number SludgeWatch 715 Portable c/w IR100 sensor (1.0 m marking) 107800 SludgeWatch 715 Port able c/w IR40 sensor (1.0 m marking) 230484 SludgeWatch 715 Portable c/w IR15 sensor (1.0 m marking) 107790 SludgeWatch 715 Portable c/w IR8 sensor (1.0 m marking) 141300 SludgeWatch 715 Portable c/w IR100 sensor (3.0 ft marking) -
Page 11: Declarations Of Similarity
• The UKCA mark is affixed accordingly. David A. Bossie Regulatory Compliance Manager In-Situ, Inc. July 13, 2022 Copyright © 2015 In-Situ Inc. This document is confidential and is the property of In-Situ Inc. Do not distribute without approval. www.in-situ.com... - Page 12 EN 63000:2018 The CE mark is affixed accordingly. David A. Bossie Regulatory Compliance Manager In-Situ, Inc. July 22, 2022 Copyright © 2015 In-Situ Inc. This document is confidential and is the property of In-Situ Inc. Do not distribute without approval. www.in-situ.com...
- Page 13 EN 63000:2018 The CE mark is affixed accordingly. David A. Bossie Regulatory Compliance Manager In-Situ, Inc. July 22, 2022 Copyright © 2015 In-Situ Inc. This document is confidential and is the property of In-Situ Inc. Do not distribute without approval. www.in-situ.com...
- Page 14 • The UKCA mark is affixed accordingly. David A. Bossie Regulatory Compliance Manager In-Situ, Inc. July 13, 2022 Copyright © 2015 In-Situ Inc. This document is confidential and is the property of In-Situ Inc. Do not distribute without approval. www.in-situ.com...
- Page 15 • The UKCA mark is affixed accordingly. David A. Bossie Regulatory Compliance Manager In-Situ, Inc. July 13, 2022 Copyright © 2015 In-Situ Inc. This document is confidential and is the property of In-Situ Inc. Do not distribute without approval. www.in-situ.com...
- Page 16 Product Description: The SludgeWatch 715 provides a simple method of spot checking the sludge blanket level in a wide variety of settlement tanks. The sensor is attached to a reel making the unit portable. This is used primarily at wastewater treatment plants.
- Page 17 Product Description: The SludgeWatch 715 provides a simple method of spot checking the sludge blanket level in a wide variety of settlement tanks. The sensor is attached to a reel making the unit portable. This is used primarily at wastewater treatment plants.
- Page 18 • The UKCA mark is affixed accordingly. David A. Bossie Regulatory Compliance Manager In-Situ, Inc. July 13, 2022 Copyright © 2015 In-Situ Inc. This document is confidential and is the property of In-Situ Inc. Do not distribute without approval. www.in-situ.com...
