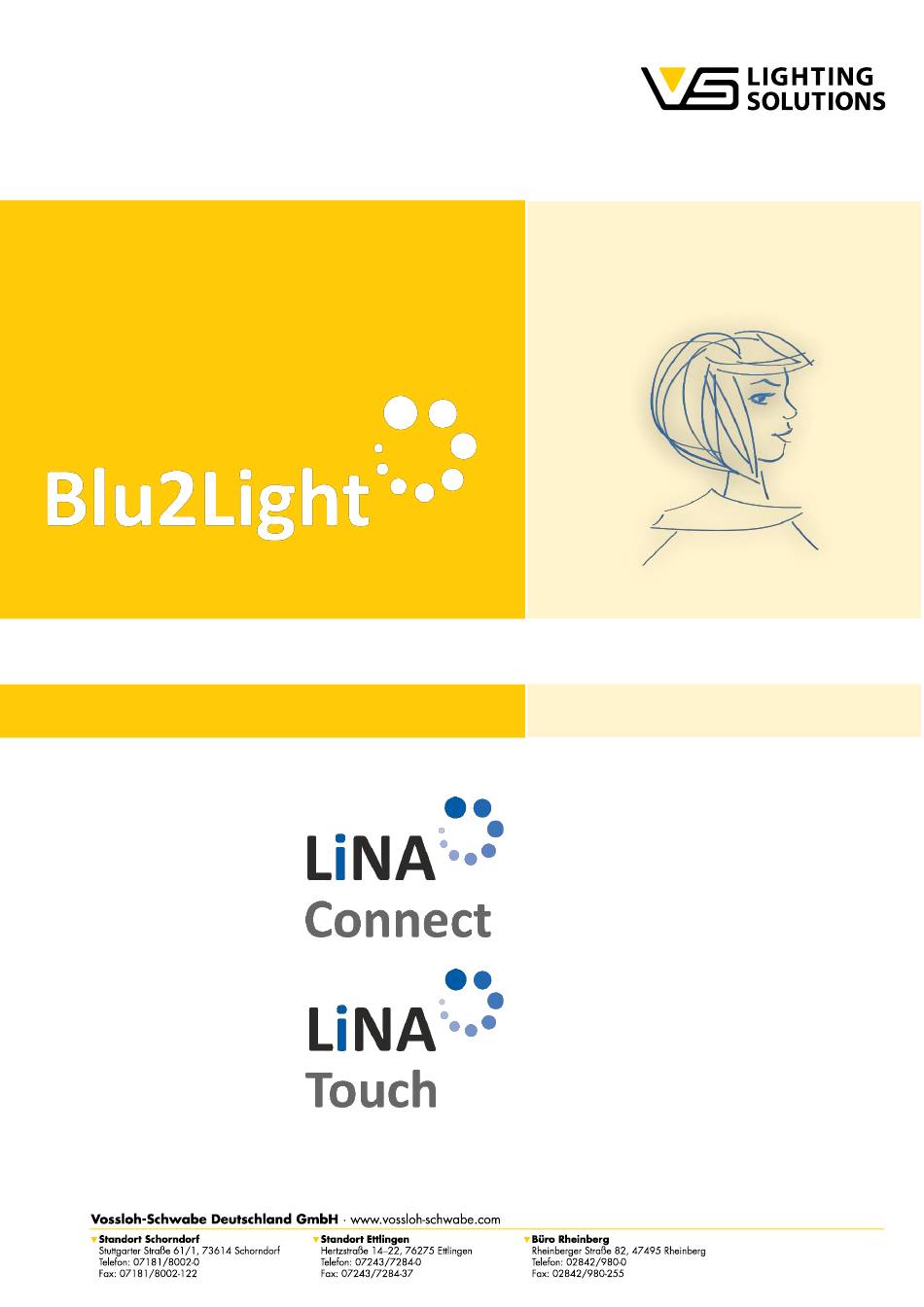

- Page 1 Operating Manual LiNA Connect / LiNA Touch Programming the Blu2Light System Using LiNA Connect Operating the Blu2Light System Using LiNA Touch...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Notes ........................3 Legal notice ........................3 Downloading the APP ....................3 Preperation .......................... 4 How to create a simple system ....................5 Using an automation ......................21 setting up the tunable white function ..................23 implementing a DigiLED (186839) + manual configuration .......... -
Page 3: General Notes
© Copyright 2022 by Vossloh-Schwabe. All rights reserved. Without the prior written consent of Vossloh-Schwabe, no part of this document may be reproduced or transmitted in any form or using any means, be they electronic or mechanical; nor may photocopies or any other kind of record be made, nor may any system for information storage or restoration purposes be used. -
Page 4: Preperation
PREPERATION Make sure that all your Blu2Light nodes are powered and that the QR codes of the nodes are ready, for example stuck on your floor plan! Figure 1... -
Page 5: How To Create A Simple System
HOW TO CREATE A SIMPLE SYSTEM Open the LiNA Connect app and click on the (+) in the lower right corner to create a project, then name your project and create a system with the same procedure. Now scan the desired QR code by pressing the (+) again! Green = everything is ok. - Page 6 Figure 3 Orange = already used in another system...
- Page 7 Figure 4 Except for a gateway, you have the options "Name", "Power On Behavior" and "Properties" furthermore you can choose the color for every node which it should be displayed in, this helps with the overview in big Projects and also looks fancy!
- Page 8 Figure 5 Select "Switch on with last state" in the "Power On Behavior" tab. Figure 6 Now the node uses the last state as Power On behavior after power was cut off (works only for 10.000 cycles).
- Page 9 Figure 7 Select a node and select "Express Setup" to start automatic setup.
- Page 10 Figure 8 A rotating circle at "DALI addressing" indicates an active DALI search.
- Page 11 Figure 9 If the DALI search is completed, all DALI devices should be displayed, and a functional group should have been created.
- Page 12 Figure 10 Now you can create scenes according to your wishes, "50%", "Off" and "On" are the most common ones. Figure 11...
- Page 13 Figure 12 The master dimmer must always contain a value since it is accessed during a scene action.
- Page 14 Figure 13 If all scenes are configured as desired, only thing left is to generate a user interface in the Touch App, for that, switch to the tab "LiNA Touch".
- Page 15 Figure 14 Here you can select an interface via the (+), depending on the scope of the desired functions. Unused touch panels will not be displayed in the LiNA Touch app, if more touch panels are needed, fields can always be added.
- Page 16 Figure 15 Each control panel must now be assigned a function that can later be used in the Touch App.
- Page 17 Figure 16 Once this is achieved, your user interface should look something like this. Figure 17 Now the control panels are assigned to the respective functional groups and (Figure 18) to the respective scenes via the event configuration using drag & drop.
- Page 18 Figure 18 Figure 19 In the last step, press and hold the respective touch profile you want to export in the main window of the Connect app and select "Export". Now you are free to scan the generated QR code with another device using the LiNA Touch app or to export it in another way by pressing "Share".
- Page 19 To scan the QR code, press the QR code symbol in the upper right corner of the LiNA Touch App and scan the respective QR code. Figure 20...
- Page 20 Figure 21 Congratulations! Your basic system is now fully operational and can be operated via the Touch App!
-
Page 21: Using An Automation
USING AN AUTOMATION To set up an automation, return to the overview shown in Figure 9. Now press and hold the control panel, Functional Group. A window called "Setting/Parameters" appears, offering the following choices: Sets the dimming speed of the stored scene in a DALI value Fixed (0-254) Here the light level for the... - Page 22 If the "Semi auto mode" is activated, a "return to auto" time must be set, this defines when automatic mode. Here you define the state to which the system should return as soon as it is in auto mode again. once you have made all the settings, press "Save", now the configuration should have been applied to the active system.
-
Page 23: Setting Up The Tunable White Function
SETTING UP THE TUNABLE WHITE FUNCTION Figure 22 Add your node to the system and enter the configuration. - Page 24 Figure 23 Now set it up as you did in the basic configuration. Figure 24 Connect the DALI device to the channels (W=white, WW=warm white) per drag and drop.
- Page 25 Figure 25 In the next step you can configure the scenes you need. And prepare your touch overlay as you did in the Figures 13 – 20.
-
Page 26: Implementing A Digiled (186839) + Manual Configuration
IMPLEMENTING A DIGILED (186839) + MANUAL CONFIGURATION For scanning in the Digi LED 4CH please refer to the 3. Step of the manual until you reach figure 7 of the manual. Figure 26 After that you will see that channel 1-4 have already been recognized by the LiNA Connect App. - Page 27 Figure 27 As you probably already have mentioned, you can’t do an express setup here. Therefore you must create a Functional Group all by yourself! Here you must select, how many channels your modules have. In My case they are RGBW.
- Page 28 Figure 28 In the next step you must connect every channel of the DigiLED (R, G, B, W) to every channel of the Functional Group (also applicable for other systems). Figure 29 Now we configure our scenes as we did for a simple configuration (Figure 10-12). For the DigiLED you have the option to either use the channel overview or change the type of the scene and use...
- Page 29 RGBW directly, this could make the selection of colours easier. Which should look something like this: Figure 30 If you configured every scene you like, go back to Figure 16 and onward to move on.
-
Page 30: Daylight Control Explained
DAYLIGHT CONTROL EXPLAINED Go to the tab „ Sensor “ to see the possible settings. Activate the sensor by using this switch. If using a normal gateway or one in bridge mode, you must activate “send always to mesh” to track or forward sensor Information. - Page 31 When finished configurating either press the upper start for manual regulation or the lower one for automatic. If clicking on event configuration, you can add the light regulation to the Functional groups in your system.
-
Page 32: How To Use Motion Detection
HOW TO USE MOTION DETECTION Figure 31 Go to the tab “Sensor” and switch on motion detection, if using a normal gateway or one in Bridge mode, you must activate “send always to mesh” to track or forward Sensor Information. - Page 33 Figure 32 Figure 33 With the “Sensor Test Mode” you can try out your sensor before installing. While active, the sensor indication LED blinks when detecting movement and the circle in “Figure 29” gets filled, it resets every time movement is detected.
- Page 34 Figure 34 The only thing left to do is to couple the “Motion” function to the “Functional Group” you want it, in the event configuration of the sensor.
-
Page 35: Using Sequences
USING SEQUENCES Figure 35 Go to the Tab „Sequences” press the (+) on the lower right corner and name your sequence as you wish. - Page 36 Figure 36 On the left side you can see all scenes you created before. Figure 37 You can simply add each scene by drag and drop.
- Page 37 Figure 38 If you added every Scene you need/want, you can configure how long every scene will be used until the next will come up. Figure 39 By clicking on the the sequence will be in a loop forever.
-
Page 38: Add And Use Timers
10 ADD AND USE TIMERS Figure 40 Go to the tab „Timers” and add one by clicking on the (+) in the left lower corner. - Page 39 Figure 41 Now you have a couple of settings to choose from, “once, weekly, daily”, with different sub menus. Figure 42 For once, you can select a date and time when it should work.
- Page 40 Figure 43 For weekly, you can select between days and time. Figure 44 For daily, you can select only time for a daily use.
- Page 41 Figure 45 After setting and selecting the Timer the only thing left is to connect the timer to the Functional Group in the event configuration.
-
Page 42: Using The Air Sensor
11 USING THE AIR SENSOR Figure 46 Our air sensor has the options to be used as a motion or brightness sensor which can be configured same, as described in chapter 6 and 7. - Page 43 Figure 47 In the Tab „Air“ you can see the values of CO , humidity in %RH and temperature in °C Figure 48...
- Page 44 Figure 49 For the CO Level, temperature and Humidity, there is an option to change the threshold as well as the refreshing interval of all of those. Underneath you have the option to switch on and off the air quality indicator and define the orange and red threshold, the LED is turned on in default.
- Page 45 Figure 50 For switching on and of air conditioning, we have 2 digital inputs where we can detect openings and closings of a window. This function can only be used in an cloud solution, as well as the usage of the air sensor values (CO , humidity etc.)
-
Page 46: Using The Blu2Light Relais
12 USING THE BLU2LIGHT RELAIS Figure 51 Start scanning in your node and go into the settings as in “Figure 2”. Now you can either use the relay mode or the blinds mode by changing the wiring on the relay itself and set the mode to the function you need. - Page 47 Coming Soon Figure 52 By running down your blinds the relay will stop a time in which your blinds are reaching the end of the rail. Also you can manually change the time with a slider. Coming Soon Figure 53 Please have in mind that by changing the mode, you reset all the functional groups connected to your relay!
-
Page 48: Using The B2L Connect Pb4
13 USING THE B2L CONNECT PB4 Figure 54 By scanning in the PB4 and clicking on the Node you will notice that you have the Option to add another En Ocean Switch. This is meant to make integration easier for you! You can also add Timers and if activated, look up the Debug option. - Page 49 Figure 55 If you don’t need the options in “Figure 50” you can simply open your Event configuration. There you will now see the inputs of your Connect PB4.
-
Page 50: Including An Blu2Light Repeater
Figure 56 By connecting the nodes to the functional group, you want, you now can decide what action should be triggered by pressing the switches, connected to the output according to the scenes you configured in “Figure 10” to “Figure 12”. 14 INCLUDING AN BLU2LIGHT REPEATER For better connection between the nodes, you can use a repeater, this repeater can only be used to strengthen the mesh and is simply scanned in. -
Page 51: Do's And Don'ts
15 DO’S AND DON’TS 15.1 DO’S • Always use the latest provided app and firmware • Read the documentation carefully. • Always create a backup after configuration • In buildings in construction, make sure you have a propper and uninterrupted mains supply. •... -
Page 52: Don'ts
15.2 DON’TS • Do not configure all color values to zero for a scene. • Do not add functional groups to a light regulation on a node that has no own FG and no physical driver connected. • Do not use long RTA (return to auto) times. •... -
Page 53: Informal
15.3 INFORMAL • Each functional group has its own state • Manual • Auto • Sequence • The “Auto” state has a sequence of steps, based on the configuration not all of them might be reached • Active • Passive •...
