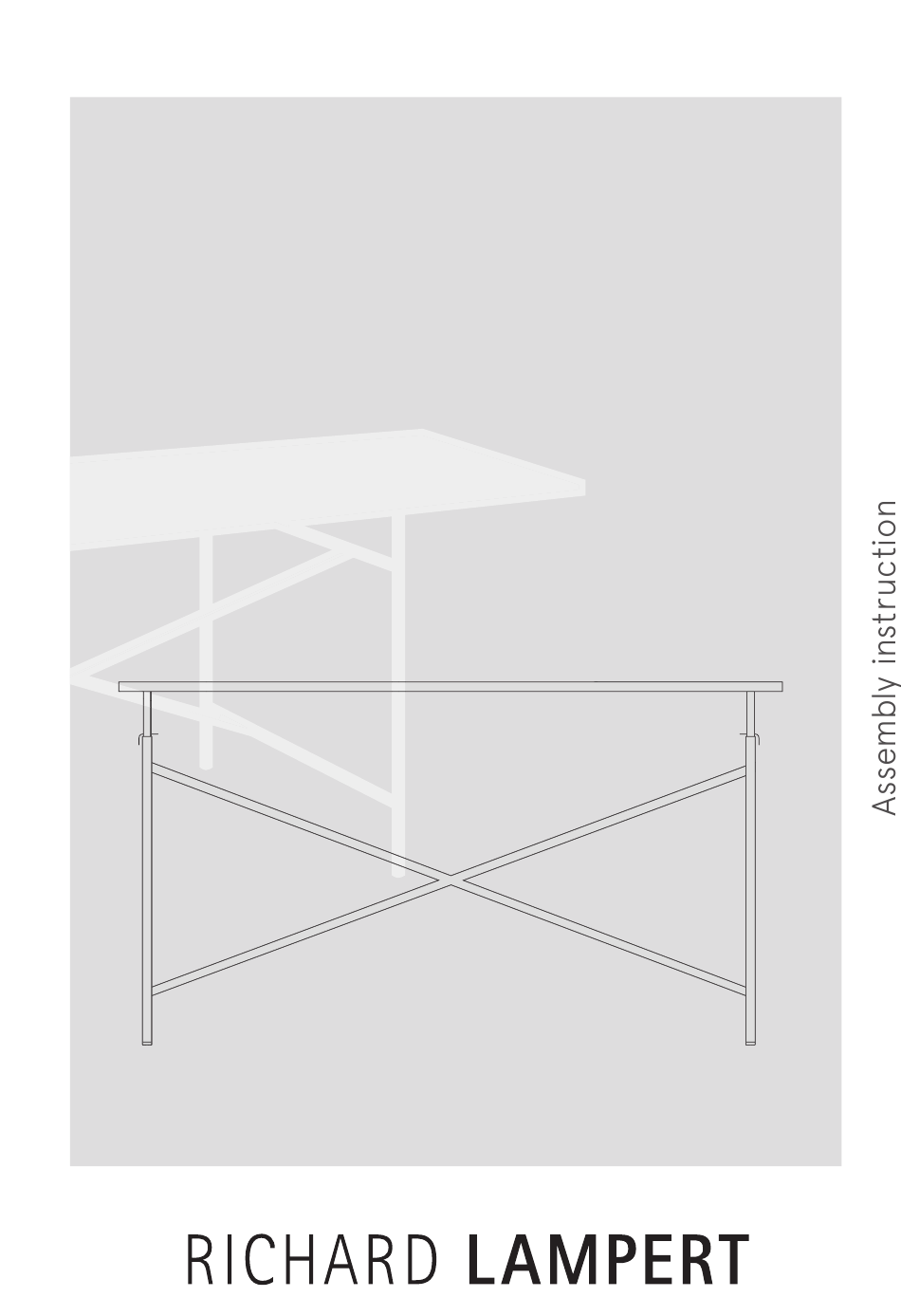

- Page 1 Table Frame EIERMANN 1...
- Page 2 All right? 4 pc. Threaded 4 pc. Threaded 4 pc. Rubber stop- 4 pc. Allen bolts 4 pc. Adjustment stoppers, dia. stoppers, dia. pers for upper table M6 × 30 mm keys 20 mm for lower 16 mm for upper frame extensions table frame table frame ext...
- Page 3 Ready, set, go … Push the four threaded stoppers into the longer ends of the left and right leg frames. Have two Allen key bolts , one of the leg frames and the table cross-brace to hand. 2. Attention: when unscrewing the Allen bolts from the cross-brace, be aware of the unusual angle in the next step.
- Page 4 10. Place the table top on the frame and check whether the leg frames are square. The frame can be squared manually by carefully pulling the leg frames apart or pushing them together. 11. Finally, tighten up all four Allen bolts Please note: After tightening the bolts, the table frame may not necessarily be totally straight.
