Hotspot FULHAM FHSAC1-UNV-40C-HL Manual

• LED Driver with integrated emergency backup
• Universal Voltage: 120-277V , 50/60Hz
• Output Wattage: 40W Max.
• Output Current: 250-1400mA
This Driver Will Operate The Following LED Modules: Any LED module designed to accept input voltage range of 11-55VDC and can operate
up to current of 250-1400mA.
General Specifications
Input Voltage
Input Current
Input Power
Power Factor
THD
Standby Input Power
Driver Type
Output Current
Output Voltage Range
Output Power
Number of Output Channels
Dimming Controller Type / Dimming Range
RFI/EMI
Output Type
Battery Type
Battery Capacity Available
Battery Recharge Time
Test Switch Remote Mounting Distance
Max. Case Temperature
Ambient Operating Temperature Range
Sound Rating
Input Surge Protection
Protections
Service Life
Approvals / Class

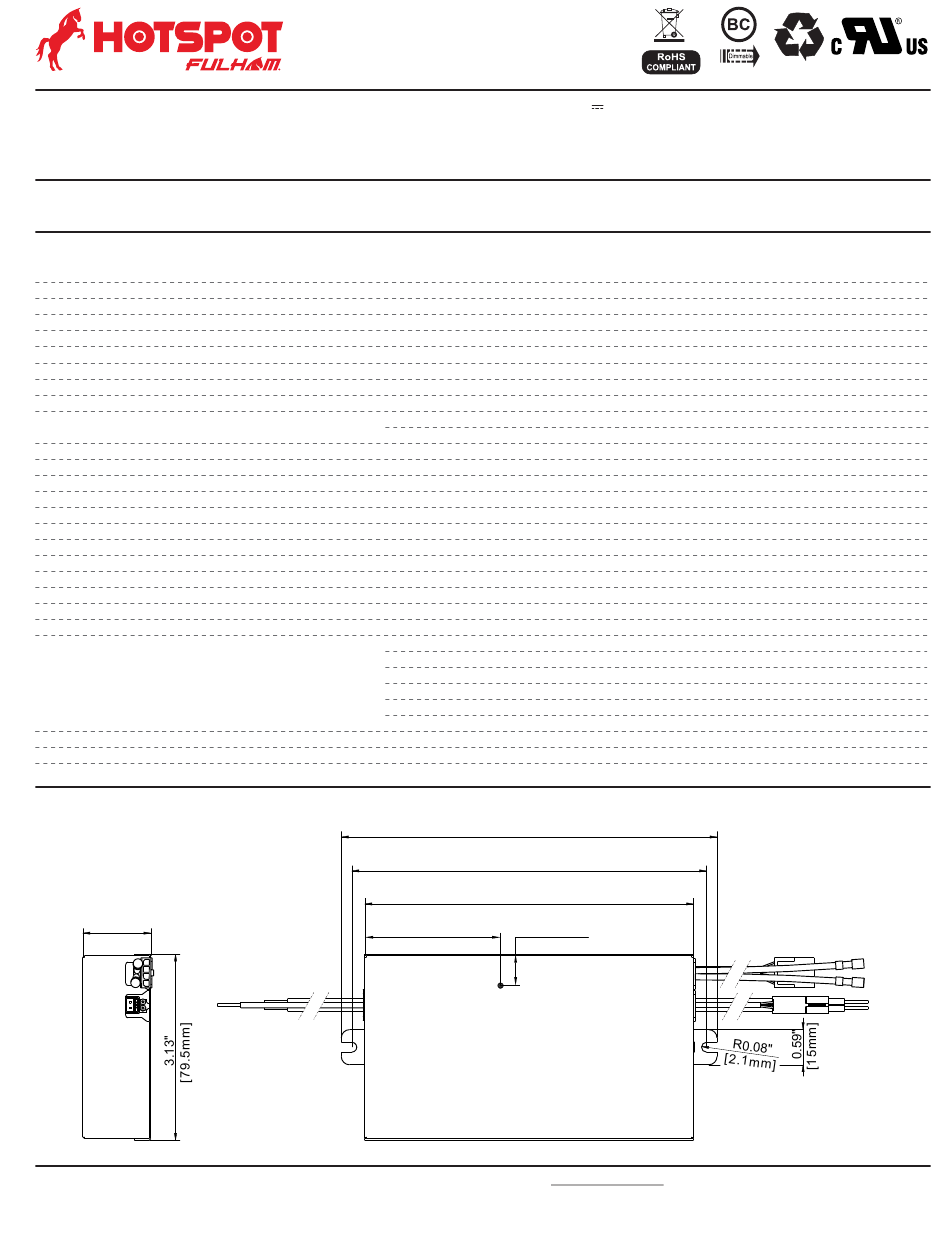

MECHANICAL DATA

MECHANICAL DATA
1.14"
[29mm]
Fulham extends a limited warranty to the original purchaser or first user for a period of 5 years @ Tc 63°C from the date of manufacture when properly
installed and operated under normal conditions of use. For complete terms and conditions, please refer to the Warranty Center at www.fulham.com.
Specifications subject to change without notice.
FHSAC1-UNV-40C-HL
Specifications
•
~
•
•
•
120-277VAC, 50/60Hz
0.43A @ 120VAC
54W
>0.9
<20%
<0.85W
Constant Current
250-1400mA [ TPSB 100 ( Program Box ) , Figure 1 ] ; Record New Setting On 1"x0.5" Label
11-28VDC ( 250-1400mA ) , 11-40VDC ( 250-1000mA ) , 11-55VDC ( 250-730mA )
40W Max. ( Figure 1 )
5W or 10W @ Emergency Mode (Min. 180 Minutes @ 5W, Min. 90 Minutes @ 10W)
1 Channel
0-10V / 100% - 1%,0% ( Figure 2 ) / Custom Dimming Curve / Dimmed To Off
FCC Part 15A Non-Consumer
LED Class 2
LiFePO4 6.4VDC (Part# FHSBATL2-3.2L)
3200mAh
12 Hours
20' (6m) Max.
85°C (185°F)
0°C to 48°C(32°F to 118.4°F)
A
Line-Neutral 3kV , Line & Neutral-Gound 6kV , Ring Wave ANSI/IEEEC62.41
Input Current Protection
Output Open Circuit Protection
Overload Protection
Over Temperature Protection
Output Short Circuit Protection
Output To Ground Short Circuit Protection
50,000 hours
RoHS , cURus , CEC , Dry or Damp Locations
Output voltage range of 11-55V
Compact case with side leads
Meets UL 924 & NFPA 101
Type HL
6.32"
[160.5mm]
5.96"
[151.5mm]
5.53"
[140.4mm]
2.56" 0.59"
[65mm] [15mm]
Tc
FHSAC1-UNV-40C-HL
LiFePO4
MECHANICAL DATA
100%-1%,0%
Case Tolerance=±0.02"
E313578
Page 1 of 8
2023-956 Rev A
