Eltek TU1106 - GenII AQ211 comprehensive portable
air quality logger with internet connectivity
AQ211 is part of the Eltek family loggers and can be used alongside any other Eltek
hostile place and away from any risk of water ingress. The unit environmental rating
is IP20.
AQ211 is supplied with a detachable antenna. The antenna should remain installed
at all times.

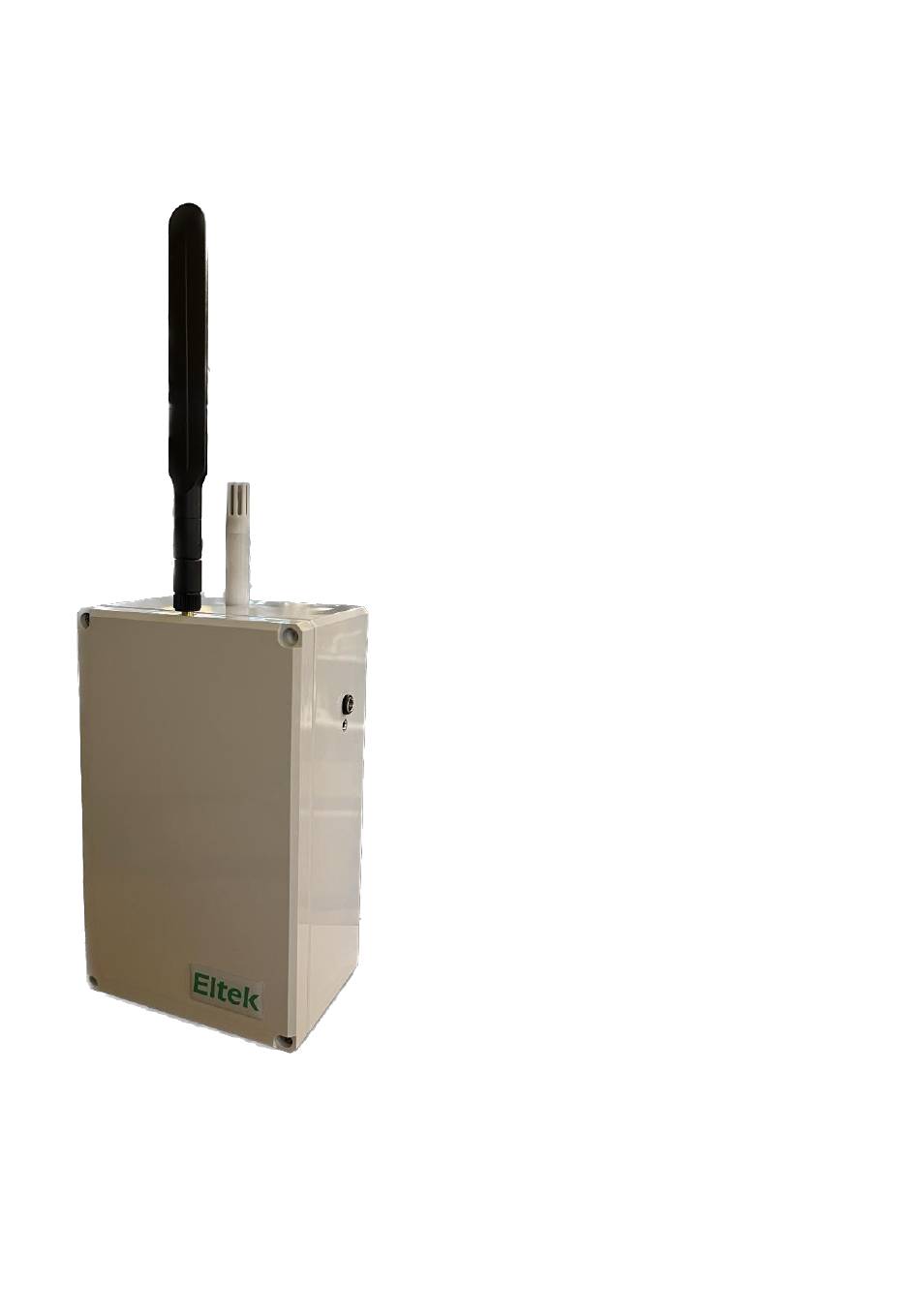

GenII logger. AQ211 is a comprehensive portable
air quality monitor for primarily indoor use. For
outdoor use a secondary enclosure (type
WBT/AQ) must be used - P.O.A, refer to Eltek.
The compact monitor is normally AC mains
powered. A built-in Li-ion rechargeable back-up
battery is included.
The internal sensors are:
1 x CO
2
1 x CO
1 x NO
2
1 x VOC
3 x Particulate sizes
1 x Temperature within the enclosure
1 x case-mounted RH and
temperature sensor
2 x auxiliary electrode voltages
The particulate sensing module incorporates a
fan unit to control a continuous volume of air for
sampling.
The robust polycarbonate enclosure is fitted with
left hand side ventilation (exhaust) apertures. The
ventilation holes should never be obscured -
doing so can affect the measured values from the
various sensors.
The unit should be located in a cool, dry, non-
0/5000ppm
Page 1
