- Page 1 IN220800660V01_US 830-641V81 Smart Curtain IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTION...
- Page 2 Dear customer, Thank you for purchasing this product. So that your appliance serves you well, please read all the instructions in this user's manual. If you have any questions, please contact our customer care center. Our contact details are below: Country Phone Email...

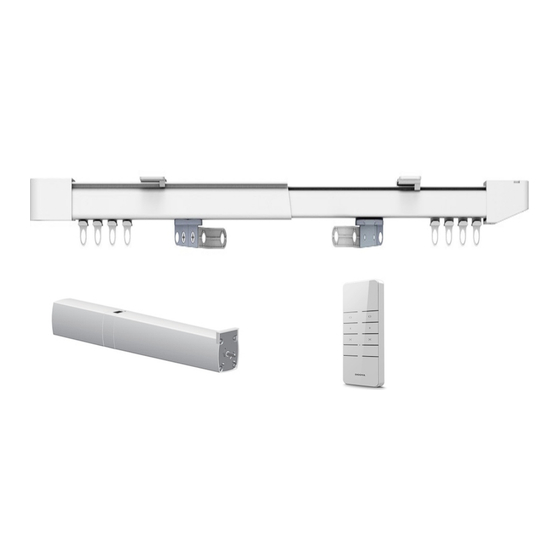

- Page 3 Expansion Rail Installation Manual Ⅰ.Set configuration list Name Name 3.6m/4.6m Electric expansion Screw kit curtain track Small rail top mount bracket accessory Specifications package(Number of bracket:3.6 m / 3pcs,4.6 m / 4pcs) Large rail top mount bracket accessory Plastic accessories package package(Number of bracket:3.6 m / 3pcs,4.6 m / 4pcs) Ⅱ.Specification for the installation of top-mounted bracket...
- Page 4 5.Install multiple top brackets - one at every 6. Install end hooks at both side ends. one metre. The end of the curtain cloth should be hung on the end hook. Install the track 2. Screw the top bracket and both ends. 1.
- Page 5 Curtain motor Instruction DT82TN/NA Features Built-in Preferred Stop Switch Stall Electronic Model Receiver Position Direction Detection Limit Manually Weak- Run/stop By Tuya WIFI Set The Reset To current Pulling WBR3 Open And Factory Mode Switch DT82TN/NA Fabric Close Limits Function 1.
-
Page 6: Button Functions
Button functions OPEN OPEN STOP STOP CLOSE CLOSE Setting Setting button button (P2) (P2) LED LAMP DC2760AC DC2760AC single-channel BACK dual control emitter Technical specification Battery: 3V (AAAx2) Battery life: >2 years Radio frequency: 433.05~434.79MHz Transmitting power: 10 mW Radio range: 100 meters outdoor, 25 meters indoor Working temperature: -5℃~50℃... -
Page 7: Troubleshooting
Troubleshooting Common issues Solution Motor does not work Check the power The emitter cannot be controlled Replace the emitter battery Emitter reverse Perform the “Switch Rotation Direction” External switch reverse Replace the wire sequence of the switch a. Check whether the direction of the emitter and switch is reversed. The curtains do not close together If it is reversed, please follow the “Switch Rotation Direction”... - Page 8 A and B channel use the same operation. The 'flash' is a prompt from the motor LED indicator. During the button combination settings, all key operations need to be completed within 10 seconds - they cannot be completed after 10 seconds. Flash 5times Flash once Flash once...
- Page 9 1,In the status that the limit has been set, after the curtain is moved to the position where the curtain needs to be set, the following operations can be performed. 2,Repeat this operation to cancel the manually set close limit. Flashes once Flashes once Flashes 5times...
- Page 10 Flashes 5 times Flashes once Flashes once All limits are removed. The manually set open and close limits, and the preferred position will be deleted. Press for 1S Press for 1S Press for 1S Flashes 5 times The motor clears all settings and reset to factory status Press for 10S Release button...
- Page 11 1. Ensure curtain motor is connected to the power supply. Hold the setting button of curtain motor for eight seconds - the device enters pairing mode. the green LED the red LED Trigger the device to go off the grid and enter the pending pairing state Flashes three times quick flashing...
- Page 12 4. Click"Small home Appliances" on the left list.A windows will pop up. 5. Click"Curtain(Wi-Fi)" on the right list.(selcet to connect one by one,not support on mutli-device selected)
- Page 13 6.Type the password of your home Wi-Fi, then click 'Next' on the pop-up window. 7. The red LED indicator shows that it will timeout in two minutes. After two minutes, the red LED indicator will automatically turn off if there is no state change. if the pairing is successful, the red LED indicator will turn off. Pairing is successful.
- Page 14 Works with Amazon Alexa. 1.Dowload the Amazon Alexa app. Search for'Amazon Alexa' in the Apple Store or Google Play. 2.Sign in or register a new account. 3.Pair the Amazon Alexa app with Amazon Echo device. (follw the Amazon Echo user manual). 4.Login to the Amazon Alexa app,then click on the left bar 'Sklls'.
- Page 15 b.In the popup page,type 'Smart Life' in the search bar.Click 'Smart Life' in the search results and click'ENBALE'. c. Log in with your 'Smart Life' details. Click 'link now' and click 'Authorise' in the next page. Tips: Ensure you log in with your 'Smart Life' details - not your 'Amazon Alexa' details. d.
- Page 16 6.Enjoying Amazon Alexa Ask your Amazon Alexa to Open and close the curtains in proportion. For example,using these Alexa commands below: -"Alexa,open 'named device' " -"Alexa,close 'named device' " -"Alexa,pause 'named device' " -"Alexa,set the 'named device' to thirty percent" -"Alexa,increase 'named device' by ten percent"...
- Page 17 d.In the new window,select your region and input your Smart Life details.then click 'Link Now' after you assign rooms for devices.which will be listed in the home control page.
- Page 18 4.Enjoy Google Home control You can control your smart devices through Google Home; Take the command'bedroom curtain'as an example,the voice control are: -"Ok Google,open 'named device' " -"Ok Google,close 'named device' " -"Ok Google,pause 'named device' " -"Ok Google,turn on 'named device' " -"Ok Google,turn off 'named device' "...
