Armstrong 70199 Owner's Manual & Safety Instructions

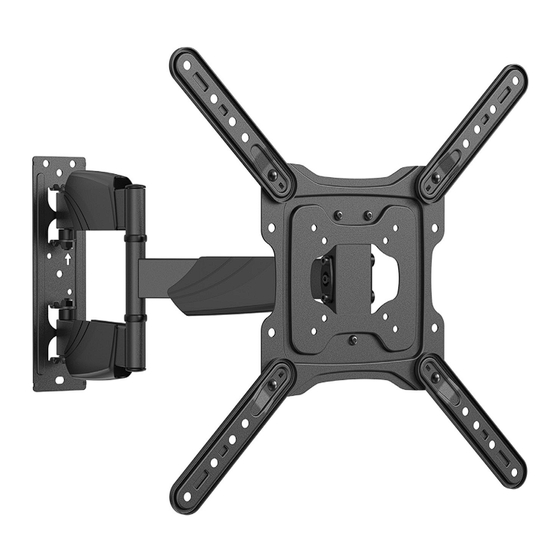

Single stud full motion tv mount
Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
23a
70199

Advertisement

loading

Summary of Contents for Armstrong 70199

  • Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. Visit our website at: http://www.harborfreight.com 70199 Email our technical support at: productsupport@harborfreight.com When unpacking, make sure that the product is intact and undamaged.

  • Page 2: Table Of Contents

    8. Do not assemble or install when tired or when installation, or improper/loose hardware. under the influence of drugs or medication. SaVE tHESE InStrUCtIonS. Page 2 For technical questions, please call 1-888-866-5797. Item 70199...

  • Page 3: Specifications

    VESA Compliance (in mm) 300 x 200 400 x 200 300 x 300 400 x 300 400 x 400 Setup - Before Use: Remove Middle Cover from Wall Mount. Middle Cover Wall Mount Item 70199 For technical questions, please call 1-888-866-5797. Page 3...

  • Page 4: Installation

    Middle Cover. 3. Drill three 3/16" holes 2-1/4" deep into stud at marked locations. Wall Mount (a) D6 Washer (W-C) Wall lag Screw (W-a) Cover (B) Cover (B) Page 4 For technical questions, please call 1-888-866-5797. Item 70199...
  • Page 5 5. Attach Covers (B) to Wall Mount and replace Middle Cover. Ø 3/8" (Ø 10mm) Wall Mount (a) Wall anchor (W-B) Washer (W-C) Cover (B) Cover (B) Wall lag Screw (W-a) Item 70199 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6 Attach Mounting Bracket directly to back of TV using appropriate Screws and Washers. Use included Spacers between the Mounting Bracket and TV as needed to prevent Screws from bottoming out. Screw Washer Page 6 For technical questions, please call 1-888-866-5797. Item 70199...
  • Page 7 2. Attach Mount Bracket to Mounting Holes on TV using appropriate Screws and Washers. Use included Spacers between the Mounting Bracket and the TV as needed to prevent Screws from bottoming out. Screw Washer Item 70199 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8 Wall Mount Bracket. 2. Fasten the Lower Bracket Nut and then the two tops nuts. Tighten securely. Wall Mount top Bracket nuts Bracket Cable Covers lower Bracket nut Mounting Bracket Page 8 For technical questions, please call 1-888-866-5797. Item 70199...
  • Page 9 Do not force it or press on the screen directly. CaUtIon!: TO PREVENT INJURY, Do not loosen middle screws. b. Adjust tilt. c. Tighten Tilt Adjustment Screws securely. Pivot Points tilt adjustment Screws Item 70199 For technical questions, please call 1-888-866-5797. Page 9...

  • Page 10: Parts List

    M-G D8 Washer M6 Nut 5mm Spacer Hex Key 4mmx70mm 15mm Spacer Hex Wrench W-A Wall Lag Screw W-B Wall Anchor M5×14 Screw M6×14 Screw W-C D6 Washer M6×30 Screw Page 10 For technical questions, please call 1-888-866-5797. Item 70199...
  • Page 11 If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175492371 when ordering parts. Item 70199 For technical questions, please call 1-888-866-5797. Page 11...

  • Page 12: Warranty

    limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
