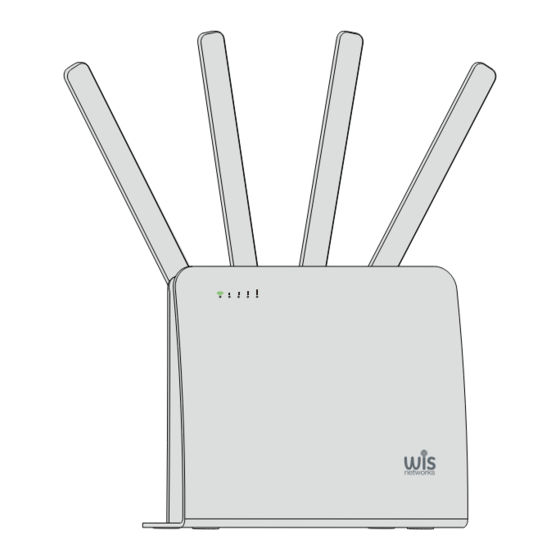

Summary of Contents for WIS NETWORKS 5G CPE Pro

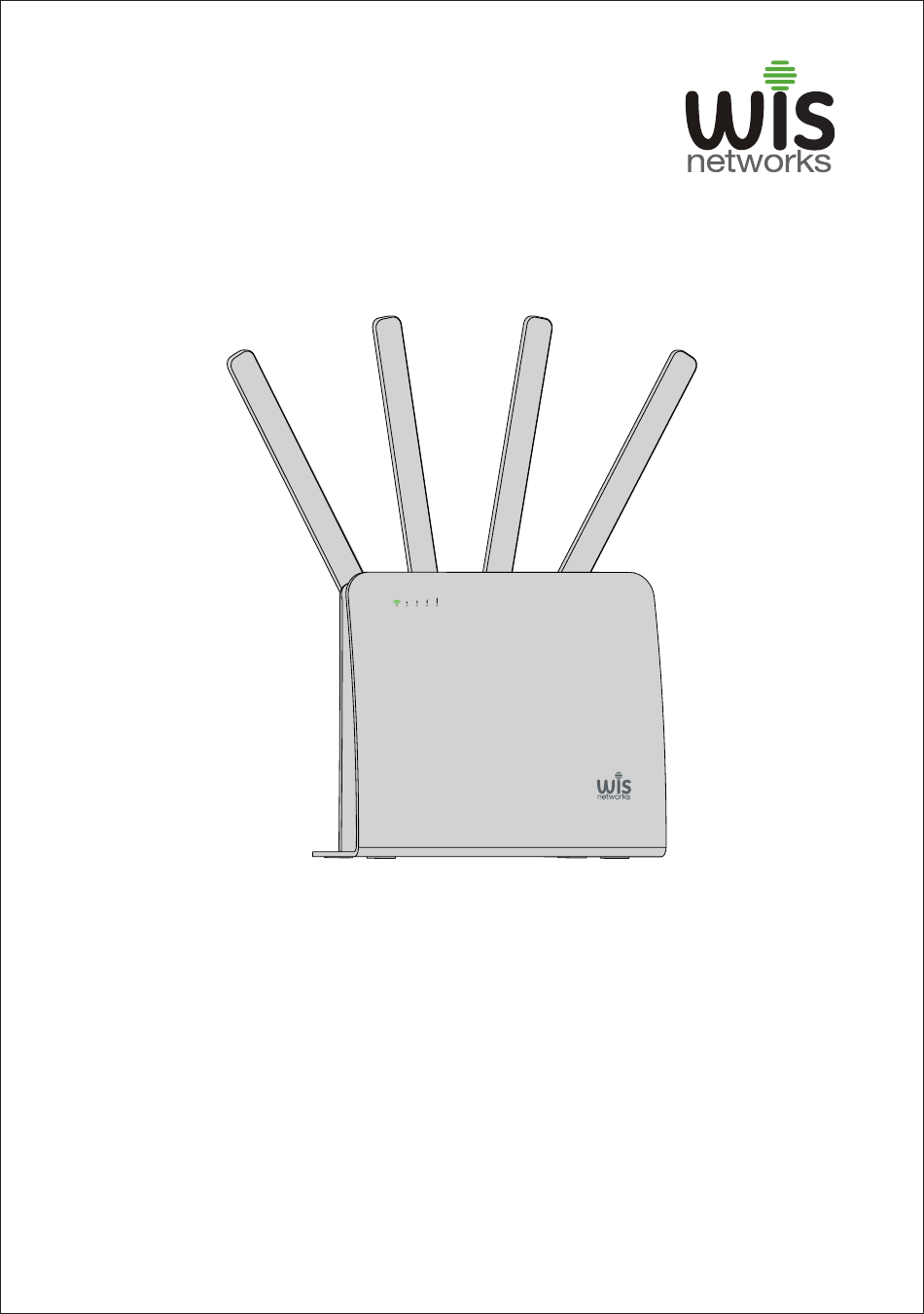

- Page 1 Quick Start Guide 5G CPE Pro...
- Page 2 Thank you for choosing WIS-AX3000-5G CPE Wireless Router. This Quick Start Guide is designed to familiarize you with the use of the CPE and describes how to apply it in your family and small business. 5G CPE Pro Accessories Antenna x 4...
- Page 3 Hardware Overview Back Ports LTE/5GAntenna ON/OFF ON/OFF Ports Description LTE/5G Antenna ANT1-4 Micro-SIM Card Power Switch Power on: The power indicator is on ON/OFF Power off: The power indicator is off Power Supply DC 12V LAN 10/100/1000Mbps LAN 1-4 WAN 10/100/1000/2500Mbps Reset Button Press more than 6 seconds to restore factory...
- Page 4 Front LEDs Wi-Fi 5G/LTE Signal LEDs Description On: the WiFi is available Wi-Fi Off: the WiFi is disabled 0LED: No Signal 1LED: Weak 5G/LTE Signal 2LED: Middel 3LED: Good 4LED: Excellent...
- Page 5 Hardware Installation Inserting Micro-SIM Card SIM ANT1 ANT2 ANT3 ANT4 ON/OFF Insert a micro SIM card into the SIM card slot at the top of the CPE. NOTE: 1. Insert the SIM card in the direction indicated by the silk screen, with the notch facing in. 2.
- Page 6 Connecting to the Local Power Supply ON/OFF Use the power adapter to connect the power port of the CPE to the local power source. NOTE: Observe the status of each LED to judge whether the device starts normally. Connecting to the Network Device 1.
- Page 7 2. Connection through an Ethernet Cable ON/OFF Internet access device can be connected to any LAN port of the CPE through an Ethernet cable. Con guring the 5G CPE Con guring the 5G CPE Using the Web-based Interface Step 1: Connect your Internet access device to any LAN port of the CPE. Step 2: Open a web browser window, enter the IP address (192.168.1.1) shown on the nameplate at the bottom of the CPE to enter the web management interface.
- Page 8 Online Support For more guide and help, please go to www.wisnetworks.com You can contact email sales@wisnetworks.com We’ll reply you within one weekday.
