NO-FROST 473 ELECTRONIC
CUSTOMER
SUPPORT
Control Panel
WHITE GOODS

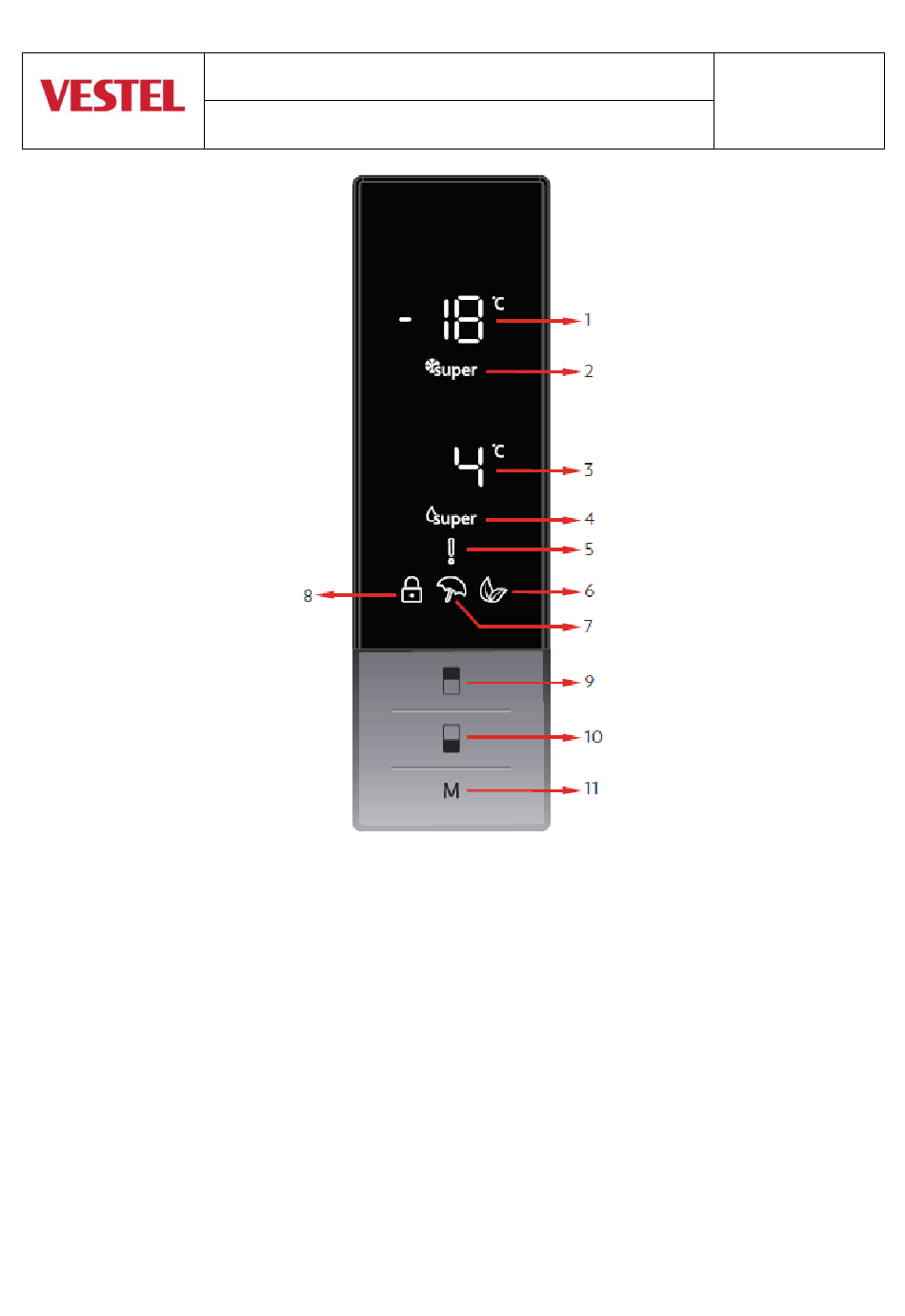

1. It is freezer set value screen.
2. It is super freeze indicator.
3. It is cooler set value screen.
4. It is super cooling indicator.
5. It is alarm symbol.
6. It is economy mode symbol.
7. It is holiday mode symbol.
8. It is child-lock symbol.
9. It enables the setting value of cooler to be modified and super freeze mode to be
activated if desired. Freezer maybe set to -16, -18, -20, -22, -24°C super freeze.
10. It enables the setting value of freezer to be modified and super cool mode to be
activated if desired. Cooler may be set to 8, 6, 5, 4, 2 °C super cool.
11. It enables the modes (economy, holiday...) to be activated if desired.
1
MARCH 2016
