Summary of Contents for TITTLA KME90F

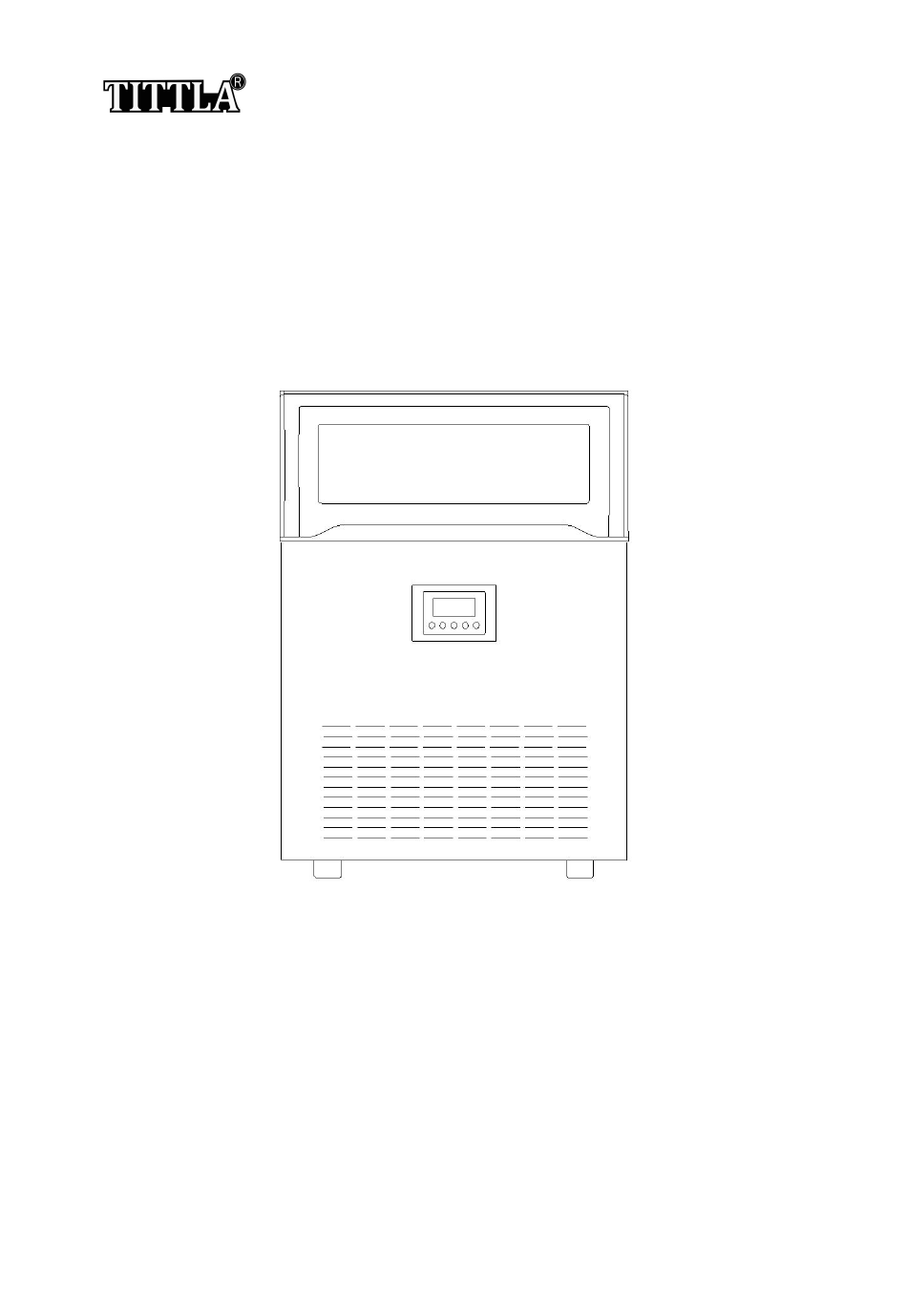

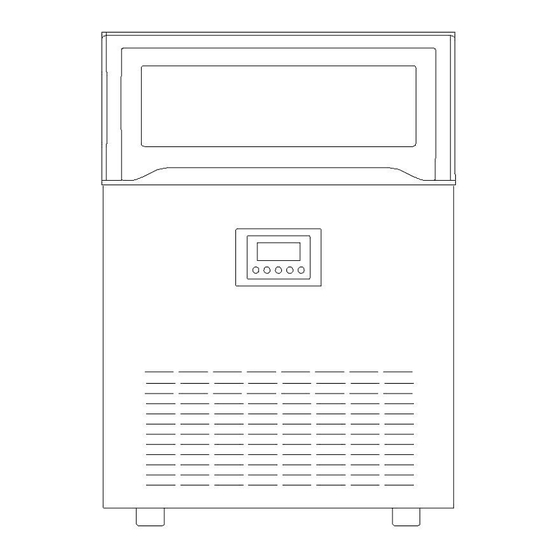

- Page 1 Instruction Manual ICE MAKER SKU：KME90F/KME120F It is important that you read these instructions carefully and keep it for future reference. The picture is for reference only. Please be subject to the actual products. Email：support@tittla.com Phone:+1(510)228-4672 Website: https://Tittla.com /...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire,electric shockand injury to persons or property. Read all instructions before operating the machine for the first time. CAUTION: ICE CAN’T BE STORED IN THE ICE BIN DURING NIGHT TIME,IT’S NOT FRIDGE,ICE WILL BE MELTED TO WATER AND GET OUT OF THE MACHINE. - Page 3 13. Do not clean your ice maker with flammable detergents.The fumes can create a fire hazard or explosion. 14. Do not tip the machine over. 15. If the ice maker is brought indoors from outdoors during the wintertime,give it a few hours to warm up to room temperature before plugging to power source.
-
Page 4: Unpacking Your Ice Maker
UNPACKING YOUR ICE MAKER Warning:Please keep foam and other packaging materials from children and disabled people, as this may cause danger to them. NOTE: Please remove all packages when using,or else the machine may not work properly. a) Remove the packaging and check whether the machine is intact. b) Open the accessory package and check whether the below accessories are included. -
Page 5: Installation And Connection
NOTE: Installation must be operated according to the manual by a professional. If you have any questions about the installation and connection, we can send the tutorial video to you, pls contact us: Support email: Support@tittla.com Phone number:+1(510)228-4672 Water connection of the... - Page 6 1) Water intake...
- Page 7 2) Drainage Warning: Because the ice in the inner tank will melt, drain pipe must be connected before using, and insert the drain pipe into a container or into the sewer. Note: Connect one end of the drain pipe to the machine, and the other end to a container or sewer.
-
Page 8: Machine Operations
MACHINE OPERATIONS Operation Panel Quick introduction 1. Connect and turn on the water faucet before power the machine. 2. Turn on the machine,it start to replenish water with lighted”adding water” and “lack of water”,after finishing,it will enter to standby mode with “00”displayed in the screen. At the same time,”adding water”... -
Page 9: Cleaning And Maintenance
increase the making time in minute. B:When the machine is at the middle of ice making or standby mode,hold the button for 2s to set the auto-turning-on or auto-turning-on time(The time range is from 0-23 hour ,in hours). A: When the machine is at the middle of ice making, press the “Light/-” button to reduce the making time in minute. -
Page 10: Circuit Diagram
Circuit Diagram Explosion diagram 1. Visible door 7. Touch board 13. Float 19.Main board 2. Door frame 8. Control board 14. Pump 20.Main board box 3. Top cover 9. Control board box 15.Compressor 21. Feet 4. Blue light 10. Inner tank 16. - Page 11 Common malfunction analysis 1) NO ICE Issues Check items Possible causes solutions The machine Power cord The plug didn’t plug Plug into socket doesn’t work into socket The fuse of The fuse is melted or Replace the fuse broken Ice bin The ice is full Clean out the ice cubes Power supply...
