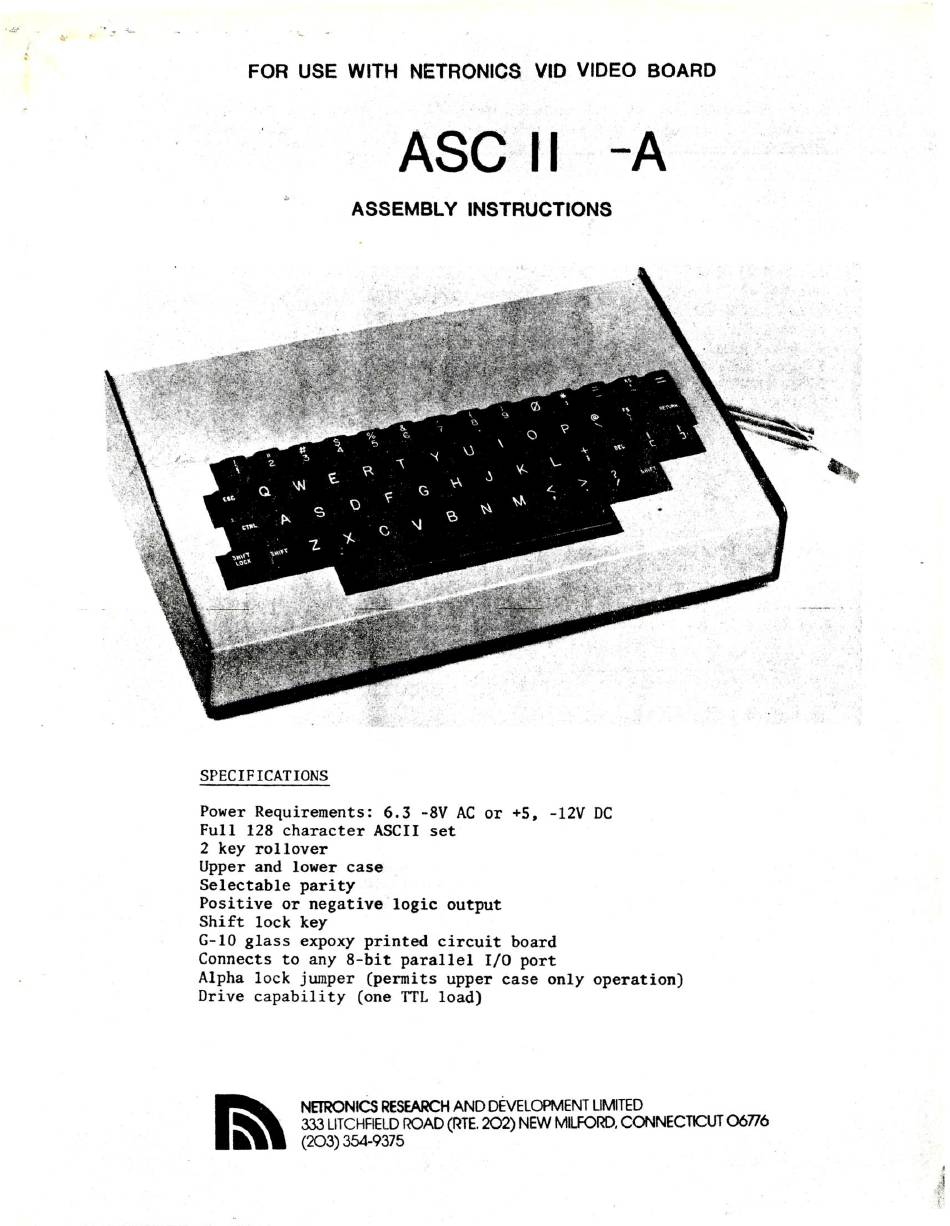

Netronics ASCII-A Assembly Instructions Manual

'.::.0.'
FOR USE WITH NETRONICS VIO VIDEO BOARD
Ase· · 1 1 -A'
ASSEMBLY INSTRUCTIONS
.
"
SPECIFICATIONS
Power Requirements: 6.3 -8V AC or +5, -12V DC
Full 128 character ASCII set
2 key rollover
Upper and lower case
Selectable parity
Positive or negative logic output
Shift lock key
G-IO glass expoxy printed circuit board
Connects to any 8-bit parallel I/O port
Alpha lock jumper (permits upper case only operation)
Drive capability (one TTL load)
NETRONICS RESEARCH AND DEVELOPMENT LIMITED
333 LITCHFIELD ROAD (RTE. 202) NEW MILFORD. CONNECTICUT
06776
(203) 354-9375
