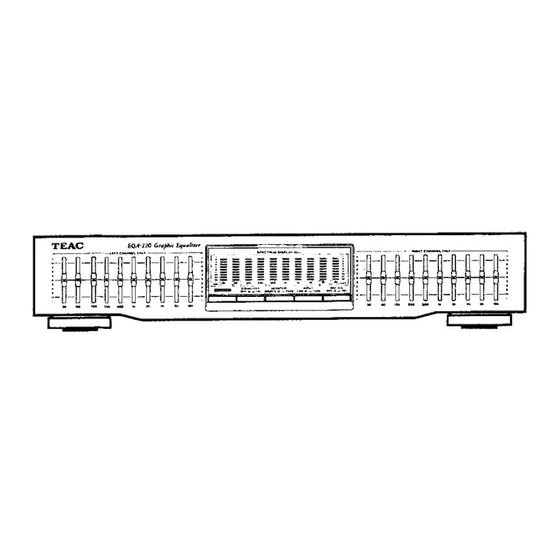

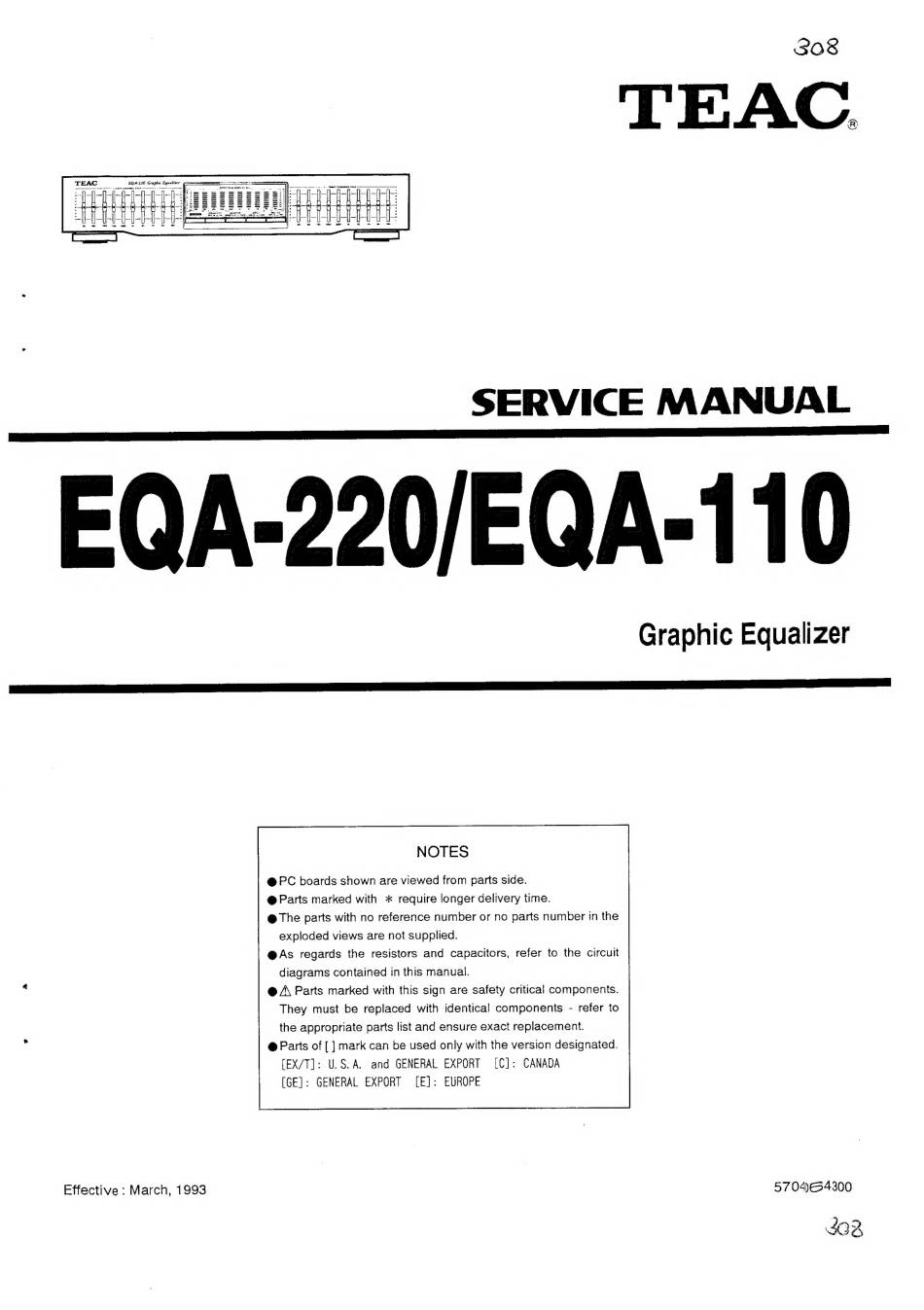

Teac EQA-220 Service Manual

Graphic Equalizer
NOTES
@ PC boards shown are viewed from parts side.
@ Parts marked with * require longer delivery time.
@ The parts with no reference number or no parts number in the
exploded views are not supplied.
@ As regards the resistors and capacitors, refer to the circuit
diagrams contained in this manual.
@ A\ Parts marked with this sign are safety critical components.
They must be replaced with identical components - refer to
the appropriate parts list and ensure exact replacement.
@ Parts of [ ] mark can be used only with the version designated.
[EX/T]: U.S.A. and GENERAL EXPORT [C]: CANADA
[GE]: GENERAL EXPORT [E]: EUROPE
