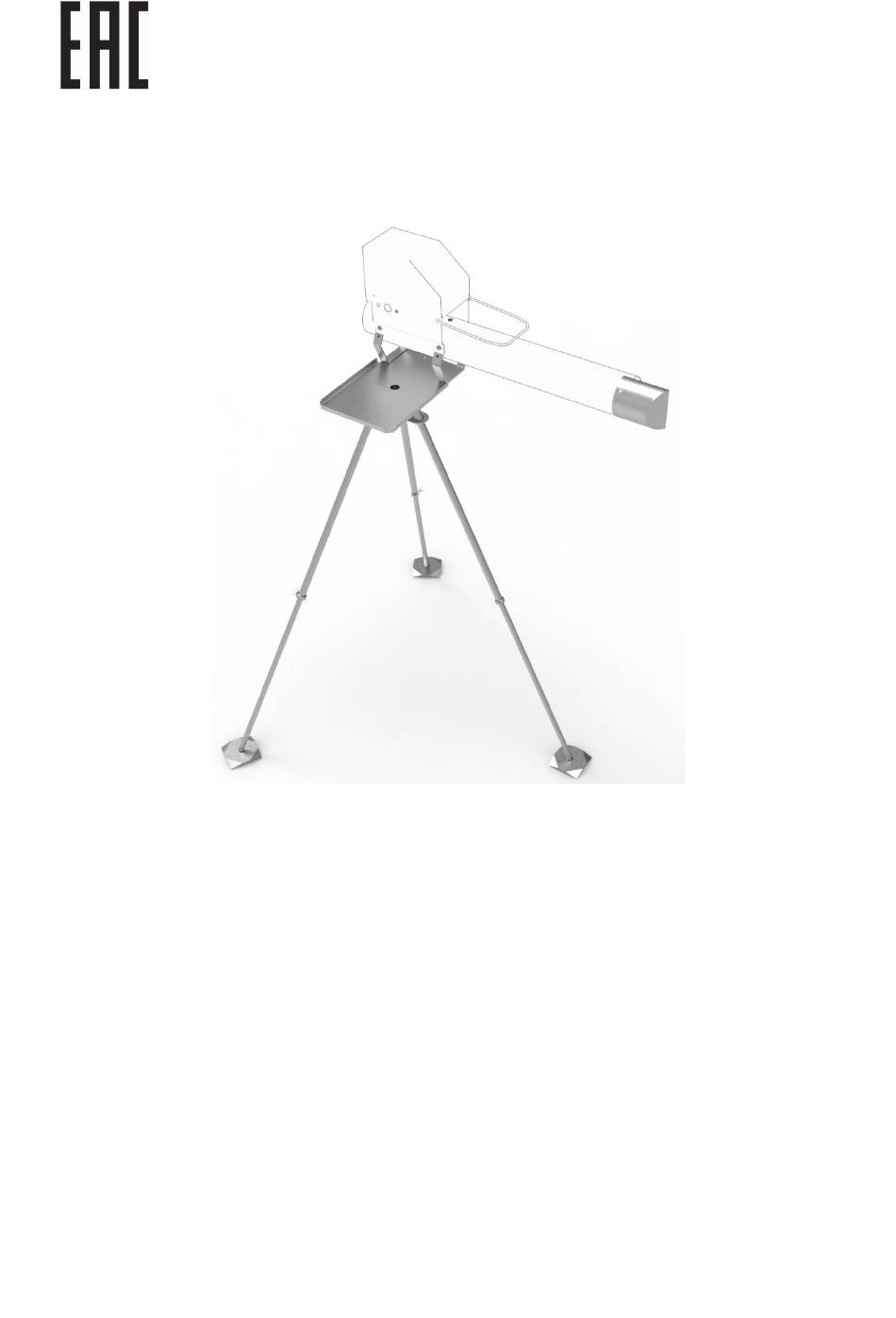

- Page 1 “SITITEK Е20” TRIPOD User Manual...
- Page 2 CONTENTS Device description and operation 1.1 Description 1.2 Technical specifications 1.3 Package content 1.4 Configuration and functioning Intended use 2.1 Operating restrictions 2.2 Device usage Maintenance Typical problems and possible solutions Packaging, storage and transportation Manufacturer warranty...
- Page 3 1 DEVICE DESCRIPTION AND OPERATION 1.1 Description 1.1.1 The tripod is designed to install the bird repeller (SITITEK GROM E20, Dazon) at a height of up to 1160 mm. The tripod allows to rotate the repeller (during each "shot", the repeller automatically rotates at an angle of 15°-30°) and increase the repeller’s efficiency.
- Page 4 Weight Not more than 7 kg (15 lb) Weight in the package Not more than 8 kg (18 lb) SITITEK GROM Е20 Compatible bird repeller models Dazon 1.3 Package content 1.3.1 Package content is shown on Table 2. Table 2 №...
- Page 5 1.3.2 The device’s configuration is shown on Figure 2. Figure 2 – The device’s configuration 1 – Rotating platform (assembled) 2 – Leg (assembled) 3 – Bracket 4 – Nozzle 5 – Clamp 6 – Star knob 7 – М6х6 nut 8 –...
- Page 6 11 – Mounting ring 1.4 Configuration and functioning 1.4.1 The operating principle is based on a physical impulse made by recoil after the repeller’s “shot”. 2. INTENDED USE 2.1 Operating restrictions 2.1.1 Assemble and use the tripod only after reading this Manual. 2.1.2 Do not put the batteries heavier than 12 kg on the tripod.
- Page 7 Put the battery on the rotating platform. Hang the propane barrel on the chain using hooks (10). The device is ready to use. *For SITITEK GROM Е20 model only. For Dazon models fix the nozzle (4) using screws (8) and nuts (7). 3 MAINTENANCE Maintenance requires cleaning the tripod’s surface if necessary.
- Page 8 - Shock acceleration peak value is up to 147 m/s² (15 g), with a duration of shock acceleration from 10 to 15 ms. 6 MANUFACTURER WARRANTY 6.1 The manufacturer guarantees that the product conforms to the applied requirements under the operating, storage and transportation conditions specified in the Manual.
