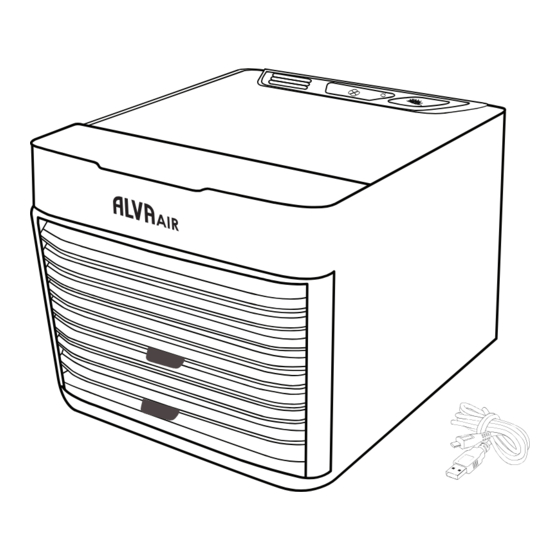

Stingray ALVA Air ACS102 COOL CUBE Manual

Stingray ALVA Air ACS102 COOL CUBE Manual

Personal evaporative air cooler

Advertisement

Quick Links

Life's Cool
USEFUL TIPS:
• Place Cool Cube on a raised surface such as a table, desk or counter
top. This is the best way to cool your personal space fast.
• Let the lter absorb water for at least 3 minutes after lling the tank
before use.
• Try to stay nearby the cool cube. You'll feel the most bene t when
sitting directly in front of it.
• The Cool Cube will run for approximately 12 hours on a single tank
of water on low fan speed. Even if the water tank is empty, the lter
is still damp and the cooler will still cool. Do not move the cool cube
while there is water inside.
SETUP:
Fig 1
Fig 2
Fig 3
1. Set the Cool Cube on a at surface such as a table or desk (see Fig 1).
Attach power adapter to power adapter Port, and plug power
adapter into wall outlet. Note: Please remove the foam infront of the
lter before use.
2. Use the lter draw tab to pull out the lter drawer and remove lter.
(see Fig 2)
3. For best results, lightly pre-soak under cold running water. For even
more cooling power, place the wet lter in the freezer until frozen.
Place back in drawer when done. (see Fig 3).
4. Open water tank door and ll to Max ll indicator. Close water
tank door when done. (see Fig 4). We recommend using a jug or
measuring cup. DO NOT OVERFILL.
PLEASE NOTE: Use built-in cord guide along the back to keep cord away from fan.
USAGE:
Fig 5
Fig 6
Fig 7
1. Press the
button to turn the Cool Cube one - it will default to
high speed mode. (see Fig 5).
• 1
press: Power on, High
st
• 2
press: Medium
nd
• 3
press: Low
rd
• 4
press: Power o
th
PLEASE NOTE: Cool Cube will run up to 8 hours on high, 10 hours on medium, 12 hours on low.
2. Use the Air Direction Tab to adjust air ow up/down to your preference.
2
(see Fig 6).
ACS102
COOL CUBE
PERSONAL EVAPORATIVE AIR COOLER
USAGE (CONT.):
3. Choose di erent colour lights by pressing
• 1
press to change: Press the
st
according to the di erent scenes and time.
• 2
press: Light o .
nd
4. To power o , press the
button until fan turns o (one press after low
speed), and mode indicator lights are no longer lit. (see Fig 8).
IMPORTANT: If you do not plan to use the Cool Cube for an extended period of time, it is
recommended that you empty the water tank and let unit/ lter dry before storing. This will avoid
mould and unpleasant smells, and prolong life of Cool Cube and lter.
MAINTENANCE:
We recommend weekly cleaning of your Cool Cube and lter to keep it in best
working condition and replacing the lter every 3-6 months.
Fig 4
OR
Fig 9
Dishwasher: Place lter in the top-rack of your dishwasher and run cycle
normally. Remove and let air dry. (see Fig 9).
Hand Wash: Hand wash gently with warm water and soap. Shake out excess
water and let air dry. (see Fig 10).
Microwave: Between washes, sanitize your lter by placing in microwave on
high for 30 seconds at a time, up to 2 minutes. Let stand until cool. (see Fig 11).
IMPORTANT: If you see mould on the lter or notice a musty smell, stop and clean the lter before
further use. Fully submerge the lter in a pot or bowl lled with equal parts clean water and
white vinegar - allow to soak for 45-60 minutes. Rinse with warm water, wring out and let dry.
Unit Cleaning
• To prepare for cleaning, run Cool Cube until all water has emptied
from the water tank, or hold Cool Cube over a sink and carefully drain out to
avoid splashing or spilling. (see Fig 12).
• Remove lter tray from Cool Cube. Using warm, soapy water, wipe lter tray
Fig 8
and grill, then rinse o until clean. Let air dry. (see Fig 13).
• If you notice water tank is dirty, use a small bendable brush (i.e. toothbrush,
bottle brush, etc) and carefully clean the inside of the tank. Rinse with warm
water.
button. (see Fig 7).
button to choose the di erent light colours
Fig 10
Fig 11
Fig 12
Fig 13
3
WARNINGS:
• Do not carry Cool Cube when lled with water. Some water may remain in the
unit even if tank is empty.
• Use only clean water. If needed, use distilled water.
• Please read and follow regular maintenance as recommended in
"Maintenance" section of this guide.
• Cool Cube works best in non-polluted areas. Large dust/dirt particles may
reduce lifetime of unit.
• We recommend to only use in dry locations. If using in a moist area or
environment, take care not to get water on external areas of the product.
• If a leak or spill occurs on the surface of device, unplug Cool Cube and let it
dry for 24 hours. Then, use as normal.
• Do not place in direct sunlight for extended periods of time.
• Only use the original power cord supplied in package.
• Do not touch the power supply or power cord with wet hands.
• Unplug Cool Cube when cleaning, removing/replacing lter, or moving the
device.
• For best results, place Cool Cube on a higher surface like a table or countertop.
• Do not place near a heater or any electrical equipment.
• Do not place the device in passageways or high tra c areas where there is a
possibility of tripping or knocking it over.
• Do not allow any foreign objects inside Cool Cube.
• Do not place items on top of Cool Cube.
• Do not block the front and back grills of the device.
• Do not turn the device upside down.
• Do not submerge the Cool Cube under water or other liquids.
• Do not place Cool Cube near open ames or re sources.
• People with limited physical, visual or mental abilities or lacking proper
experience and/or knowledge should never us the device without supervision
of those responsible for their safety or those capable of assistance in using the
device.
• The device can be switched o completely only when disconnected from the
power supply.
• The manufacturer does not bear any responsibility for any damage from
failure to comply with this product guide.
• A replaceable water lter is designed speci cally for this product.
4
