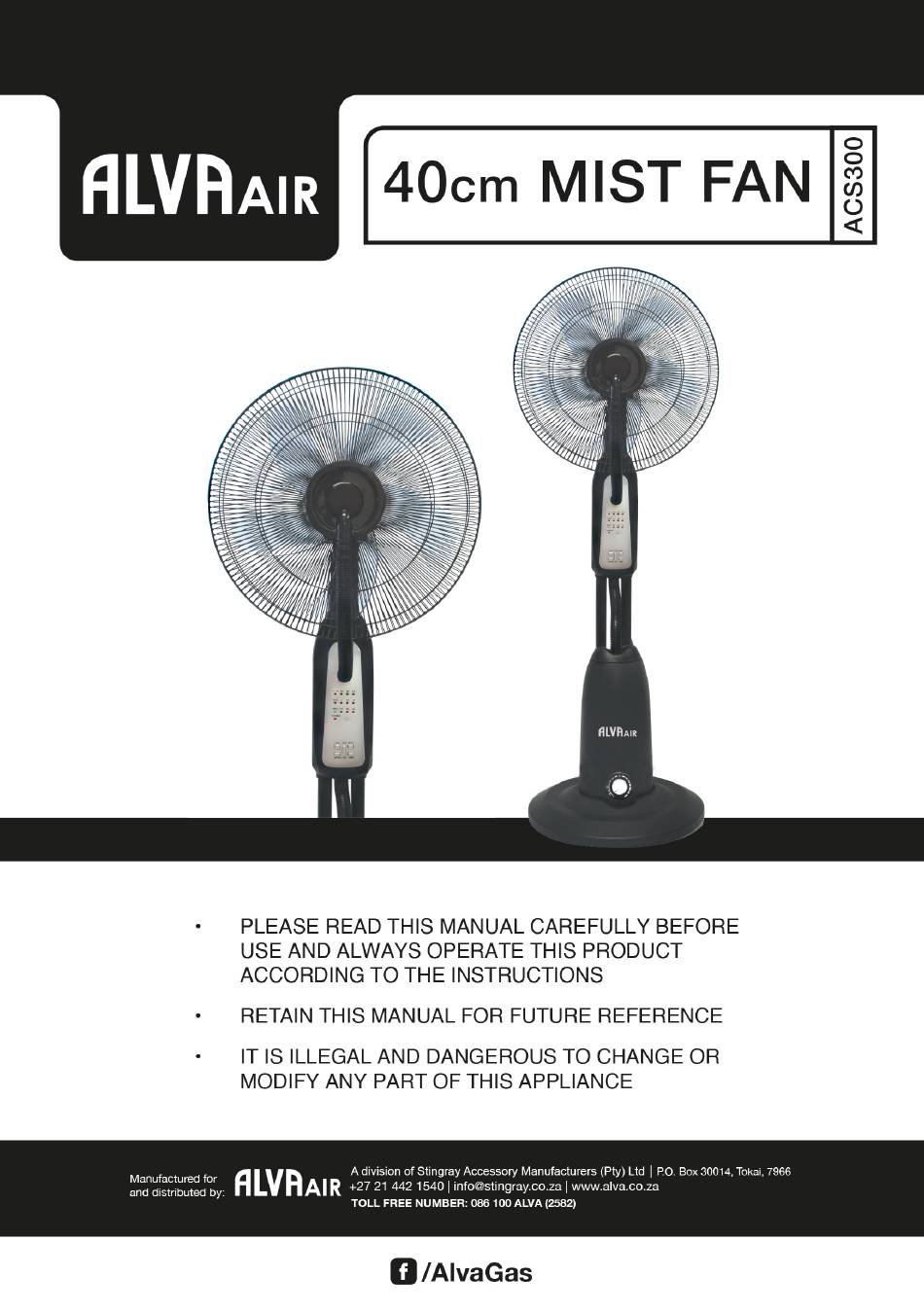

Summary of Contents for Stingray ALVA Air ACS300
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION • Please read these instructions carefully before using your Mist Fan. The operator must understand all safety Thank you for your requirements as detailed in this manual before using the purchase of this unit. Mist Fan, Please read these instructions •... - Page 3 • Do not plug/unplug the product into/from the electrical outlet with a wet hand. Never insert fingers or any other object through the fan guards. Never drop or insert objects into any opening of the product. • Do not attempt to open any part of the motor housing, as a risk of electrical shock may exist.
-
Page 4: Warranty
If you have any questions while setting up or using this Mist Fan, please visit www.alva.co.za or call 086 100 ALVA (2582) or e-mail info@stingray.co.za GENERAL INFORMATION Before using this Mist Fan, please read through this manual and make sure you understand everything. - Page 5 INDEX PARTS LIST ASSEMBLING THE FAN Notes marked with the following; CONTROL PANEL REMOTE CONTROL Contain important information OPERATING THE FAN CLEANING AND MAINTENANCE DISPOSAL Notes marked with the following; TROUBLE SHOOTING SPECIFICATIONS Contain cautions and AFTER SALES SERVICE warnings.
-
Page 6: Parts List
PARTS LIST Mist Outlet Top Cap Front Guard Water Tank Blade Lock Nut Mist Generator Plastic Blade Mist Control Knob Rear Guard Base Cover Base Weight Guard Ring Castors Rear Guard Lock Nut Screws Motor Cover Washers Rear Shell Support Tubes Nuts Remote Control Control Panel... -
Page 7: Assembling The Fan
ASSEMBLING THE FAN 1. Remove all the appliance parts from the packaging. 2. Place Base Cover (18) over the Base Weight (19) and line-up holes. 3. Put threaded end of both Support Tubes (23) into the holes in Base Cover (18) and secure tightly with Washers (22) and Screws (21) through the Base Weight (19). - Page 8 Fill the water tank (15): Unscrew the valve cover to open the water tank turning it anticlock- wise. Fill the water tank with cold and clean water making sure not Make sure the fan is to overfill it. unplugged from the mains before filling To close the water tank, screw the valve cover back on securely or refilling the water...
-
Page 9: Control Panel
Replace the old batteries with Replacement the same type of batteries or Battery the Mist Fan function may be CR2025 impaired. Remove the batteries before Available from long periods of non-use to www.stingray.co.za prevent leakage which will Fig.I damage the remote control. -
Page 10: Operating The Fan
OPERATING THE FAN These functions below can be operated either from the buttons on the fan control panel, or by using the remote control. The remote control has a direct line of sight range of approximately This product has both a mist and fan function which can be used togther or separately. - Page 11 • On the remote control press the mode button a second time to change to Sleep mode: after a time period the fan will maintain a low speed. The SL indicator light (3) will illuminate on the control panel. • On the remote press the mode button again to change to Normal mode.
- Page 12 TIMER Button (D): • When the unit is operating, you can set the timer button to switch the fan off automatically after the set time. Press the timer button repeatedly to select the desired time period in half hour increments: 0,5h, 1h, 1,5h ..7,5h. The related indicator lights, (1) will illuminate on the control panel.
-
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE • The appliance, the power cord and the power plug must not be immersed in water or other liquids when you are cleaning them. Clean them with a dry cloth. • If it is very dirty, the outside of the appliance can be wiped Before cleaning the carefully with a moist cloth and then dried carefully. -
Page 14: Troubleshooting
Clean water tank and replace water. with the information in this guide, contact your nearest dealer or SPECIFICATIONS ALVA: 086 100 (ALVA) (2582) or e-mail Model ACS300 info@stingray.co.za Description 40cm Mist Fan Voltage 220-240V~50Hz Water Tank Capacity 2.9L Max Mist Capacity 220ml/hr... -
Page 15: After Sales Service
AFTER SALES SERVICE MANUFACTURED FOR AND DISTRIBUTED BY ALVA MARKETING Alva Air, a division of Stingray Accessory Manufacturers (Pty) Ltd. P.O. Box 30014 Tokai, 7966 Tel: 021 442 1540 E-mail: info@stingray.co.za www.alva.co.za www.facebook.com/AlvaGas TOLL FREE NUMBER 086 100 ALVA (2582)
