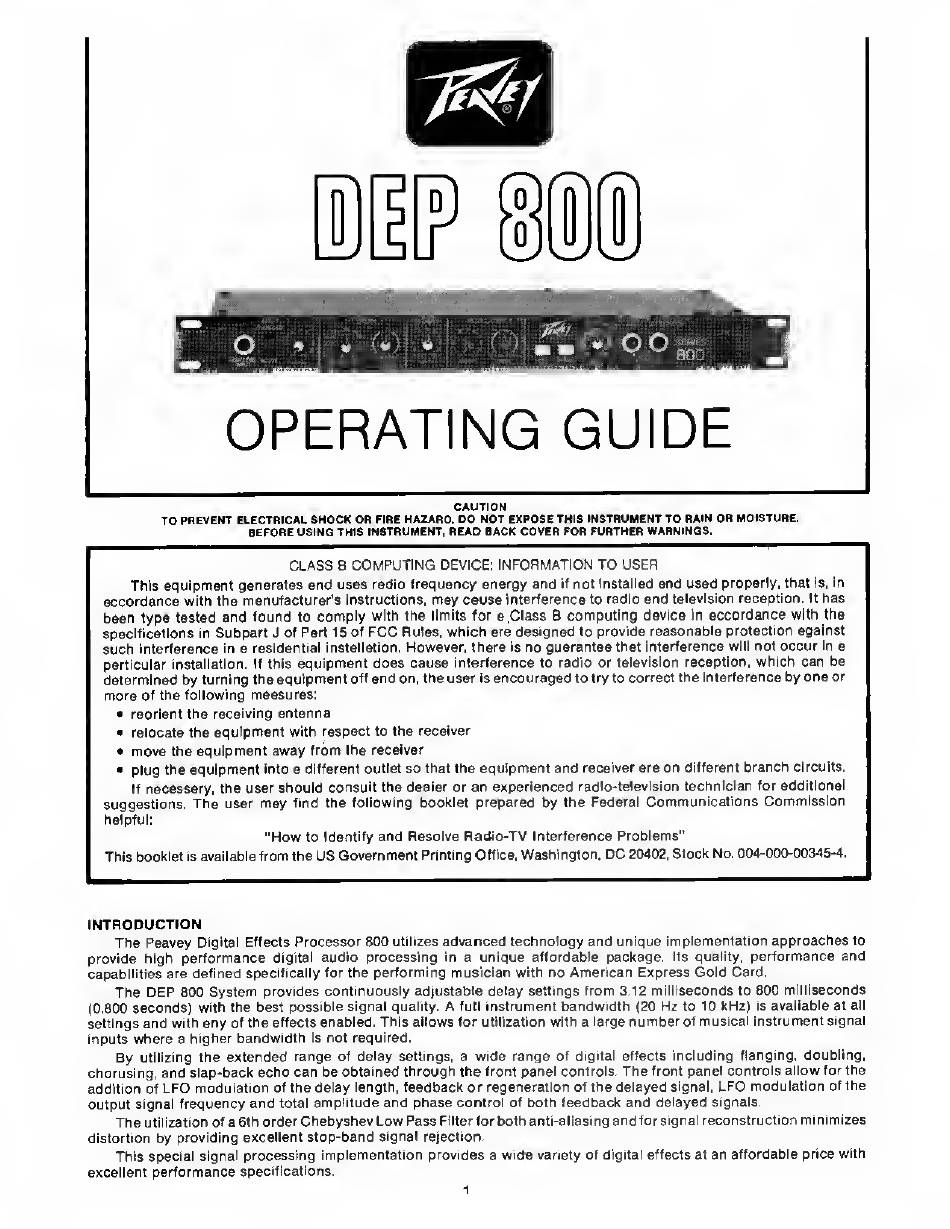

CAUTION
TO PREVENT ELECTRICAL SHOCK OR FIRE HAZARD, DO NOT EXPOSE THIS INSTRUMENT TO RAIN OR MOISTURE.
BEFORE USING THIS INSTRUMENT, READ BACK COVER FOR FURTHER WARNINGS.
CLASS B COMPUTING DEVICE: INFORMATION TO USER
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in
accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has
been type tested and found to comply with the limits for a Class B computing device in accordance with the
specifications in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against
such interference in a residential installation. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• reorient the receiving antenna
• relocate the equipment with respect to the receiver
• move the equipment away from the receiver
• plug the equipment into a different outlet so that the equipment and receiver are on different branch circuits.
If necessary, the user should consult the dealer or an experienced radio-television technician for additional
suggestions. The user may find the following booklet prepared by the Federal Communications Commission
helpful:
"How to Identify and Resolve Radio-TV Interference Problems"
This booklet is available from the US Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.
INTRODUCTION

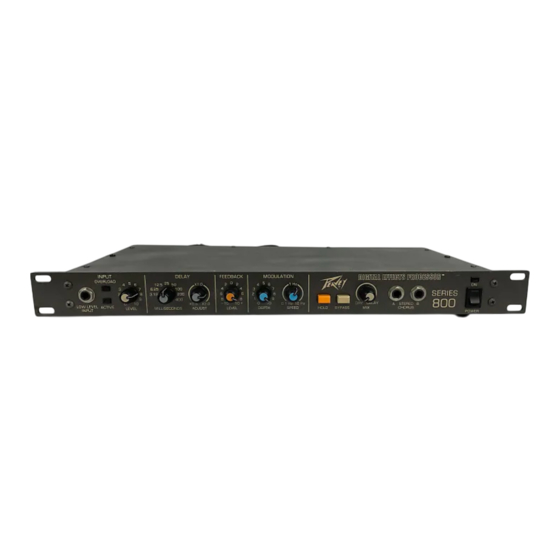

The Peavey Digital Effects Processor 800 utilizes advanced technology and unique implementation approaches to
provide high performance digital audio processing in a unique affordable package. Its quality, performance and
capabilities are defined specifically for the performing musician with no American Express Gold Card.
The DEP 800 System provides continuously adjustable delay settings from 3.12 milliseconds to 800 milliseconds
(0.800 seconds) with the best possible signal quality. A full instrument bandwidth (20 Hz to 10 kHz) is available at all
settings and with any of the effects enabled. This allows for utilization with a large number of musical instrument signal
inputs where a higher bandwidth is not required.
By utilizing the extended range of delay settings, a wide range of digital effects including flanging, doubling,
chorusing, and slap-back echo can be obtained through the front panel controls. The front panel controls allow for the
addition of LFO modulation of the delay length, feedback or regeneration of the delayed signal, LFO modulation of the
output signal frequency and total amplitude and phase control of both feedback and delayed signals.
The utilization of a 6th order Chebyshev Low Pass Filter for both anti-aliasing and for signal reconstruction minimizes
distortion by providing excellent stop-band signal rejection.
This special signal processing implementation provides a wide variety of digital effects at an affordable price with
excellent performance specifications.
1
