INSTALLATION INSTRUCTIONS

Unpacking

  1. Empty the microwave oven of any packing materials.
  2. Clean the inside with a soft, damp cloth.
  3. Check for damage, such as:
    • a door that is not lined up correctly
    • damage around the door, or
    • dents on the interior or exterior of the microwave oven.

If there is any damage, do not operate the microwave oven until a designated service technician has checked it and made any needed repairs.

warning NOTE: To avoid damage to the microwave oven, do not remove microwave inlet cover. See "Parts and Features."

Location Requirements

  • Place the microwave oven on a cart, counter, table or shelf that is strong enough to hold the microwave oven and the food and utensils you place inside it.
  • The microwave oven should be at a temperature above 50°F (10°C) for proper operation.
    warning NOTE: This model may be installed under a cabinet. Hardware and Under-the-Cabinet Installation Instructions are provided. See installation kit.
  • Do not block the exhaust vents or air intake openings. Allow a few inches of space at the back and side of the microwave oven where the exhaust vents are located. Blocking the exhaust vents could cause damage to the microwave oven, as well as poor cooking results.
  • Make sure the microwave oven legs are in place to ensure proper airflow. If vents are blocked, a sensitive thermal device may automatically turn the microwave oven off. The microwave oven should work properly once it has cooled.

Electrical Requirements


Electrical Shock Hazard
Plug into a grounded 3 prong outlet.

Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

  • A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply with a fuse or circuit breaker.

Recommended:

  • A time-delay fuse or time-delay circuit breaker.
  • A separate circuit serving only this microwave oven.

GROUNDING INSTRUCTIONS

  • For all cord connected appliances:
    The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.


Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

SAVE THESE INSTRUCTIONS

PARTS AND FEATURES

This manual may cover several different models. The model you have purchased may have some or all of the features shown here. The appearance of your particular model may differ slightly from the illustrations in this manual.

PARTS AND FEATURES

  1. Door lock system
  2. Window
  3. Microwave inlet cover (not shown)
  4. Microwave oven light (not shown)
  5. Control panel
  6. Glass turntable
  7. Removable turntable support
    On back of microwave oven: Model and serial number plate

Turntable

  1. Turntable
  2. Support

The turntable can rotate in either direction to help cook food more evenly. For best cooking results, do not operate the microwave oven without having the turntable in place. See "Assistance or Service" to reorder any of the parts.

To Install:

  1. Place the support on the microwave oven cavity bottom.
  2. Place the turntable on the support.

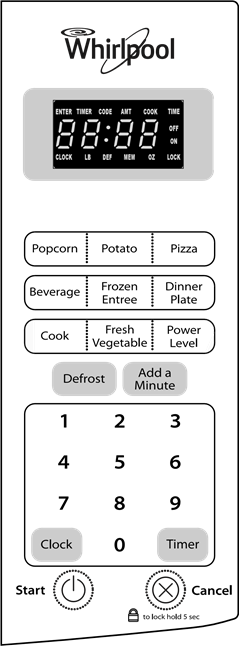

MICROWAVE OVEN CONTROL

Display

When power is first supplied to the microwave oven, ":" will appear in the display. If the ":" appears in the display at any other time, a power failure has occurred. Reset the clock if needed.

While the microwave oven is being programmed, the display shows cooking power, quantities, weights and/or prompts. When the microwave oven is not in use, the display shows the time of day (if the Clock is set) or Timer countdown.

Start

The START pad begins any function. If cooking is interrupted, touching START will resume the preset cycle.

warning NOTE: To avoid unintentional operation of the microwave oven, a cooking function cannot be started if the microwave oven door has been closed for about 5 minutes or more. "DOOR" will appear in the display until the door is opened and closed.

Cancel

The CANCEL pad clears any incorrect command and cancels any program during cooking. It will not erase the time of day.
The microwave oven will also turn off when the door is opened.
Close the door and touch START to resume the cycle.

Add A Minute

The ADD A MINUTE pad starts the microwave oven for 1 minute at 100% power. More cook time may be added in 1-minute increments by touching ADD A MINUTE repeatedly.
The Add A Minute function may be used only when no other function is operating.

warning NOTE: To avoid unintentional operation of the microwave oven, a cooking function cannot be started if the microwave oven door has been closed for about 5 minutes or more. "DOOR" will appear in the display until the door is opened and closed.

Clock

This is a standard 12-hour clock (12:00-11:59).

To Set:
The microwave oven must be off.

  1. Touch CLOCK.
  2. Touch number pads to enter correct time of day.
  3. Touch CLOCK.

Timer

NOTE: The Timer does not start or stop the microwave oven.
Cook functions may be used while the Timer is counting down. When the cook function is active in the display, touch TIMER to see the Timer count down for 5 seconds.

To Set:

  1. Touch TIMER.
  2. Touch number pads to enter desired time.
  3. Touch START.
    When the set time ends, the end-of-Timer tone will sound.
  4. While the Timer countdown is active in the display, touch CANCEL to cancel the Timer.
    If a cook function countdown is active in the display, touch TIMER to show the Timer countdown, then touch CANCEL to cancel the Timer. Touching CANCEL while a cook function countdown is active in the display will cancel the cook function, not the Timer.

Tones

Tones are audible signals that can be turned off.
To Turn Off/On All Tones: Touch and hold POWER LEVEL for 5 seconds, until "Off" appears in the display. Repeat to turn tones back on ("On" will appear in the display).

These tones indicate the following:

One Tone

  • Valid entry
  • End of Timer (long tone)

Two Tones

  • End of stage in multistage cooking
  • Control Lock active (short tones)

Three Tones

  • End of cycle

Five Tones

  • During Defrost cycle, reminder to check, turn, rearrange, or separate food

Control Lock

The Control Lock disables the control panel pads to avoid unintended use of the microwave oven.

To Lock/Unlock Control: The microwave oven must be off. Touch and hold CANCEL for 5 seconds until the tones sound and the LOCK icon and "LoC" appear in the display. Repeat to unlock and clear the display (2 tones will sound).
If any cook function control is touched while the Control Lock is active, "LoC" will appear briefly in the display and 2 tones will sound.

MICROWAVE OVEN USE

A magnetron in the microwave oven produces microwaves which reflect off the metal floor, walls and ceiling and pass through the turntable and appropriate cookware to the food. Microwaves are attracted to and absorbed by fat, sugar and water molecules in the food, causing them to move, producing friction and heat which cooks the food.

  • To avoid damage to the microwave oven, do not lean on or allow children to swing on the microwave oven door.
  • To avoid damage to the microwave oven, do not operate microwave oven when it is empty.
  • Baby bottles and baby food jars should not be heated in microwave oven.
  • Clothes, flowers, fruit, herbs, wood, gourds, paper, including brown paper bags and newspaper, should not be dried in microwave oven.
  • Paraffin wax will not melt in the microwave oven because it does not absorb microwaves.
  • Use oven mitts or pot holders when removing containers from microwave oven.
  • Do not overcook potatoes. At the end of the recommended cook time, potatoes should be slightly firm. Let potatoes stand for 5 minutes. They will finish cooking while standing.
  • Do not cook or reheat whole eggs inside the shell. Steam buildup in whole eggs may cause them to burst, requiring significant cleanup of microwave oven cavity. Cover poached eggs and allow a standing time.

Food Characteristics

When microwave cooking, the amount, size and shape, starting temperature, composition and density of the food affect cooking results.

Amount of Food
The more food heated at once, the longer the cook time needed. Check for doneness and add small increments of time if necessary.

Size and Shape
Smaller pieces of food will cook more quickly than larger pieces, and uniformly shaped foods cook more evenly than irregularly shaped food.

Starting Temperature
Room temperature foods will heat faster than refrigerated foods, and refrigerated foods will heat faster than frozen foods.

Composition and Density
Foods high in fat and sugar will reach a higher temperature, and will heat faster than other foods. Heavy, dense foods, such as meat and potatoes, require a longer cook time than the same size of a light, porous food, such as cake.

Cooking Guidelines

Covering
Covering food helps retain moisture, shorten cook time and reduce spattering. Use the lid supplied with cookware. If a lid is not available, wax paper, paper towels or plastic wrap approved for microwave ovens may be used. Plastic wrap should be turned back at one corner to provide an opening to vent steam. Condensation on the door and cavity surfaces is normal during heavy cooking.

Stirring and Turning
Stirring and turning redistribute heat evenly to avoid overcooking the outer edges of food. Stir from outside to center. If possible, turn food over from bottom to top.

Arranging
If heating irregularly shaped or different sized foods, arrange the thinner parts and smaller sized items toward the center. If cooking several items of the same size and shape, place them in a ring pattern, leaving the center of the ring empty.

Piercing
Before heating, use a fork or small knife to pierce or prick foods that have a skin or membrane, such as potatoes, egg yolks, chicken livers, hot dogs, and sausage. Prick in several places to allow steam to vent.

Shielding
Use small, flat pieces of aluminum foil to shield the thin pieces of irregularly shaped foods, bones and foods such as chicken wings, leg tips and fish tail. See "Aluminum Foil and Metal" first.

Standing Time
Food will continue to cook by the natural conduction of heat even after the microwave cooking cycle ends. The length of standing time depends on the volume and density of the food.

Cookware and Dinnerware

Cookware and dinnerware must fit on the turntable. Always use oven mitts or pot holders when handling because any dish may become hot from heat transferred from the food. Do not use cookware and dinnerware with gold or silver trim. Use the following chart as a guide, then test before using.

MATERIAL RECOMMENDATIONS
Aluminum Foil, Metal See "Aluminum Foil and Metal" section.
Browning Dish Bottom must be at least 3/16" (5 mm) above the turntable. Follow manufacturer's recommendations.
Ceramic Glass, Glass Acceptable for use.
China, Earthenware Follow manufacturer's recommendations.
Melamine Follow manufacturer's recommendations.
Paper: Towels, Dinnerware, Napkins Use nonrecycled and those approved by the manufacturer for microwave oven use.
Plastic: Wraps, Bags, Covers, Dinnerware, Containers Use those approved by the manufacturer for microwave oven use.
Pottery and Clay Follow manufacturer's recommendations.
Silicone Bakeware Follow manufacturer's recommendations.
Straw, Wicker, Wooden Containers Do not use in microwave oven.
Wax Paper Acceptable for use.

To Test Cookware or Dinnerware for Microwave Use:

  1. Place cookware or dinnerware in microwave oven with 1 cup (250 mL) of water beside it.
  2. Cook at 100% cooking power for 1 minute.

Do not use cookware or dinnerware if it becomes hot and the water stays cool.

Aluminum Foil and Metal

Always use oven mitts or pot holders when removing dishes from the microwave oven.
Aluminum foil and some metal can be used in the microwave oven. If not used properly, arcing (a blue flash of light) can occur and cause damage to the microwave oven.

OK for Use

Racks and bakeware supplied with the microwave oven (on some models), aluminum foil for shielding, and approved meat thermometers may be used with the following guidelines:

  • To avoid damage to the microwave oven, do not allow aluminum foil or metal to touch the inside cavity walls, ceiling or floor.
  • Always use the turntable.
  • To avoid damage to the microwave oven, do not allow contact with another metal object during microwave cooking.

Do Not Use

Metal cookware and bakeware, gold, silver, pewter, nonapproved meat thermometers, skewers, twist ties, foil liners such as sandwich wrappers, staples and objects with gold or silver trim or a metallic glaze should not be used in the microwave oven.

Microwave Cooking Power

Many recipes for microwave cooking specify which cooking power to use by percent, name or number. For example, 70%=7=Medium-High.
Use the following chart as a general guide for the suggested cooking power of specific foods.

PERCENT/NAME NUMBER USE
100%, High
(default setting)
10 Quick heating convenience foods and foods with high water content, such as soups, beverages and most vegetables.
90% 9 Cooking small, tender pieces of meat, ground meat, poultry pieces and fish fillets.
Heating cream soups.
80% 8 Heating rice, pasta or stirrable casseroles.
Cooking and heating foods that need a cook power lower than high. For example, whole fish and meat loaf.
70%, Medium-High 7 Reheating a single serving of food.
60% 6 Cooking sensitive foods such as cheese and egg dishes, pudding and custards.
Cooking non-stirrable casseroles, such as lasagna.
50%, Medium 5 Cooking ham, whole poultry and pot roasts.
Simmering stews.
40% 4 Melting chocolate.
Heating bread, rolls and pastries.
30%, Medium-Low, Defrost 3 Defrosting bread, fish, meats, poultry and precooked foods.
20% 2 Softening butter, cheese, and ice cream.

Manual Cooking

warning NOTE: Manual cooking may be done in two stages.

To Use:

  1. Place food on the turntable and close the door.
  2. Touch COOK.
    Enter the length of time for cook.
    If cooking with 100% power, skip Step 3.
  3. Touch POWER LEVEL, then set the desired cooking power. See "Microwave Cooking Power." If cooking in stages, repeat steps 2 and 3 to set cook time and cooking power for the second stage.
  4. Touch START.
    The display will count down the cook time. When the cycle ends. "END" will appear in the display, and the end-of-cycle tones will sound.
  5. Touch CANCEL or open the door to clear the display.
    The cook time and power may not be changed after touching START without interrupting cooking.

Preset Cooking

The microwave oven has been programmed with common microwavable foods, their quantities, cook powers and cook times.

warning NOTE: During Popcorn function, as with all microwave cooking functions, the microwave oven should be attended at all times. Listen for popping to slow to 1 pop every 1 or 2 seconds, then stop the cycle.

Use the following chart as a guide for preset cooking.

FOOD SERVING SIZE INSTRUCTIONS
Popcorn* 3.5 oz (99 g) 1.75 oz (50 g) Pop only one package at a time. For bag sizes not listed in this section, follow directions on package.
Potato 1-4 medium, 8-10 oz (227- 283 g) each, similar in size Pierce each one several times with a fork. Place on paper towel, around turntable edges, at least 1" (2.5 cm) apart. Let stand 5 minutes after cooking.
Pizza (refrigerated) 1-2 slices, 4 oz (113 g) each Place on paper towel or paper plate in the center of the turntable.
Beverage 1-2 cups, 8 oz (250 mL) each Do not cover. The diameter of the cup's opening will affect how the liquid heats. Beverages in cups with smaller openings may heat faster.
Frozen Entrée 10 oz (283 g) Remove from package. Loosen cover on 3 sides. If entrée is not in microwave-safe container, place on plate, cover with plastic wrap and vent. Let stand 2-3 minutes after cooking.
Dinner Plate (refrigerated) 1 serving, about 10 oz (283 g) Place food on plate, cover with plastic wrap and vent.
Fresh Vegetable 1-4 cups (250 mL-1 L) Place in microwave-safe container, and add 2-4 tbs (30-60 mL) water. Cover with plastic wrap and vent. Stir and let stand 2-3 minutes after cooking.

*To avoid damage to the microwave oven, do not use regular paper bags or glassware. For best cooking results, do not try to pop unpopped kernels. Use fresh bags of popcorn for optimal results. Cooking results may vary by brand and fat content. If using a microwave popcorn popper, follow manufacturer's instructions.

To Use Preset Cooking:

  1. Place food on the turntable and close the door.
  2. Touch the desired food pad.
    The display will show first programmed serving size. Touch the pad again to change quantity. See chart for available serving sizes.
  3. Touch START.
    The display will count down the cook time.
    When the cycle ends, "END" will appear in the display, and the end-of-cycle tones will sound.
  4. Touch CANCEL or open the door to clear the display.

Defrost

The automatic Defrost feature can be used or the microwave oven can be manually set to defrost.

  • Unwrap foods and remove lids (for example, from fruit juice containers) before defrosting.
  • Shallow packages will defrost more quickly than deep blocks.
  • Separate food pieces as soon as possible during or at the end of the cycle for more even defrosting.
  • Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips and fish tails. See "Aluminum Foil and Metal" first.

The Defrost feature uses weight input. It should not be used for food that has been left outside the freezer for more than 20 minutes, or for frozen ready-made food.

To Use Defrost:

  1. Place food, uncovered, on the turntable and close the door.
  2. Touch DEFROST.
  3. Enter the weight in pounds and tenths of a pound. Two digits must be used. (For example, enter "05" for 0.5 lb, or "43" for 4.3 lbs.)
    Weight can be set from 0.1 lb to 6.5 lbs (45 g to 2.9 kg).
  4. Touch START.
    The display will count down the defrost time.
    During defrosting, 5 tones will sound. These tones indicate it is time to check, turn, rearrange, or separate food. Open door, turn food if necessary, close door, and touch START to resume defrosting.
    When the cycle ends, "END" will appear in the display, and the end-of-cycle tones will sound.
  5. Touch CANCEL or open the door to clear the display.
    To Defrost Manually: Follow direction in "Manual Cooking" section, and use 30% cooking power. See "Microwave Cooking Power" chart.

MICROWAVE OVEN CARE

General Cleaning


Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on cleaning products.

Soap, water and a soft cloth or sponge are suggested unless otherwise noted.

MICROWAVE OVEN CAVITY

To avoid damage to the microwave oven cavity, do not use soapfilled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths or some recycled paper towels.
The area where the microwave oven door and frame touch when closed should be kept clean.

Average soil

  • Mild, nonabrasive soaps and detergents:
    Rinse with clean water and dry with soft, lint-free cloth.

Heavy soil

  • Mild, nonabrasive soaps and detergents:
    Heat 1 cup (250 mL) of water for 2 to 5 minutes in microwave oven. Steam will soften soil. Rinse with clean water and dry with soft, lint-free cloth.

Odors

  • Lemon juice or vinegar:
    Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either lemon juice or vinegar for 2 to 5 minutes in microwave oven.

Microwave Inlet Cover
To avoid arcing and microwave oven damage, the microwave inlet cover (see "Parts and Features") should be kept clean.

  • Wipe with wet cloth.

MICROWAVE OVEN DOOR AND EXTERIOR

The area where the microwave oven door and frame touch when closed should be kept clean.

  • Mild, nonabrasive soaps and detergents:
    Rinse with clean water and dry with soft, lint-free cloth.
  • Glass cleaner and paper towels or nonabrasive plastic scrubbing pad:
    Apply glass cleaner to towel, not directly to surface.

CONTROL PANEL

  • Sponge or soft cloth and water:
    Dampen sponge with water and wipe panel. Dry with soft cloth.
  • To avoid damage to the control panel, do not use chemical or abrasive cleansers.

TURNTABLE

Replace turntable immediately after cleaning. Do not operate the microwave oven without the turntable in place.

  • Mild cleanser and scouring pad
  • Dishwasher

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

Nothing will operate

  • Has a household fuse blown, or has a circuit breaker tripped?
    Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.

Microwave oven will not operate

  • Is the magnetron working properly?
    Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does not heat, try the steps in the bullets below. If microwave oven still does not operate, call for service. See "Assistance or Service" section.
  • Is the door completely closed?
    Firmly close door.
  • Is a packaging spacer (on some models) attached to the inside of the door?
    Remove packaging spacer, then firmly close door.
  • Is the electronic microwave oven control set correctly?
    See "Microwave Oven Control" section.
  • Is the Control Lock set?
    See "Control Lock" section.
  • Does "DOOR" appear in the display?
    Open and close the microwave oven door, and then touch START. See "Start" section.

Microwave oven makes humming noise

  • This is normal and occurs when the power supply in the magnetron cycles on.

Microwave oven door looks wavy

  • This is normal and will not affect performance.

Turntable will not operate

  • Is the turntable properly in place?
    Make sure turntable is correct side up and is sitting securely on the turntable support. See "Turntable" section.
  • Is the turntable support operating properly?
    Remove turntable. Remove and clean turntable support and rollers. Replace turntable. Place 1 cup (250 mL) of water on the turntable, then restart microwave oven. If it still is not working, call for service. See "Assistance or Service" section. Do not operate the microwave oven without turntable and turntable support working properly.

Turntable alternates rotation directions

  • This is normal and depends on motor rotation at beginning of cycle.

Display shows messages

  • Is the display showing ":"?
    There has been a power failure, or the Clock time has been turned off. See "Display" section to clear display. See "Clock" section to reset or turn on Clock.

Display shows time countdown, but the microwave oven is not operating

Is the Timer in use?
See "Timer" section.

Cooking times seem too long

  • Is the cooking power set properly?
    See "Microwave Cooking Power" section.
  • Are large amounts of food being heated?
    Larger amounts of food need longer cooking times.
  • Is the incoming voltage less than that specified in "Electrical Requirements?"
    Have a qualified electrician check the electrical system in the home.

Interference with radio, TV, cordless phone, etc.

  • Is the microwave oven plugged into the same outlet?
    Try a different outlet for the electronic device.
  • Is the radio or TV receiver near the microwave oven?
    Move the receiver away from the microwave oven, or adjust the radio or TV antenna.
  • Are the microwave oven door and sealing surfaces clean?
    Make sure these areas are clean.
  • Is the cordless phone frequency 2.4 GHz?
    Some 2.4 GHz-based cordless phones and home wireless networks may experience static or noise while the microwave oven is on. Use a corded phone or a different frequency cordless phone, or avoid using these items during microwave oven operation.

ASSISTANCE OR SERVICE

If you need replacement parts
If you need to order replacement parts, we recommend that you use only FSP® replacement parts. FSP® replacement parts will fit right and work right because they are made with the same precision used to build every new WHIRLPOOL® appliance.
To locate FSP® replacement parts in your area, call us or your nearest Whirlpool designated service center.

In the U.S.A.

Call the Whirlpool Customer eXperience Center toll free:
1-800-253-1301 or visit our website at www.whirlpool.com.
Our consultants provide assistance with:

  • Scheduling of service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.
  • Features and specifications on our full line of appliances.
  • Referrals to local dealers.
  • Installation information.
  • Use and maintenance procedures.
  • Accessory and repair parts sales.
  • Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For further assistance
If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at:
Whirlpool Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada LP Customer eXperience Centre toll free: 1-800-807-6777 or visit our webpage www.whirlpool.ca.

Our consultants provide assistance with:

  • Scheduling of service. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.
  • Features and specifications on our full line of appliances.
  • Referrals to local Whirlpool dealers.
  • Use and maintenance procedures.
  • Accessory and repair parts sales.
  • Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance
If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at:
Whirlpool Brand Home Appliances
Customer eXperience Centre Whirlpool Canada LP 200 - 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Please include a daytime phone number in your correspondence.

Replacement Parts

Glass Turntable: Part Number W10315165
Turntable Support/Roller Assembly: Part Number W10315166

Cleaning Supplies
affresh® Kitchen Appliance Cleaner: Part Number W10355010
Heavy Duty Degreaser: Part Number 31552A

MICROWAVE OVEN SAFETY

Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

warningThis is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:


You can be killed or seriously injured if you don't immediately follow instructions.


You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:


To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

  • Read all instructions before using the microwave oven.
  • Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found in this section.
  • The microwave oven must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found in the "INSTALLATION INSTRUCTIONS" section.
  • Install or locate the microwave oven only in accordance with the provided Installation Instructions.
  • Some products such as whole eggs in the shell and sealed containers - for example, closed glass jars - are able to explode and should not be heated in the microwave oven.
  • Use the microwave oven only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
  • As with any appliance, close supervision is necessary when used by children.
  • Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
  • The microwave oven should be serviced only by qualified service personnel. Call an authorized service company for examination, repair, or adjustment.
  • Do not cover or block any openings on the microwave oven.
  • Do not store this microwave oven outdoors. Do not use the microwave oven near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
  • Do not immerse cord or plug in water.
  • Keep cord away from heated surfaces.
  • Do not let cord hang over edge of table or counter.
  • See door surface cleaning instructions in the "Microwave Oven Care" section.
  • To reduce the risk of fire in the oven cavity:
    • Do not overcook food. Carefully attend the microwave oven when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
    • Remove wire twist-ties from paper or plastic bags before placing bags in oven.
    • If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
    • Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
  • Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

    To reduce the risk of injury to persons:
    • Do not overheat the liquid.
    • Stir the liquid both before and halfway through heating it.
    • Do not use straight-sided containers with narrow necks.
    • After heating, allow the container to stand in the microwave oven for a short time before removing the container.
    • Use extreme care when inserting a spoon or other utensil into the container.
  • Do not operate any heating or cooking appliance beneath the microwave oven.
  • Do not mount microwave oven over or near any portion of a heating or cooking appliance.
  • Do not mount over a sink.
  • Do not store anything directly on top of the microwave oven when the microwave oven is in operation.

SAVE THESE INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

  1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
  2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
  3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:
    1. Door (bent),
    2. Hinges and latches (broken or loosened),
    3. Door seals and sealing surfaces.
  4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

State of California Proposition 65 Warnings:

  • This product contains one or more chemicals known to the State of California to cause cancer.
  • This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

For questions about features, operation/performance, parts, accessories or service, call:
1-800-253-1301.
In Canada, call: 1-800-807-6777 or visit our website at
www.whirlpool.com or www.whirlpool.ca

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Whirlpool WMC10007AB - 0.7 cu. ft. Countertop Microwave with Electronic Touch Controls Manual

Advertisement

Need Assistance?

Do you have a question about the WMC10007AB that isn't answered in the manual? Leave your question here.

Error while submitting your question. Please, reload page and try again.

Thank you! Your question has been received!

Table of Contents
