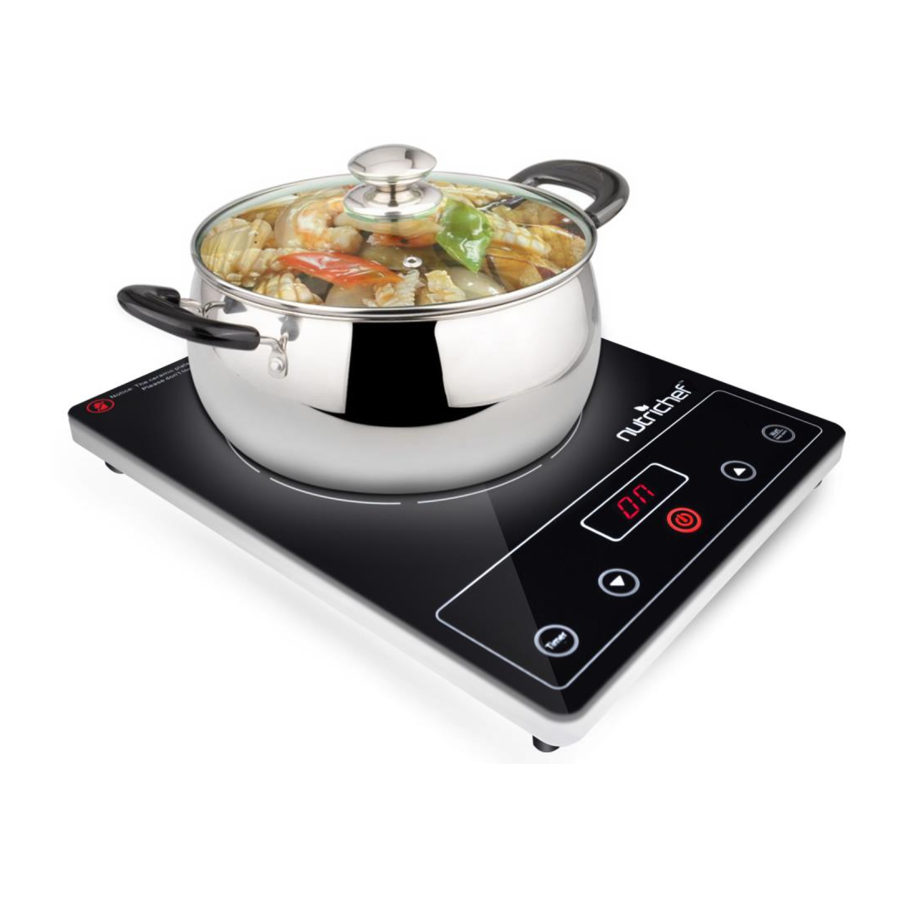

NUTRICHEF PYLE PKST14, PKST16, PKST18 - Ceramic Cooker Manual

OVERVIEW

CONTROL PANEL

NOTE: This drawing is for illustration purpose only. The actual control panel may look slightly different. However, the functions & usage remain the same.

HOW TO USE

	Press the master ON/OFF button.
	After the ceramic cooker is powered on, press the function button to select your preferred cooking needs. Once selected, the cooker will start working until preset time expired.
	The Timer function works in manual and automatic functions (Steamboat, BBQ, Fry, Water, Soup and Milk). First, select your desired cooking needs by pressing the Function button. Press the Timer/Pre button to trigger Timer mode. Use the + and - buttons to adjust desired time.
	These two buttons are only applicable to manual function (Steamboat, BBQ and Fry) for adjusting heat levels. The adjustable range for: 200-1200W/176°F-1202°F
	Use the + and - buttons to adjust desired time (refer to Timer function). This function is not applicable to automatic settings for milk, soup and water.

MANUAL FUNCTION

PKST16/PKST18 with sensor touch control type, pre-set a flexible function design for your desired cooking needs. After the ceramic cooker power on, press the temp/ watt button to increase/down the power from 200-1200W/176°F-1202°F
Timer: Time and temperature are adjustable according to your preference. The timer can be adjusted up to 240 minutes.

NOTE: This drawing is for illustration purpose only. The actual control panel may look slightly different. However, the functions & usage remain the same.
PKST14 button control type is designed for different cooking function and difference purpose.

MANUAL FUNCTION HOT POT / BBQ / FRY
Press the function button to ignite the LED light. The display on the screen is different for each function. For HOTPOT & BBQ, it will display 1200W and P7 respectively. For FRY function, it will display P7.
Timer: Time and temperature are adjustable according to your preference. The timer can be adjusted up to 240 minutes.

AUTOMATIC FUNCTION

STEAMING/WATER/KEEP WARM
Press the function button to ignite the LED light. The display on the screen is different for each function. For STEAMING, It will display (800W), WATER(1200W) and KEEP WARM P1 Timer: Time and temperature are adjustable according to your preference. The timer can be adjusted up to 240 minutes.

• Turn OFF: After using the cooker, do not unplug it immediately as the fan still needs to be powered on to cool the cooker.
  To turn off cooker, press the ON/OFF button so that it will stop heating. The screen will display"_ _ _ ". The fan will switched off after the cooker has cooled down.
• Do not touch the crystal plate surface immediately after turning off. The surface needs approximately 5 minutes to completely cool down.
• Gently place pots onto the crystal plate to prevent the plate from cracking.

HOW TO CLEAN

1. Disconnect the plug from socket and wait for the unit to cool down completely. Please clean after use for optimum function.
2. Pots/pans that are not clean will cause discoloration and stain the unit.
3. Do not use benzene, thinner, abrasive brush or polishing powder to clean the unit.
4. Wipe using dish washing agent with a damp cloth.
5. Use a vacuum cleaner to remove dirt from the air intake and exhaust vent.
6. Do not run water over the unit as water will seep inside and may cause malfunction.

SPECIFICATION
