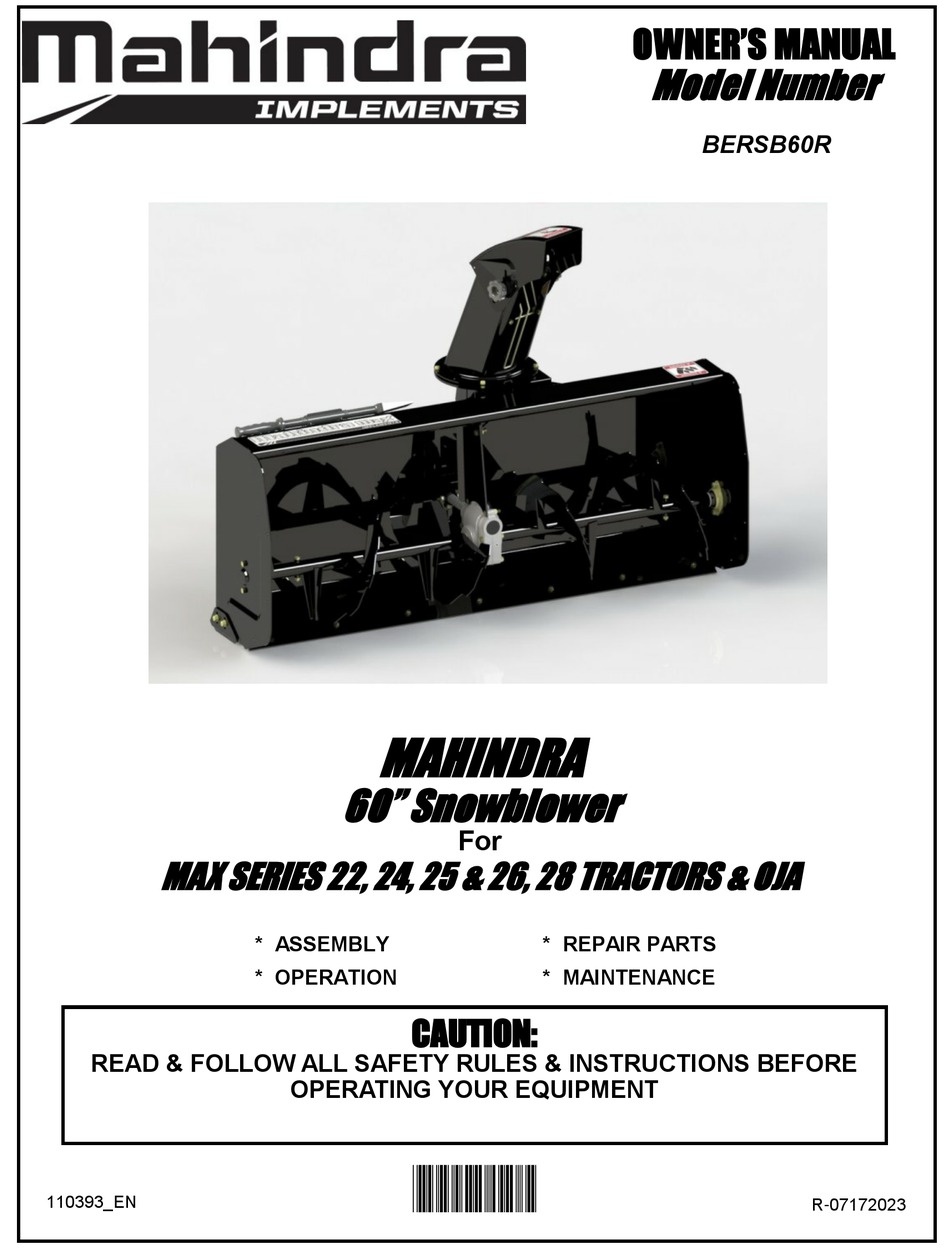

  • Page 1 OWNER’S MANUAL Model Number BERSB60R MAHINDRA 60’’ Snowblower MAX SERIES 22, 24, 25 & 26, 28 TRACTORS & OJA * ASSEMBLY * REPAIR PARTS * OPERATION * MAINTENANCE CAUTION: READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE OPERATING YOUR EQUIPMENT...
  • Page 2 Instructions for Obtaining Warranty Services: Contact the Mahindra dealer where equipment was purchased or any other Mahindra service dealer to arrange service at their dealership. To locate a dealer convenient to you, access our website at Don't forget to bring your proof of purchase (sales receipt) to the Mahindra dealer.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PAGE INTRODUCTION ..............................SAFETY PRECAUTIONS ............................SAFETY DECALS ..............................ASSEMBLY Step 1 Snowblower Preparation ......................Step 2: Snowblower Installation ........................ OPERATION Snowblower Operation ..........................Controls ............................... Snow Removal ............................MAINTENANCE Adjustments ..............................Lubrication ..............................Shear Bolt Replacement ..........................Belt Replacement ............................

  • Page 4: Introduction

    INTRODUCTION TO THE PURCHASER This new accessory was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but are intended for reference only and are based on the latest product information available at the time of publication.
  • Page 5 SAFETY PRECAUTIONS Careful operation is your best insurance against an accident. Read this section carefully before operating the vehicle and accessory. This accessory is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury. All operators, no matter how experienced they may be, should read this and other manuals related to the vehicle and accessory before operating.

  • Page 6: Safety Precautions

    SAFETY PRECAUTIONS OPERATION: MAINTENANCE AND STORAGE Do not put hands or feet near, under or inside rotating parts. When cleaning, repairing or inspecting the vehicle and accessory: stop the engine, set brake, remove Exercise extreme caution when operating on or ignition key, and wait that all moving parts have crossing gravel drives, walks or roads.

  • Page 7: Safety Decals

    SAFETY DECALS REPLACE IF DECALS ARE DAMAGED SEE PARTS BREAKDOWN FOR DECAL LOCATION Symbol Description Decal #105126 To avoid serious injury: Keep hands, feet & clothing away from rotating auger while the vehicle’s engine is running. Decal #105127 To avoid serious injury: Keep hands out of this discharge chute while the vehicle’s engine is running.

  • Page 8: Assembly

    ASSEMBLY ASSEMBLY INSTRUCTIONS IMPORTANT: UNLESS OTHERWISE SPECIFIED TORQUE ALL BOLTS ACCORDING TO TORQUE SPECI- FICATION TABLE (SEE TABLE OF CONTENTS) WHEN STATED: TIGHTEN FIRMLY. REFER TO PARTS BREAKDOWN SECTION FOR PART IDENTIFICATION. NOTE: In this manual, the right and left side is determined by sitting on the seat of the vehicle facing toward. WARNING Remove the snowblower from the shipping crate.

  • Page 9: Step 1 Snowblower Preparation

    ASSEMBLY ASSEMBLY STEP 1 SNOWBLOWER PREPARATION: Refer to parts breakdown section for parts identification. Loosen the tensioner (item 1) of the hydraulic motor. Install the metal rotation ring (item 2) over the opening of the chute as shown. Install the nylon rotation ring (item 3) over the opening of the chute as shown.

  • Page 10: Step 2: Snowblower Installation

    ASSEMBLY ASSEMBLY NOTE: Lower the parking stand (item 1) with your foot. Turn the snowblower face down. Take care to avoid being pinched by the parking stand. Insert the key (item 2) in the half drive line (item 3) as shown.
  • Page 11 ASSEMBLY Swing the parking stand (item 1) towards the snowblower and unite the half driveline (item 2) to the shaft (item 3). Connect the flexible hoses for the snowblower’s chute rotation to the vehicle’s hydraulic system taking care to thread them through the hose support on the side of the vehicle.

  • Page 12: Operation

    Read the tractor Owner’s Manual carefully. Be operate the snowblower, blade or broom for the thoroughly familiar with the controls & proper Max series Mahindra tractors. use of the attachment. Know how to stop the attachment & disengage the controls quickly NOTE: To increase the life span of the components, always disengage the snowblower when it is raised.

  • Page 13: Maintenance

    MAINTENANCE MAINTENANCE AUGERS SHEAR BOLT WARNING REPLACEMENT TO PREVENT INJURIES: Shear bolts are to be considered a preventive Stop the snowblower motor. measure and not an assured protection. Operator Apply parking brake. vigilance is required. Thoroughly inspect the areas Remove the ignition key. where the snowblower is to be used and remove all foreign objects.

  • Page 14: Belt Replacement

    MAINTENANCE WARNING TO PREVENT INJURIES: Park the vehicle on a flat surface outside in a well ventilated area. Disengage the P.T. O. Lower the attachment to the ground. Apply parking brake. Stop the motor and remove the ignition key. Wait until all moving parts have stopped before leaving the driver’s seat.

  • Page 15: Dismounting & Storage

    DISMOUNTING & STORAGE SNOWBLOWER DISMOUNTING END OF SEASON STORAGE a) Clean thoroughly and repaint all parts from which WARNING paint has worn. b) List the replacement parts that will be needed for the next season. TO PREVENT INJURIES: c) Store the components in a dry place. Park the vehicle on a flat surface in a well ventilated d) Follow the instructions in the Lubrication section.

  • Page 16: Troubleshooting

    TROUBLESHOOTING * Please refer to parts breakdown section for parts identification. PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Snowblower vibrates or is Damaged pulley. Replace pulley. abnormally noisy. Damaged drive shaft. Replace drive shaft. Damaged bearing. Replace bearing. Damaged fan. Dismount & repair or replace fan. Driveline is not well installed.

  • Page 17: Parts Breakdown And Parts List

    BERSB60R BERSB60R...
  • Page 18 BERSB60R BERSB60R...
  • Page 25 NOMENCLATURE ET LISTE DE PIÈCES / PARTS BREAKDOWN & PARTS LIST...
  • Page 26 NOMENCLATURE ET LISTE DE PIÈCES / PARTS BREAKDOWN & PARTS LIST...

  • Page 29: Torque Specification Table

    TORQUE SPECIFICATION TABLE GENERAL TORQUE SPECIFICATION TABLE USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal oil. They do not apply if special graphited or moly disulphide greases or other extreme pressure lubricants are used. This applies to both UNF and UNC threads.
