Data Technology 5150XL Installation Manual

•
DATA TECHNOLOGY
p
c
o
R
o
R A
T
o
N
I

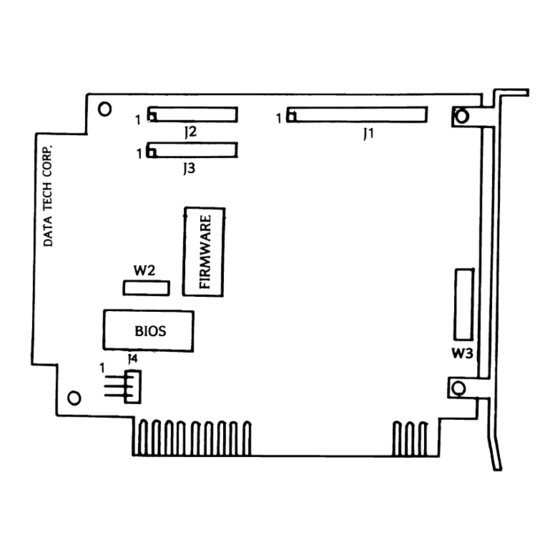

5150XL DISK CONTROLLER
INSTALLATION GUIDE

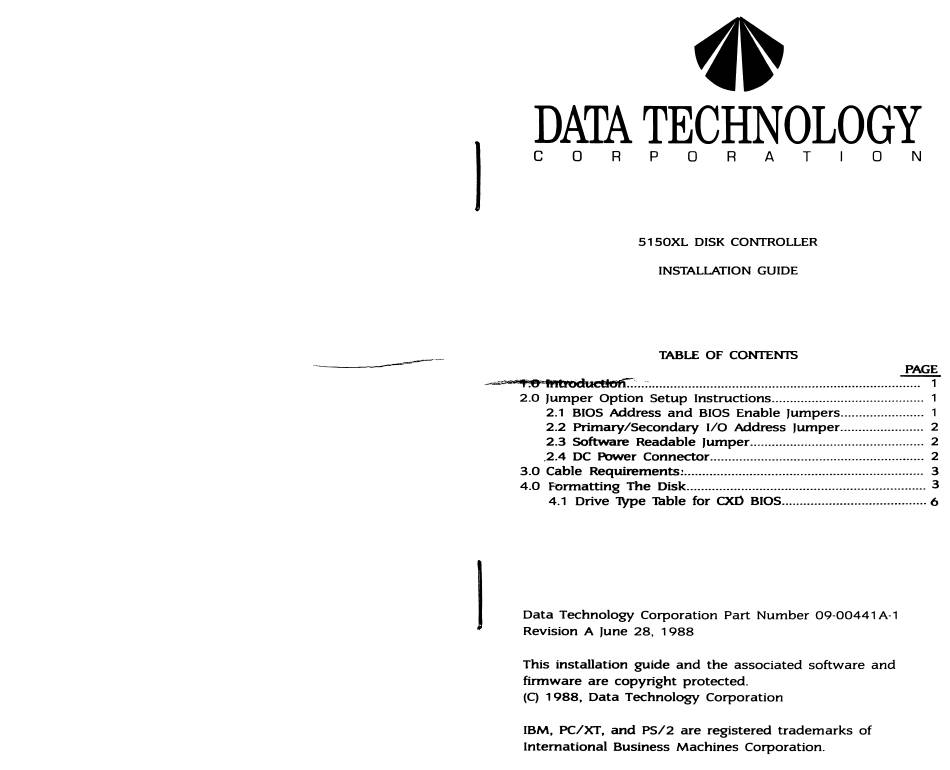

TABLE OF CONTENTS
PAGE
-'~: .. :' ..................................................................... ~
2.0 Jumper Option Setup Instructions ......................................... .
2.1 BIOS Address and BIOS Enable Jumpers ....................... 1
2.2 Primary/Secondary I/O Address Jumper....................... 2
2.3 Software Readable Jumper................................................ 2
.2.4 DC POwer Connector.. ......................................................... 2
3.0 Cable Requirements'.................................................................. 3
4.0 formatting The Disk.................................................................. 3
4.1 Drive"JYpe lllble for CXO BIOS ........................................ 6
Data Technology Corporation Part Number 09·00441 A 1
Revision A June 28, 1 988
This installation guide and the associated software and
firmware are copyright protected.
(C) 1 988, Data Technology Corporation
IBM, PC/XT, and PS/2 are registered trademarks of
International Business Machines Corporation.
I
