Summary of Contents for Nordic POWER STATION 1500

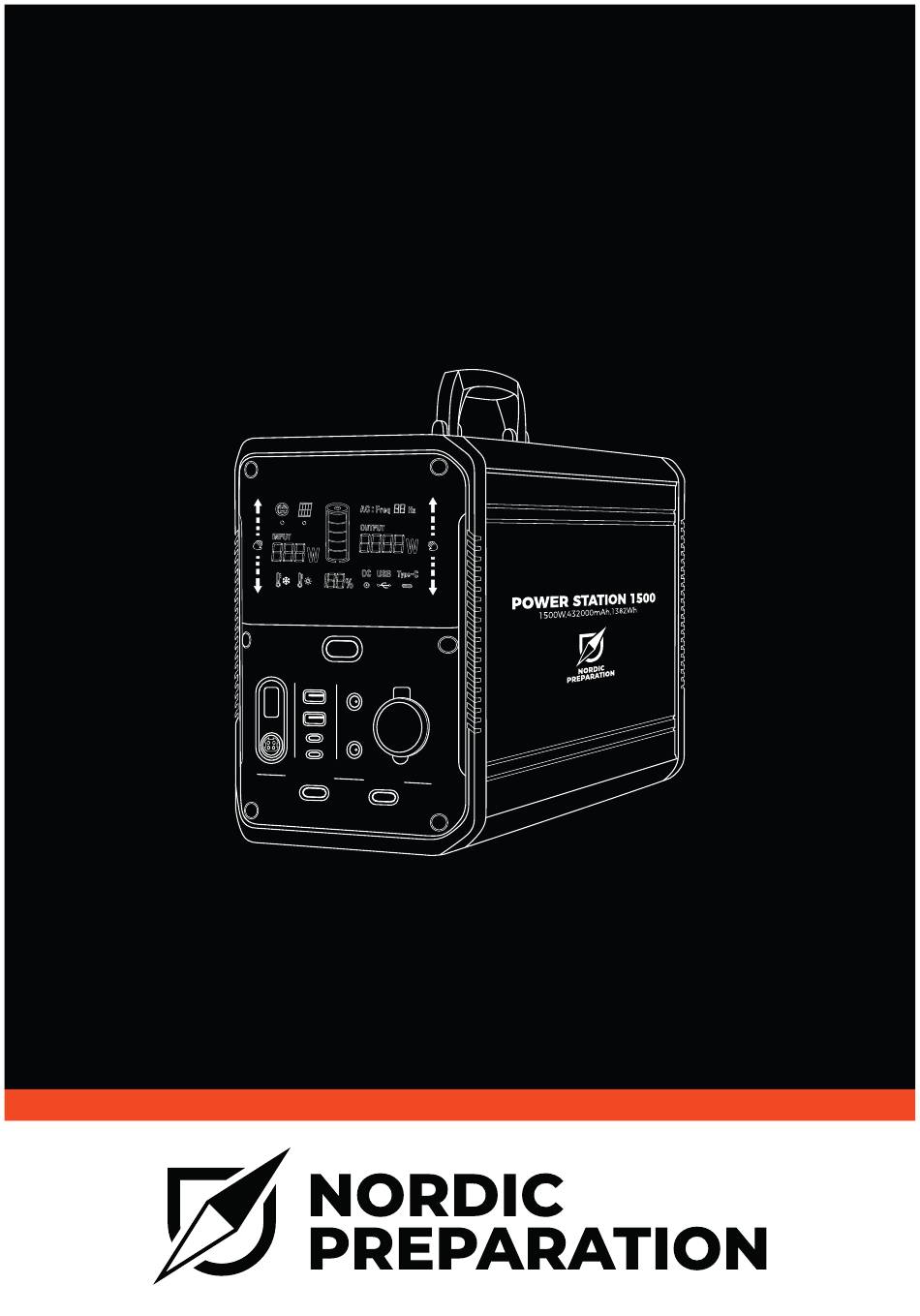

Page 1 POWER STATION 1500 KRAFTSTATION 1500 W MANUAL...
Page 2 SKU: NP 50001401 MG BARCODE GTIN 13: 7350143120138 NORDIC PREPARATION AB ORG.NR: 559375 7031 www.nordicpreparation.com info@nordicpreparation.com...
Page 3 Warning: Please read and understand the contents of this manual carefully before using this product, and operate and use it in strict accordance with the instructions, to avoid damage to the product or external devices and equipment caused by improper use, and may cause personal injury in severe cases.
Page 4: Table Of Contents
Overview Overview Product Introduction Product Parameters Operation Instructions Charging while Discharging Applicable equipment/Approximate usage time Temperature Control System Troubleshooting Cautions Product Liability Exemption Warranty Säkerhetsanvisningar på svenska...
Page 5: Product Introduction
1. Product Introduction Nordic Preparation’s Power station 1500 is a portable power station, which is composed of lithium iron phosphate (LiFePO 4 battery) battery pack, BMS battery management system, inverter module, DC control module, and shell (high-strength aluminum alloy shell and ﬂame resistantplastic shell).
Page 6: Product Parameters
2. Product Parameters 1. Input voltage/current 1.1 AC adapter input: 6.7A (max) 1.2 Solar panel input: 18V~80V 500W (max) 1.3 Fully charging time: 7~8 hours 2. DC output 2.1 USB-A (1) output: 5V 3A 9V 2A 12V 1.5A 2.2 USB-A (2) output: 5V 3A 9V 3A 12V 3A 20V 3A 2.3 USB-C (1) output: 5V 3A 9V 3A 12V 3A 15V 3A 20V 3A...
Page 7: Operation Instructions
3. Operation Instructions 3.1 When you use this machine for the ﬁrst time, please check the power status. If the power is less than 20%, it is recommended that you charge the machine before using it. You can charge it through AC adapter, solar panel or car charger adapter (Refer to 3.4 for charging method).
Page 8 ②. Click any button of this machine to turn on the night vision system: 3.3.2 After the night vision system is turned on, the night vision indicator of each interface will be on. If the power equipment is not connected and the output is turned on, the night vision indicator will be automatically turned off after 30 seconds.
Page 9 3.4.2 This machine supports simultaneous charging of solar panels and AC adapter/car charger adapter. The total charging power can be checked on the display screen. The battery capacity is displayed as 1%-100%. Adapter charging: Solar charging: Car adapter charging: 3.5 AC Output: 3.5.1 AC output frequency switching: The AC output frequency of each country is divided into 50Hz and 60Hz.
Page 10 ③. Click the AC ON/OFF button again to turn on the AC output, and the frequency switch is successful. Note: The default AC output is 230V 50HZ before leaving the factory, please conﬁrm that the AC output frequency matches with electric equipment before use.
Page 11 3.5.3 Abnormal AC Output: During AC output, if there are abnormal conditions such as overload, short circuit, over-temperature, etc., the protection mode will be activated and the output will stop, and the “AC” icon in the display will ﬂash. At this time, you need to remove the abnormal condition and then click AC ON/OFF to restart the AC output, AC output can work normally.
Page 12: Charging While Discharging
Car refrigerator LED Light 4. Charging while Discharging 4.1 This machine supports charging and discharging function. When the input power is lower than the output power, the internal battery capacity will gradually decrease to a low power state. If you continue to use it, it may stop the output.
Page 13: Temperature Control System
6. Temperature Control System 6.1. This product has a built-in intelligent temperature control system. When the internal temperature of the product is higher than 45°C, the cooling fan will automatically turn on, and when the internal temperature of the product drops below 45°C, it will automatically turn off.
Page 14: Cautions
8. Cautions 1. Please do not store or use this unit in humidity areas to avoid short circuit or damage the unit. 2. Please store or use this product in the required temperature and humidity environment. 3. This item is built-in battery. Please do not squeeze or crash unit violently or it would cause a ﬁre.
Page 15: Warranty
6. Håll enheten borta från barn. Undantag från produktansvar 1. Nordic Preparation (nedan “NP”) är inte ansvariga för en försämring av funktionaliteten som orsakats av felaktig användning av produkten av NP:s kunder eller tredje parter, med undantag för juridiskt ansvar.
Page 16 3. På grund av problem med kompabilitet mellan kraftstationen och andra enheter, såsom extern media, eller om inspelningsenheter inte har lyckats spela in, eller det inspelade innehållet på det externa mediet och inspelningsenheten har skadats eller förlorats, är NP inte ansvariga för ersättning för det inspelade innehållet eller förlusten som uppstår.
Page 17 Pure sine wave Power Station 1500 has pure sine wave, which means that you can use it safely with your other electronical devices (up to 1500W). Kraftstation 1500 W har ren sinusvåg, vilket betyder att du kan använda den säkert med dina övriga elektroniska enheter (upp till 1500 W).
