ABL 0301671 d Quick Start Manual

1V0001 EXTERNAL CONTROL UNIT
Quick Start Guide, current 05/2021, Article number: 0301671_d
Thank you for choosing the 1V0001 external control unit by ABL!
• Please read this quick start guide carefully.
• Please also consider the information and safety notices provided in the installation and operating
manuals for the Wallboxes eMH2 and eMH3 by ABL.

Components included

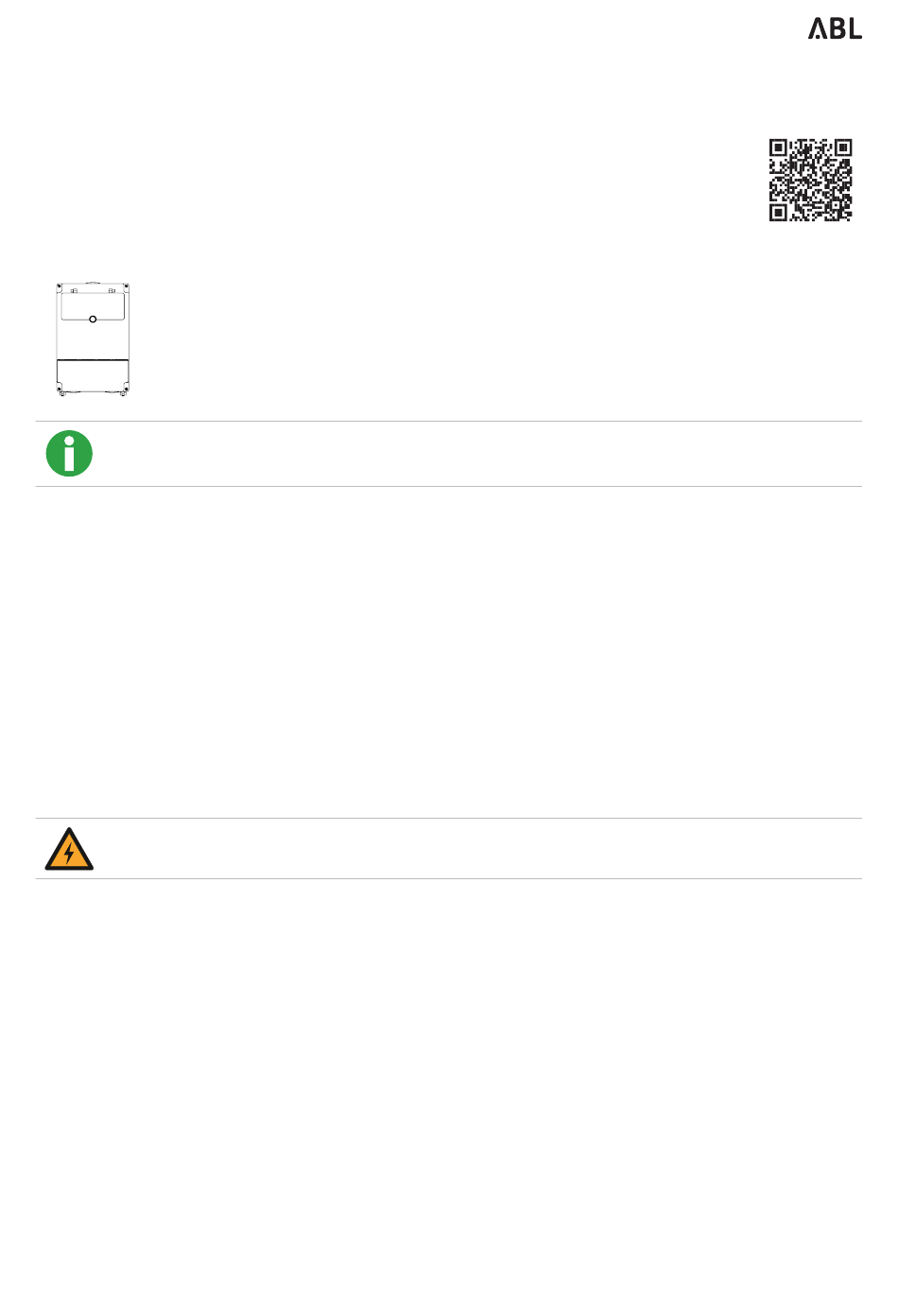

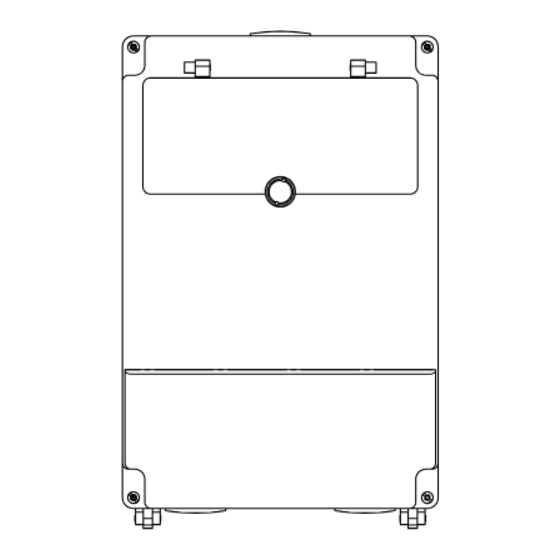

1 x 1V0001 external control unit
The 1V0001 has four pre-drilled holes (∅ 7 mm) for mounting at the installation site. Fasteners (screws, wall
plugs etc.) are not included with the 1V0001. These must be supplied by the installation contractor.

Requirements for the mounting location

The mounting surface
• ...measures at least 320 x 205 mm.
• ...be flat and able to support sufficient weight (weight: ca. 2 kg).
• ...must have a minimum distance of 50 cm in all directions to other electrical consumers.
• ...be located at a distance of at least 20 cm in all directions from other transmitting devices.
• ...must offer a sufficiently dimensioned supply cable for connection to the electricity grid.
• ...must offer a data cable (twisted pair, at least CAT5 or above) for connecting the external extender wallboxes.

Installing and connecting the 1V0001

During the installation, the circuit breaker for the supply line must be switched off in the house distribution.
Tools and materials required: Pencil, spirit level, fasteners (screws/wall plugs, 4 each), Pozidriv screwdriver,
M32 cable gland with strain relief, power drill, drill bits, cable cutter, wire stripper, crimping tool
Place the 1V0001 control unit on a level work surface.
1
Loosen the knurled screw on the housing cover and open the cover flap.
2
Flip the pivot levers of the internal MCB and RCCB to the 0 position.
3
Close the cover flap and secure it using the knurled screw.
4
Remove the 4 Phillips head screws in the corners of the housing cover and flip back the housing cover. Keep the
5
screws in a safe place (tool: Pozidriv screwdriver).
Place the housing base in the mounting position and align it vertically (tool: spirit level)
6
With the unit in mounting position, mark the (4) fixing points through the pre-drilled holes in the housing base (tool:
7
pencil)
Drill the marked mounting points (tool: power drill, drill bit)
8
