Ultralift E Lifting Magnet
Safe Operation and Maintenance Manual
Anvisninger for bruk og vedlikehold
Ultralift E Lyftmagnet
Handbok för säker användning och underhåll
Ultralift E Magneetin nostaminen turvallisella tavalla
Käyttö- ja huolto-ohje
ウルトラリフトE リフティングマグネット
安全な操作とメンテナンスのためのマニュアル
Eclipse Magnetics. Innovative Magnetic Solutions
Advertisement
Table of Contents
Related Manuals for Eclipse Magnetics Ultralift E ULE0100
Summary of Contents for Eclipse Magnetics Ultralift E ULE0100

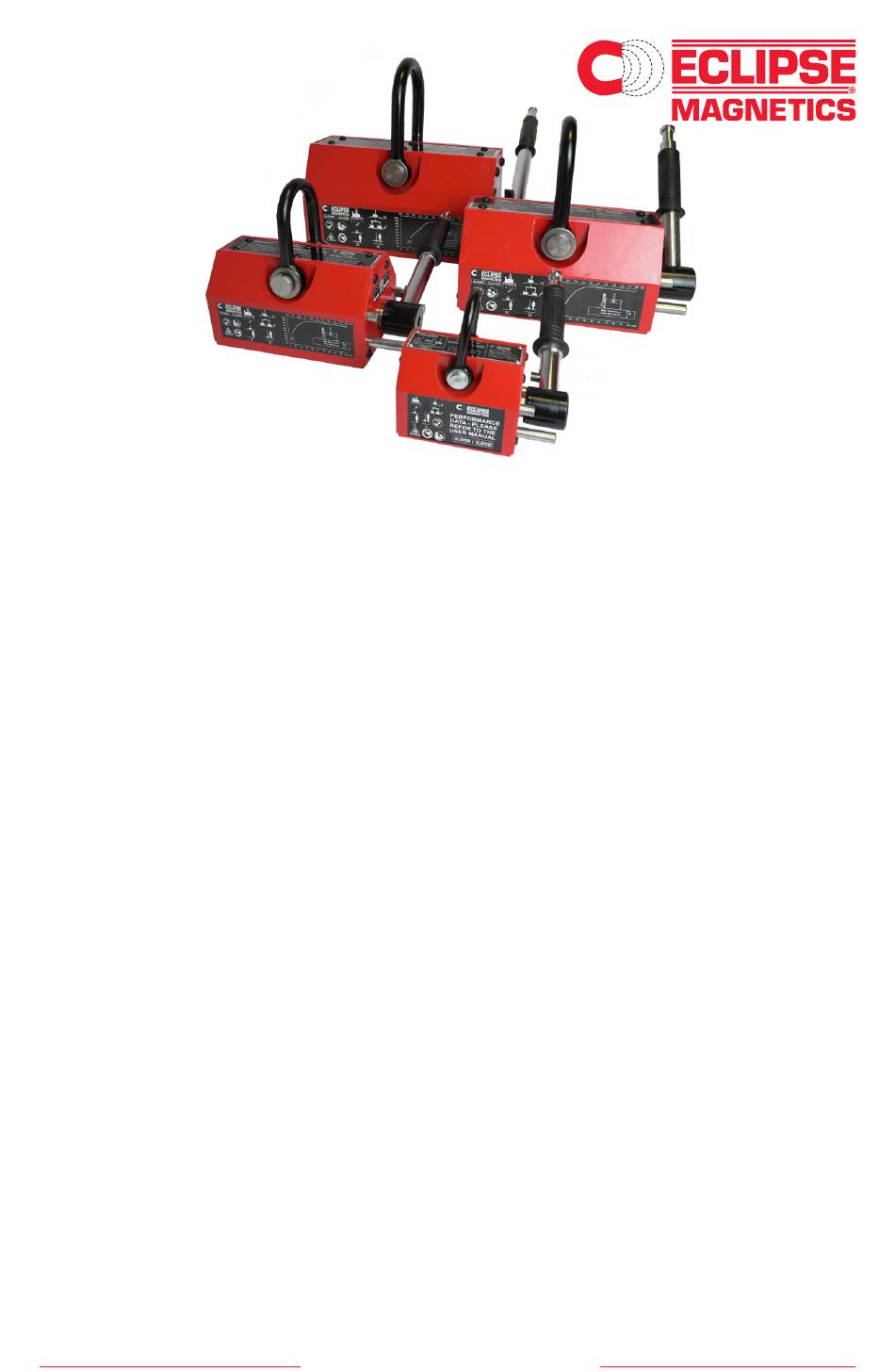

- Page 1 Ultralift E Lifting Magnet Safe Operation and Maintenance Manual Anvisninger for bruk og vedlikehold Ultralift E Lyftmagnet Handbok för säker användning och underhåll Ultralift E Magneetin nostaminen turvallisella tavalla Käyttö- ja huolto-ohje ウルトラリフトE リフティングマグネット 安全な操作とメンテナンスのためのマニュアル Eclipse Magnetics. Innovative Magnetic Solutions...
-
Page 2: Table Of Contents
2.2 Important Safety Information 2.3 Considerations for Use 3 Getting Started 3.1 Understanding Your Lifter 4 Technical Data 4.1 Model Types 4.2 Performance Curves 5 Periodic Inspection 6 Warranty 7 Inspection Record Declaration of Conformity - UKCA Eclipse Magnetics. Innovative Magnetic Solutions... -
Page 3: General Information
If you’ve printed a copy of the user manual please include it with the lifter. The lifter should be periodically re-tested in accordance with local legislation and the inspection record updated accordingly (See Section 7). Always use LOLER, PUWER, ASME B30.20 and H&S advice. Eclipse Magnetics. Innovative Magnetic Solutions... -
Page 4: Operation And Safety Instructions
The two parallel mild steel surfaces on the base of the lifter. Air-gap Any non-ferrous material that prevents the poles contacting the load. Paint, rust, scale or even an uneven surface can constitute an air-gap. Eclipse Magnetics. Innovative Magnetic Solutions... -
Page 5: Important Safety Information
• Operate the lifter in temperatures higher than 40°C (104°F) and lower than -10°C (14°F) • Operate the lifter in humidity higher than 80% • Operate the lifter in explosive (EX) or static sensitive environment • Submerse the lifter in water Eclipse Magnetics. Innovative Magnetic Solutions... -
Page 6: Considerations For Use
High carbon steel 0.55 Cast iron For example, when lifting cast iron using ULE0300 lifter: mild steel WLL = 300kg cast iron reduction factor = 0.55 cast iron WLL = 300kg x 0.55 = 165kg Eclipse Magnetics. Innovative Magnetic Solutions... - Page 7 If the full face of the poles does not come into contact with the component to be lifted, for instance due to holes in the component, the performance will be reduced pro-rata. Eclipse Magnetics. Innovative Magnetic Solutions...
-
Page 8: Getting Started
The lifter is in the ON position To switch the lifter OFF Hold the handle and slide the locking pin (as illustrated) to allow an unobstructed rotation of the handle. Rotate the handle 120˚ clockwise to the OFF Position. Eclipse Magnetics. Innovative Magnetic Solutions... -
Page 9: Technical Data
You must follow LOLER, PUWER, ASME B30.20 and H&S advice. You should always check for a downrate, factor in any downrate to then perform a safety lift, then perform a full lift only after a successful safety lift. Eclipse Magnetics. Innovative Magnetic Solutions... -
Page 10: Performance Curves
≥45mm DATA GRAPH (≥1.77”) (2200lb) varies with material. (lb) ∆ mm 100% ULE0300 / ULE0660 300kg (660lb) 1000kg WLL VS THICKNESS (T) ≥45mm (2200lb) (≥1.77”) DATA GRAPH (lb) Note:- Performance varies with material. T mm Eclipse Magnetics. Innovative Magnetic Solutions... - Page 11 (lb) DATA GRAPH Note:- Performance varies with material. T mm 100% ULE0600 / ULE01320 600kg (1320lb) Note:- Performance 1000kg ≥45mm WLL VS AIRGAP ( ) (≥1.77”) (2200lb) varies with material. (lb) DATA GRAPH ∆ mm Eclipse Magnetics. Innovative Magnetic Solutions...
- Page 12 (lb) DATA GRAPH Note:- Performance varies with material. T mm 100% ULE1000 / ULE2200 1000kg (2200lb) 1000kg ≥45mm WLL VS AIRGAP ( ) (≥1.77”) (2200lb) Note:- Performance (lb) varies with material. DATA GRAPH ∆ mm Eclipse Magnetics. Innovative Magnetic Solutions...
-
Page 13: Periodic Inspection
This Lifting Magnet should be re-certified in accordance with the requirements of PUWER (1998) and LOLER (1998). For areas outside the EU this Lifting Magnet must be inspected in compliance with the applicable work standards and other standards for suspended load handling (eg. ASME B30.20). Eclipse Magnetics. Innovative Magnetic Solutions... -
Page 14: Declaration Of Conformity - Ukca
EN ISO 12100:2010, EN ISO 13854:2019, EN 13155:2020. The specific technical documentation, in accordance with Appendix VII A, has been written and is available. The documentation will be transmitted to a reasoned request by national authorities. Sheffield, 21.03.2022 Andrew Reeve Operations Director Eclipse Magnetics. Innovative Magnetic Solutions...
