Attaching the AM-270 to the Guardian

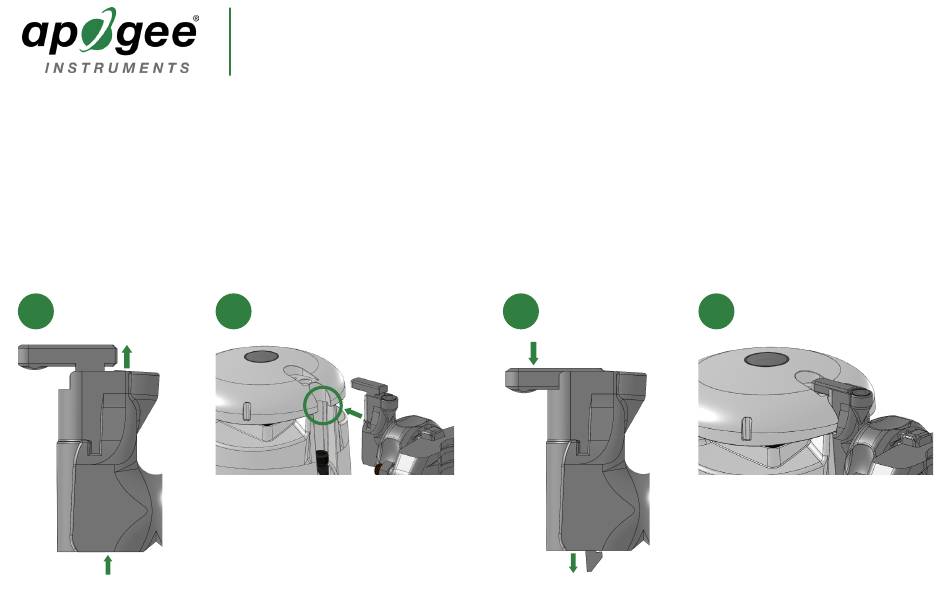

1. Press the lever on the bottom of the AM-270 straight up with your thumb to unlock the arm of the bracket. Bracket is in the
unlocked position when the arm raises and the lever disappears into the body.
2. With the AM-270 in the unlocked position, attach the arm to the back of the Guardian. The grooves on the bracket should slot into
the teeth on the lower ridge of the Guardian.
3. Press straight down on the arm to lock the bracket onto the Guardian. Bracket is in the locked position when the arm is flush to the
body and the lever appears again.
4. After the bracket is locked onto the Guardian, it is ready to be mounted. To adjust the sensor orientation, see the other side.
1
Arm
Lever
To learn more about the Guardian, visit www.apogeeinstruments.com/guardian-cea-multi-sensor-monitor/.
AM-270 Guardian Bracket Quickstart Guide
2
Teeth
3
Arm
Lever
4
Advertisement
Table of Contents
Summary of Contents for Apogee AM-270
- Page 1 Attaching the AM-270 to the Guardian 1. Press the lever on the bottom of the AM-270 straight up with your thumb to unlock the arm of the bracket. Bracket is in the unlocked position when the arm raises and the lever disappears into the body.
- Page 2 4. Twist the the wheel clockwise to the desired tightness to return to the locked position. 5. Mount the bracket and Guardian to a pole or cross arm using the u-bolt. Button AM-270 webpage Guardian webpage To access full product manuals, visit https:/ /www.apogeeinstruments.com/ Wheel...
